GFS sfc_sice Module

This is three-layer thermodynomics sea-ice model based on Winton (2000) [204]. More...

Functions/Subroutines

subroutine sfc_sice::sfc_sice_run (im, kice, sbc, hvap, tgice, cp, eps, epsm1, rvrdm1, grav, t0c, rd, ps, t1, q1, delt, sfcemis, dlwflx, sfcnsw, sfcdsw, srflag, cm, ch, prsl1, prslki, prsik1, prslk1, wind, flag_iter, use_lake_model, lprnt, ipr, thsfc_loc, hice, fice, tice, weasd, tsfc_wat, tprcp, tiice, ep, snwdph, qss_i, qss_w, snowmt, gflux, cmm, chh, evapi, evapw, hflxi, hflxw, islmsk, errmsg, errflg
subroutine ice3lay
 This subroutine is the entity of three-layer sea ice vertical thermodynamics based on Winton(2000) [204] .

Detailed Description

General Algorithm

The model has four prognostic variables: the snow layer thickness \(h_s\), the ice layer thickness \(h_i\), the upper and lower ice layer temperatures located at the midpoints of the layers \(h_i/4\) and \(3h_i/4\) below the ice surface, respectively \(T_1\) and \(T_2\). The temperature of the bottom of the ice is fixed at \(T_f\), the freezing temperature of seawater. The temperature of the top of the ice or snow, \(T_s\), is determined from the surface energy balance. The model consists of a zero-heat-capacity snow layer overlying two equally thick sea ice layers (Figure 1). The upper ice layer has a variable heat capacity to represent brine pockets.

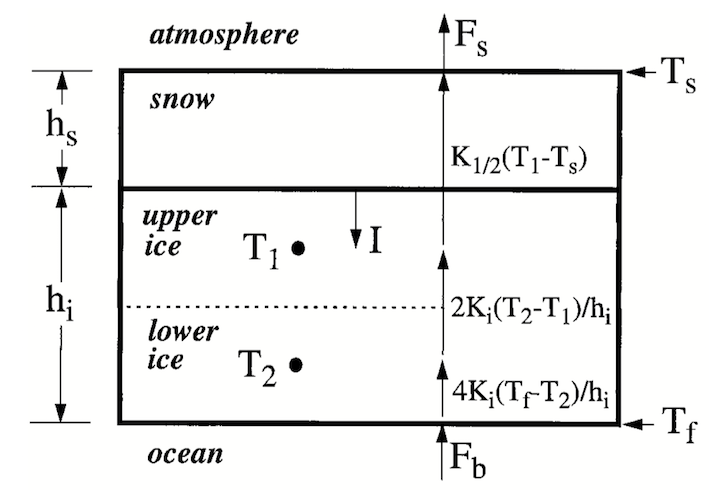

Fig.1 Schematic representation of the three-layer model

The ice model main program ice3lay() performs two functions:

  • Calculation of ice temperature
    The surface temperature is determined from the diagnostic balance between the upward conduction of heat through snow and/or ice and upward flux of heat from the surface.
  • Calculation of ice and snow changes
    In addition to calculating ice temperature changes, the ice model must also readjust the sizes of the snow and ice layers 1) to accommodate mass fluxes at the upper and lower surfaces, 2) to convert snow below the water line to ice, and 3) to equalize the thickness of the two ice layers.

Detailed Algorithm

Argument Table

sfc_sice_run argument table
local_namestandard_namelong_nameunitstypedimensionskindintent
imhorizontal_loop_extenthorizontal loop extentcountinteger()in
kicevertical_dimension_of_sea_icevertical loop extent for ice levels, start at 1countinteger()in
sbcstefan_boltzmann_constantStefan-Boltzmann constantW m-2 K-4real()kind_physin
hvaplatent_heat_of_vaporization_of_water_at_0clatent heat of evaporation/sublimationJ kg-1real()kind_physin
tgicefreezing_point_temperature_of_seawaterfreezing point temperature of seawaterKreal()kind_physin
cpspecific_heat_of_dry_air_at_constant_pressurespecific heat of dry air at constant pressureJ kg-1 K-1real()kind_physin
epsratio_of_dry_air_to_water_vapor_gas_constantsrd/rvnonereal()kind_physin
epsm1ratio_of_dry_air_to_water_vapor_gas_constants_minus_one(rd/rv) - 1nonereal()kind_physin
rvrdm1ratio_of_vapor_to_dry_air_gas_constants_minus_one(rv/rd) - 1 (rv = ideal gas constant for water vapor)nonereal()kind_physin
gravgravitational_accelerationgravitational accelerationm s-2real()kind_physin
t0ctemperature_at_zero_celsiustemperature at 0 degree CelsiusKreal()kind_physin
rdgas_constant_of_dry_airideal gas constant for dry airJ kg-1 K-1real()kind_physin
pssurface_air_pressuresurface pressurePareal(ccpp_constant_one:horizontal_loop_extent)kind_physin
t1air_temperature_at_surface_adjacent_layersurface layer mean temperatureKreal(ccpp_constant_one:horizontal_loop_extent)kind_physin
q1specific_humidity_at_surface_adjacent_layersurface layer mean specific humiditykg kg-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
delttimestep_for_dynamicstime stepsreal()kind_physin
sfcemissurface_longwave_emissivity_over_icesurface lw emissivity in fraction over icefracreal(ccpp_constant_one:horizontal_loop_extent)kind_physin
dlwflxsurface_downwelling_longwave_flux_absorbed_by_ground_over_icetotal sky surface downward longwave flux absorbed by the ground over iceW m-2real(ccpp_constant_one:horizontal_loop_extent)kind_physin
sfcnswsurface_net_downwelling_shortwave_fluxtotal sky sfc netsw flx into groundW m-2real(ccpp_constant_one:horizontal_loop_extent)kind_physin
sfcdswsurface_downwelling_shortwave_fluxtotal sky sfc downward sw fluxW m-2real(ccpp_constant_one:horizontal_loop_extent)kind_physin
srflagprecipitation_typesnow/rain flag for precipitationflagreal(ccpp_constant_one:horizontal_loop_extent)kind_physin
cmsurface_drag_coefficient_for_momentum_in_air_over_icesurface exchange coeff for momentum over icenonereal(ccpp_constant_one:horizontal_loop_extent)kind_physin
chsurface_drag_coefficient_for_heat_and_moisture_in_air_over_icesurface exchange coeff heat & moisture over icenonereal(ccpp_constant_one:horizontal_loop_extent)kind_physin
prsl1air_pressure_at_surface_adjacent_layersurface layer mean pressurePareal(ccpp_constant_one:horizontal_loop_extent)kind_physin
prslkiratio_of_exner_function_between_midlayer_and_interface_at_lowest_model_layerExner function ratio bt midlayer and interface at 1st layerratioreal(ccpp_constant_one:horizontal_loop_extent)kind_physin
prsik1surface_dimensionless_exner_functiondimensionless Exner function at the ground surfacenonereal(ccpp_constant_one:horizontal_loop_extent)kind_physin
prslk1dimensionless_exner_function_at_surface_adjacent_layerdimensionless Exner function at the lowest model layernonereal(ccpp_constant_one:horizontal_loop_extent)kind_physin
windwind_speed_at_lowest_model_layerwind speed at lowest model levelm s-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
flag_iterflag_for_iterationflag for iterationflaglogical(ccpp_constant_one:horizontal_loop_extent)in
use_lake_modelflag_for_using_lake_modelflag indicating lake points using a lake modelflaginteger(ccpp_constant_one:horizontal_loop_extent)in
lprntflag_printswitch for printing sample column to stdoutflaglogical()in
iprhorizontal_index_of_printed_columnhorizontal index of printed columnindexinteger()in
thsfc_locflag_for_reference_pressure_thetaflag for reference pressure in theta calculationflaglogical()in
hicesea_ice_thicknesssea-ice thicknessmreal(ccpp_constant_one:horizontal_loop_extent)kind_physinout
ficesea_ice_area_fraction_of_sea_area_fractionsea-ice concentration [0,1]fracreal(ccpp_constant_one:horizontal_loop_extent)kind_physinout
ticesurface_skin_temperature_over_icesurface skin temperature over iceKreal(ccpp_constant_one:horizontal_loop_extent)kind_physinout
weasdwater_equivalent_accumulated_snow_depth_over_icewater equiv of acc snow depth over icemmreal(ccpp_constant_one:horizontal_loop_extent)kind_physinout
tsfc_watsurface_skin_temperature_over_watersurface skin temperature over waterKreal(ccpp_constant_one:horizontal_loop_extent)kind_physin
tprcpnonnegative_lwe_thickness_of_precipitation_amount_on_dynamics_timestep_over_icetotal precipitation amount in each time step over icemreal(ccpp_constant_one:horizontal_loop_extent)kind_physinout
tiicetemperature_in_ice_layersea ice internal temperatureKreal(ccpp_constant_one:horizontal_loop_extent, ccpp_constant_one:vertical_dimension_of_sea_ice)kind_physinout
epsurface_upward_potential_latent_heat_flux_over_icesurface upward potential latent heat flux over iceW m-2real(ccpp_constant_one:horizontal_loop_extent)kind_physinout
snwdphsurface_snow_thickness_water_equivalent_over_icewater equivalent snow depth over icemmreal(ccpp_constant_one:horizontal_loop_extent)kind_physinout
qss_isurface_specific_humidity_over_icesurface air saturation specific humidity over icekg kg-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
qss_wsurface_specific_humidity_over_watersurface air saturation specific humidity over waterkg kg-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
snowmtsurface_snow_meltsnow melt during timestepmreal(ccpp_constant_one:horizontal_loop_extent)kind_physinout
gfluxupward_heat_flux_in_soil_over_icesoil heat flux over iceW m-2real(ccpp_constant_one:horizontal_loop_extent)kind_physinout
cmmsurface_drag_wind_speed_for_momentum_in_air_over_icemomentum exchange coefficient over icem s-1real(ccpp_constant_one:horizontal_loop_extent)kind_physinout
chhsurface_drag_mass_flux_for_heat_and_moisture_in_air_over_icethermal exchange coefficient over icekg m-2 s-1real(ccpp_constant_one:horizontal_loop_extent)kind_physinout
evapikinematic_surface_upward_latent_heat_flux_over_icekinematic surface upward latent heat flux over icekg kg-1 m s-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
evapwkinematic_surface_upward_latent_heat_flux_over_waterkinematic surface upward latent heat flux over waterkg kg-1 m s-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
hflxikinematic_surface_upward_sensible_heat_flux_over_icekinematic surface upward sensible heat flux over iceK m s-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
hflxwkinematic_surface_upward_sensible_heat_flux_over_waterkinematic surface upward sensible heat flux over waterK m s-1real(ccpp_constant_one:horizontal_loop_extent)kind_physin
islmsksea_land_ice_mask_cicesea/land/ice mask cice (=0/1/2)flaginteger(ccpp_constant_one:horizontal_loop_extent)in
errmsgccpp_error_messageerror message for error handling in CCPPnonecharacter()len=*out
errflgccpp_error_codeerror code for error handling in CCPP1integer()out
