Access ERA5 data from NCAR’s GDEX - GDEX Intake ESM Catalog Documentation

# Imports
import intake
import numpy as np
import matplotlib.pyplot as plt
import xarray as xr
import intake_esm
import glob
import pandas as pd
import os

import dask
from dask_jobqueue import PBSCluster
from dask.distributed import Client
from dask.distributed import performance_report

# Set up your sratch folder path
username       = os.environ["USER"]
glade_scratch  = "/glade/derecho/scratch/" + username
print(glade_scratch)

/glade/derecho/scratch/harshah

gdex_data    = '/gdex/data/'
#
era5_posix     = 'https://osdf-director.osg-htc.org/ncar/gdex/d633000/catalogs/d633000-posix.json'
era5_https_url = 'https://osdf-director.osg-htc.org/ncar/gdex/d633000/catalogs/d633000-http.json'
era5_osdf_url  = 'https://osdf-director.osg-htc.org/ncar/gdex/d633000/catalogs/d633000-osdf.json'

Create PBS cluster and scale¶

# Create a PBS cluster object
cluster = PBSCluster(
    job_name = 'dask-wk24-hpc',
    cores = 1,
    memory = '4GiB',
    processes = 1,
    local_directory = glade_scratch+'/dask/',
    resource_spec = 'select=1:ncpus=1:mem=4GB',
    queue = 'casper',
    walltime = '5:00:00',
    log_directory = glade_scratch+'/dask/',
    #interface = 'ib0'
    interface = 'ext'
)

/glade/u/home/harshah/venvs/osdf/lib/python3.10/site-packages/distributed/node.py:187: UserWarning: Port 8787 is already in use.
Perhaps you already have a cluster running?
Hosting the HTTP server on port 42683 instead
  warnings.warn(

cluster.scale(3)
cluster

Loading...

Open catalog and load data¶

Direct POSIX access for NCAR’s HPC users¶

cat = intake.open_esm_datastore(era5_posix)
cat

Loading...

cat.df

Loading...

cat_temp = cat.search(variable='VAR_2T')

cat_temp.df['path'].values

array(['/glade/campaign/collections/gdex/data/d633000/e5.oper.an.sfc.zarr/e5.oper.an.sfc.2t.zarr'],
      dtype=object)

dsets = cat_temp.to_dataset_dict()


--> The keys in the returned dictionary of datasets are constructed as follows:
	'variable.short_name'

Loading...

dsets.keys()

dict_keys(['VAR_2T.2t'])

temp_posix = dsets['VAR_2T.2t']
temp_posix

Loading...

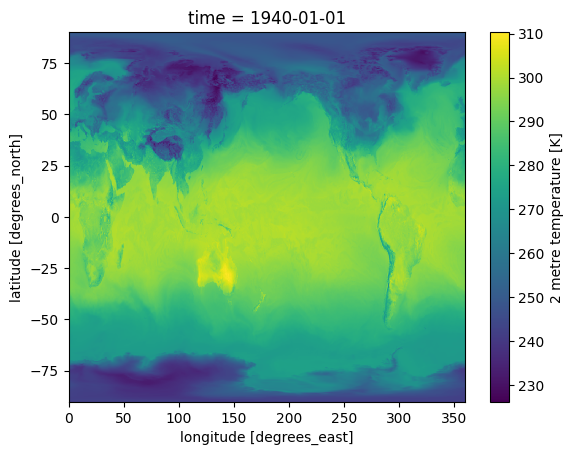

temp_posix.VAR_2T.isel(time=0).plot()

Using HTTPS¶

catalog_https  = intake.open_esm_datastore(era5_https_url)
cat_temp_https = catalog_https.search(variable='VAR_2T')

cat_temp_https.df['path'].values

array(['https://data.gdex.ucar.edu/d633000/e5.oper.an.sfc.zarr/e5.oper.an.sfc.2t.zarr'],
      dtype=object)

dsets_https = cat_temp.to_dataset_dict()


--> The keys in the returned dictionary of datasets are constructed as follows:
	'variable.short_name'

Loading...

temp_https = dsets_https['VAR_2T.2t']

temp_https.VAR_2T.isel(time=0).plot()

Using OSDF¶

catalog_osdf  = intake.open_esm_datastore(era5_osdf_url)
cat_temp_osdf = catalog_osdf.search(variable='VAR_2T')

cat_temp_osdf.df['path'].values

array(['osdf:///ncar/gdex/d633000/e5.oper.an.sfc.zarr/e5.oper.an.sfc.2t.zarr'],
      dtype=object)

dsets_osdf = cat_temp_osdf.to_dataset_dict()


--> The keys in the returned dictionary of datasets are constructed as follows:
	'variable.short_name'

Loading...

temp_osdf = dsets_osdf['VAR_2T.2t']

temp_osdf.VAR_2T.isel(time=0).plot()

cluster.close()
