Topo & The Widgets!

This document explains the widget modules in mom6_bathy.

mom6_bathy comes with three UI modules/classes that wrap the three main classes—VGrid, Grid, and Topo—to help with creating vertical grids (VGridCreator), horizontal grids (GridCreator), and editing topography (TopoEditor).

Creators

The creators act as visual wrappers around the constructors of their respective classes, providing sliders and visualizations. They automatically generate folders called VgridLibrary and GridLibrary to store created grids. The currently selected grid is directly accessible as an object inside each creator.

Topo & TopoEditor Edits

The Topo & TopoEditor workflow is a bit more nuanced.

Grids are simple: they are created once and rarely modified. Topo objects, however, are built on top of the horizontal grid and are heavily edited during the development cycle (filling bays, deepening ridges, etc.).

Because of this, Topo has many editing functions. TopoEditor provides a visual, point-and-click interface on top of these functions.

Current editing functions (* = available in TopoEditor):

  1. * Edit depth at a specific point

  2. * Edit the minimum depth

  3. * Erase a basin at a selected point

  4. * Erase every basin except the one containing the selected point

  5. Generate and apply an ocean mask from a land-fraction dataset

  6. Apply a ridge to the bathymetry

You can also reapply an initializer (none supported in the TopoEditor):

  1. Set flat bathy

  2. Set spoon bathy

  3. Set bowl bathy

  4. Set from dataset

  5. Set from previous topo object

Undo & Redo

To support the iterative editing process, we provide undo and redo functionality across sessions. This requires maintaining a structured history, stored inside a directory associated with your Topo object.

This folder contains:

  1. The grid underlying the topo

  2. The original blank topo

  3. A permanent command history

_images/TopoLibrarySample.png

Layout of a Topo folder.

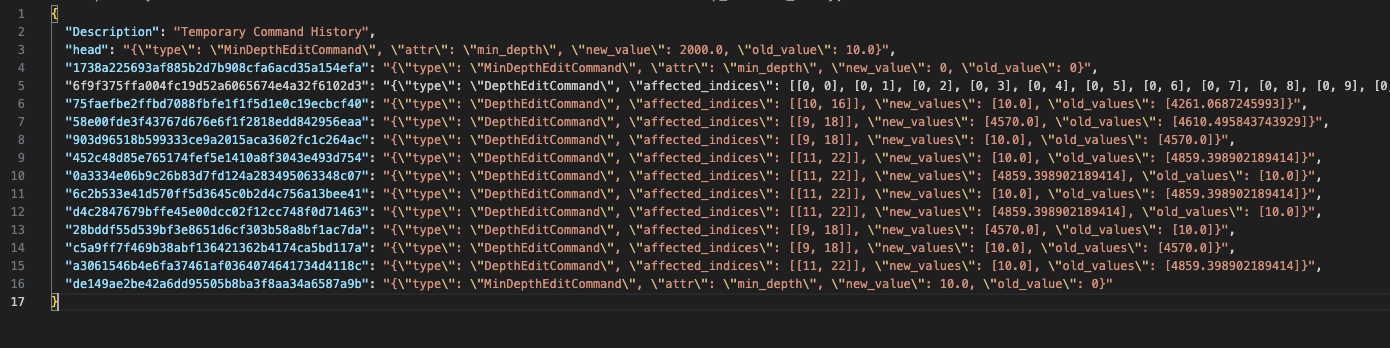

_images/TopoTempCommandHistory.png

Structure of the command history JSON file.

How It Works

  1. You create your Topo object, which initializes the four files above.

  2. You make changes using Topo or TopoEditor.

  3. Each change is added to history.

  4. Each change is then committed via Git—this powers undo/redo.

Topo Git Functionality and How to Use It

We use Git to implement undo/redo functionality inside the topo directory.

You can view the history with:

git log

The command history is a JSON file mapping commit SHAs to change metadata. You can cross-reference the Git log with this JSON file to inspect details of each edit.

We also support simple version-control actions:

  • topo.tcm.create_branch("branchname") — create a branch

  • topo.tcm.checkout("branchname") — switch branches

  • topo.tcm.tag("tagname") — create a tag and save a tagname_topog.nc file

Tags cannot be checked out (this can cause unexpected states).

Undo and redo:

  • topo.tcm.undo()

  • topo.tcm.redo()

These appear in the Git log as:

  • UNDO-<sha>

  • REDO-<sha>

Be careful not to undo your initial set-function!

Warning

Do not run Git commands inside this folder except for harmless commands like git log. We manage the folder internally. External Git commands (like git checkout) may break state management.

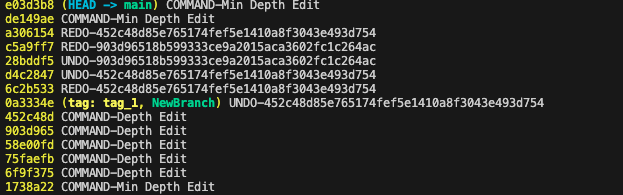

_images/TopoSampleGitLog.png

Example git log for a topo editing session.

Nuances (Initialization, Naming, etc.)

Folders are named after the hash of the grid’s tlon variable. This means that any topo using the same grid will share the same folder.

You can initialize Topo in three ways:

  1. Topo() — creates an empty topo with the provided minimum depth

  2. Topo.from_version_control(path) — loads a folder, applies saved history, and returns the reconstructed topo

  3. Topo.from_topo_file(file) — loads a topo file and applies it on top of any existing changes in the folder

All of the git versioning (undo, redo, reset, checkout, tag, create branch) is handled by the TopoCommandManager, which can be accessed as the class variable “tcm”. The code for this manager resides in the command_manager class. We would use straight git functions, but the topo file itself is handled independently of the commits. (In the future, expect this to use icechunk)

See also the demonstration notebook:

6_demo_editors.ipynb
