import numpy as np
import matplotlib.pyplot as plt
import pandas as pd
import xarray as xr
import aiohttp
import time
from contextlib import contextmanager
import matplotlib.pyplot as plt
import seaborn as sns
import intake
import os

import fsspec.implementations.http as fshttp
from pelicanfs.core import PelicanFileSystem, PelicanMap, OSDFFileSystem

# import dask
# from dask_jobqueue import PBSCluster
# from dask.distributed import Client
# from dask.distributed import performance_report

init_year0  = '1991'
init_year1  = '2020'
final_year0 = '2071'
final_year1 = '2100'

# File paths
rda_url       =  'https://data.rda.ucar.edu/'
database_num  = 'd345001'
cam6_dart_url = rda_url + database_num
#
https_catalog = cam6_dart_url + '/catalogs/https/'+ database_num +'-https-zarr.json'
osdf_catalog  = cam6_dart_url + '/catalogs/osdf/'+ database_num +'-osdf-zarr.json'

Open intake catalog¶

df_https_test = intake.open_esm_datastore(https_catalog)
df_https_test.df['path'].values

array(['https://data.rda.ucar.edu/d345001/hourly6/HR.zarr',
       'https://data.rda.ucar.edu/d345001/hourly6/TSA.zarr',
       'https://data.rda.ucar.edu/d345001/hourly6/EFLX_LH_TOT.zarr',
       'https://data.rda.ucar.edu/d345001/hourly6/ER.zarr',
       'https://data.rda.ucar.edu/d345001/weekly/VS.zarr',
       'https://data.rda.ucar.edu/d345001/weekly/PS.zarr',
       'https://data.rda.ucar.edu/d345001/weekly/Q.zarr',
       'https://data.rda.ucar.edu/d345001/weekly/US.zarr',
       'https://data.rda.ucar.edu/d345001/weekly/CLDICE.zarr',
       'https://data.rda.ucar.edu/d345001/weekly/T.zarr',
       'https://data.rda.ucar.edu/d345001/weekly/CLDLIQ.zarr'],
      dtype=object)

df_osdf_test = intake.open_esm_datastore(osdf_catalog)
df_osdf_test.df['path'].values

array(['osdf:///ncar/rda/d345001/hourly6/HR.zarr',
       'osdf:///ncar/rda/d345001/hourly6/TSA.zarr',
       'osdf:///ncar/rda/d345001/hourly6/EFLX_LH_TOT.zarr',
       'osdf:///ncar/rda/d345001/hourly6/ER.zarr',
       'osdf:///ncar/rda/d345001/weekly/VS.zarr',
       'osdf:///ncar/rda/d345001/weekly/PS.zarr',
       'osdf:///ncar/rda/d345001/weekly/Q.zarr',
       'osdf:///ncar/rda/d345001/weekly/US.zarr',
       'osdf:///ncar/rda/d345001/weekly/CLDICE.zarr',
       'osdf:///ncar/rda/d345001/weekly/T.zarr',
       'osdf:///ncar/rda/d345001/weekly/CLDLIQ.zarr'], dtype=object)

data_var = 'PS'
col_subset_https = df_https_test.search(variable=data_var)
col_subset_osdf  = df_osdf_test.search(variable=data_var)

dsets_https = col_subset_https.to_dataset_dict(zarr_kwargs={"consolidated": True})
#
print(f"\nDataset dictionary keys:\n {dsets_https.keys()}")
# Load the first dataset and display a summary.
dataset_key = list(dsets_https.keys())[0]
#
ds_https = dsets_https[dataset_key]

dsets_osdf  = col_subset_osdf.to_dataset_dict()
#
ds_osdf0     = dsets_osdf[dataset_key]
ds_https0    = dsets_https[dataset_key]

ds_osdf  = ds_osdf0.PS
ds_https = ds_https0.PS
ds_https

%%time

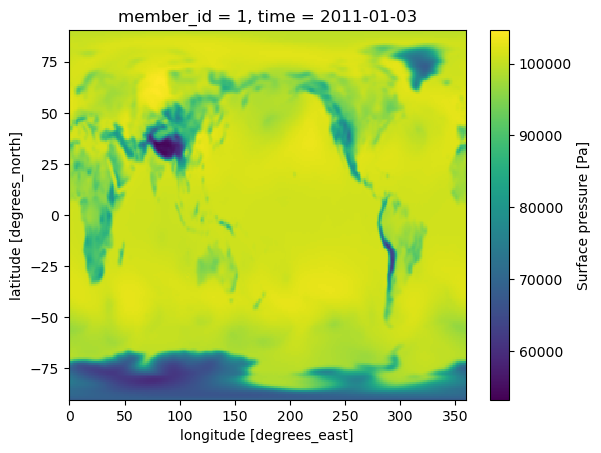

ds_osdf.isel(member_id=0,time=0).plot()

CPU times: user 3.81 s, sys: 5.02 s, total: 8.83 s
Wall time: 6.56 s

Data Access Speed tests¶

We will now test how long it takes to access data (via OSDF and https-only prrotocols) for various sizes using the above array

Prepare data subsets¶

ds_osdf_1Kb  = ds_osdf.isel(lat=0,lon=0,member_id=0).isel(time=np.arange(130))
ds_https_1Kb = ds_https.isel(lat=0,lon=0,member_id=0).isel(time=np.arange(130))
#ds_https_1Kb

ds_osdf_1Mb  = ds_osdf.isel(time=0).isel(member_id =1+ np.arange(3))
ds_https_1Mb = ds_https.isel(time=0).isel(member_id =1+ np.arange(3))
# ds_osdf_1Mb

ds_osdf_10Mb  = ds_osdf.isel(member_id =4).isel(time=np.arange(24))
ds_https_10Mb = ds_https.isel(member_id =4).isel(time=np.arange(24))
# ds_osdf_10Mb

ds_osdf_100Mb  = ds_osdf.isel(member_id =5).isel(time=np.arange(238))
ds_https_100Mb = ds_https.isel(member_id =5).isel(time=np.arange(238))
#ds_osdf_100Mb

ds_osdf_200Mb  = ds_osdf.isel(member_id = 6)
ds_https_200Mb = ds_https.isel(member_id =6)
#ds_https_200Mb

ds_osdf_400Mb  = ds_osdf.isel(member_id = 7 +np.arange(2))
ds_https_400Mb = ds_https.isel(member_id =7 + np.arange(2))
# ds_https_400Mb

ds_osdf_600Mb  = ds_osdf.isel(member_id  = 10 +np.arange(3))
ds_https_600Mb = ds_https.isel(member_id = 10 + np.arange(3))
# ds_https_600Mb

ds_osdf_800Mb  = ds_osdf.isel(member_id  = 14 +np.arange(4))
ds_https_800Mb = ds_https.isel(member_id = 14 + np.arange(4))
# ds_https_800Mb

ds_osdf_1Gb  = ds_osdf.isel(member_id  = 19 + np.arange(6)).isel(time = np.arange(410))
ds_https_1Gb = ds_https.isel(member_id = 19 + np.arange(6)).isel(time = np.arange(410))
# ds_osdf_1Gb

# ds_osdf_10Gb  = ds_osdf.isel(member_id  = 12 + np.arange(52))
# ds_https_10Gb = ds_https.isel(member_id = 12 + np.arange(52))
# ds_osdf_10Gb

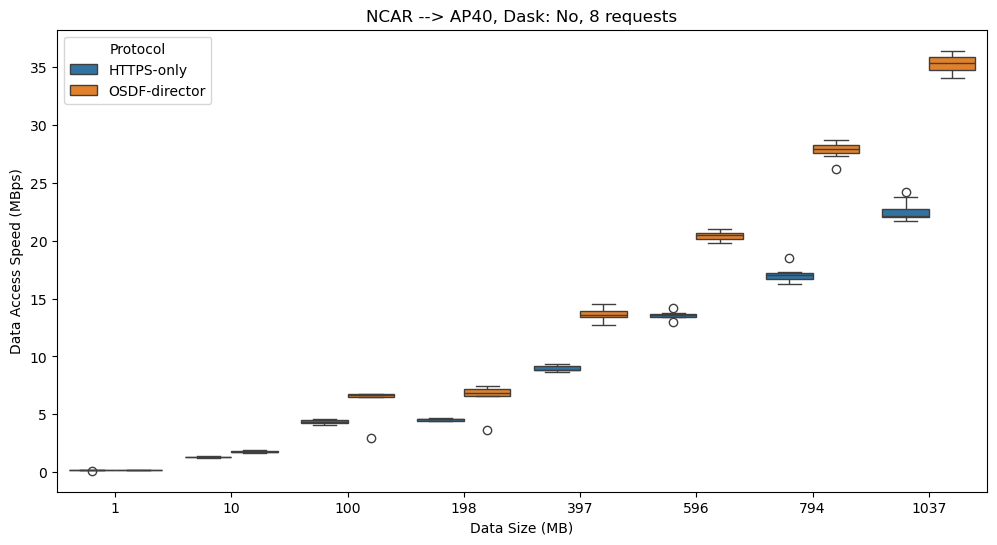

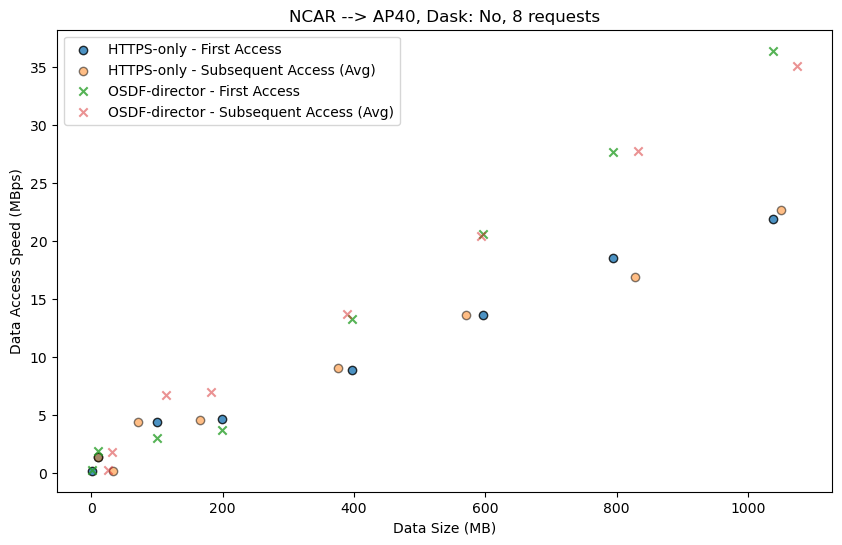

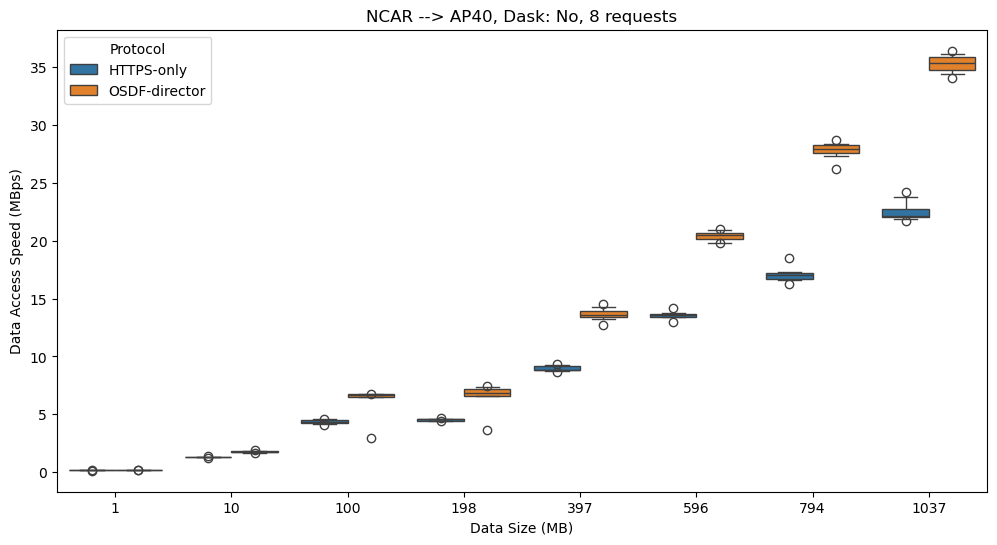

Access data and plot¶

# Define file path for CSV
csv_file_path = "ncar_benchmark_ap40_nodask.csv"

ds_osdf_list  = [ds_osdf_1Mb,ds_osdf_10Mb,ds_osdf_100Mb,ds_osdf_200Mb,ds_osdf_400Mb,
                 ds_osdf_600Mb,ds_osdf_800Mb,ds_osdf_1Gb]
ds_https_list = [ds_https_1Mb,ds_https_10Mb,ds_https_100Mb,ds_https_200Mb,ds_https_400Mb,
                 ds_https_600Mb,ds_https_800Mb,ds_https_1Gb]

# Number of data access calls
num_calls = 8  # Modify this as needed
n_workers = 4  # Set this to your preferred number of workers

# DiagnosticTimer class to keep track of runtimes
class DiagnosticTimer:
    def __init__(self):
        self.diagnostics = []

    @contextmanager
    def time(self, **kwargs):
        tic = time.time()
        yield
        toc = time.time()
        kwargs["runtime"] = toc - tic
        self.diagnostics.append(kwargs)

    def dataframe(self):
        return pd.DataFrame(self.diagnostics)

# Initialize the DiagnosticTimer
diag_timer = DiagnosticTimer()

# Function to check existing CSV file and determine missing runs
def load_existing_results():
    if os.path.exists(csv_file_path):
        # Load existing CSV into DataFrame
        existing_df = pd.read_csv(csv_file_path)
    else:
        # Create an empty DataFrame if the file does not exist
        existing_df = pd.DataFrame(columns=["dataset_size", "protocol", "call_number", "runtime", "MBps"])
    return existing_df

def filter_missing_runs(datasets, protocol_name, existing_df):
    # Convert dataset sizes to MB for checking, using a list of tuples
    dataset_sizes_mb = [(dataset, dataset.nbytes / (1024 ** 2)) for dataset in datasets]

    # Identify missing dataset sizes and calls
    filtered_datasets = []
    for dataset, dataset_size_mb in dataset_sizes_mb:
        for call_num in range(1, num_calls + 1):
            # Check if this dataset size and call number combination already exists
            if not ((existing_df["dataset_size"] == dataset_size_mb) &
                    (existing_df["protocol"] == protocol_name) &
                    (existing_df["call_number"] == call_num)).any():
                filtered_datasets.append((dataset, dataset_size_mb, call_num))

    return filtered_datasets

def benchmark_protocol(datasets, protocol_name, cluster=None):
    existing_df = load_existing_results()  # Load existing results as a checkpoint

    # Filter for missing runs based on existing results
    missing_runs = filter_missing_runs(datasets, protocol_name, existing_df)
    diag_timer = DiagnosticTimer()  # Initialize the diagnostic timer

    # Process each dataset and call
    for (dataset, dataset_size_mb, call_num) in missing_runs:
        # Restart the Dask cluster if provided
        if cluster is not None:
            cluster.scale(0)  # Scale down to release worker memory
            cluster.scale(n_workers)  # Scale up to required number of workers
            client.wait_for_workers(n_workers)  # Wait for workers to be ready

        # Inform the start of processing for this dataset and call
        print(f"Starting processing of dataset for protocol '{protocol_name}' (Size: {dataset_size_mb} MB) in call {call_num}")

        # Only count the time for loading dataset into memory
        dataset_copy = dataset.copy()
        with diag_timer.time(dataset_size=dataset_size_mb, protocol=protocol_name, call_number=call_num):
            dataset_copy.load()  # Load the dataset into memory

        # Convert the single call result to a DataFrame and add MBps column
        call_result_df = diag_timer.dataframe().iloc[[-1]].copy()  # Get the latest diagnostic entry
        call_result_df["MBps"] = call_result_df["dataset_size"] / call_result_df["runtime"]

        # Append this call's result to CSV
        call_result_df.to_csv(csv_file_path, mode='a', header=not os.path.exists(csv_file_path), index=False)
        print(f"Appended results for protocol '{protocol_name}', call {call_num} to '{csv_file_path}'")

        # Print statement after finishing each call
        print(f"Finished processing dataset for protocol '{protocol_name}' in call {call_num}")

# Run benchmark for each protocol
benchmark_protocol(ds_https_list, "HTTPS-only",cluster=None)
benchmark_protocol(ds_osdf_list, "OSDF-director",cluster=None)

# Convert diagnostics to a DataFrame for analysis
df_diagnostics = diag_timer.dataframe()

Starting processing of dataset for protocol 'HTTPS-only' (Size: 596.109375 MB) in call 7
Appended results for protocol 'HTTPS-only', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 7
Starting processing of dataset for protocol 'HTTPS-only' (Size: 596.109375 MB) in call 8
Appended results for protocol 'HTTPS-only', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 8
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 1
Appended results for protocol 'HTTPS-only', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 1
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 2
Appended results for protocol 'HTTPS-only', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 2
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 3
Appended results for protocol 'HTTPS-only', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 3
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 4
Appended results for protocol 'HTTPS-only', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 4
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 5
Appended results for protocol 'HTTPS-only', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 5
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 6
Appended results for protocol 'HTTPS-only', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 6
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 7
Appended results for protocol 'HTTPS-only', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 7
Starting processing of dataset for protocol 'HTTPS-only' (Size: 794.8125 MB) in call 8
Appended results for protocol 'HTTPS-only', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 8
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 1
Appended results for protocol 'HTTPS-only', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 1
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 2
Appended results for protocol 'HTTPS-only', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 2
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 3
Appended results for protocol 'HTTPS-only', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 3
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 4
Appended results for protocol 'HTTPS-only', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 4
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 5
Appended results for protocol 'HTTPS-only', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 5
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 6
Appended results for protocol 'HTTPS-only', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 6
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 7
Appended results for protocol 'HTTPS-only', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 7
Starting processing of dataset for protocol 'HTTPS-only' (Size: 1037.8125 MB) in call 8
Appended results for protocol 'HTTPS-only', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'HTTPS-only' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 1.265625 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 10.125 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 100.40625 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 198.703125 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 397.40625 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 596.109375 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 794.8125 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 1
Appended results for protocol 'OSDF-director', call 1 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 1
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 2
Appended results for protocol 'OSDF-director', call 2 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 2
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 3
Appended results for protocol 'OSDF-director', call 3 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 3
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 4
Appended results for protocol 'OSDF-director', call 4 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 4
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 5
Appended results for protocol 'OSDF-director', call 5 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 5
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 6
Appended results for protocol 'OSDF-director', call 6 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 6
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 7
Appended results for protocol 'OSDF-director', call 7 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 7
Starting processing of dataset for protocol 'OSDF-director' (Size: 1037.8125 MB) in call 8
Appended results for protocol 'OSDF-director', call 8 to 'ncar_benchmark_ap40_nodask.csv'
Finished processing dataset for protocol 'OSDF-director' in call 8

---------------------------------------------------------------------------
KeyError                                  Traceback (most recent call last)
Cell In[29], line 9
      6 df_diagnostics = diag_timer.dataframe()
      8 # Calculate MB/s for each run
----> 9 df_diagnostics['MBps'] = df_diagnostics['dataset_size'] / df_diagnostics['runtime']
     10 df_diagnostics

File ~/miniconda3/lib/python3.12/site-packages/pandas/core/frame.py:4102, in DataFrame.__getitem__(self, key)
   4100 if self.columns.nlevels > 1:
   4101     return self._getitem_multilevel(key)
-> 4102 indexer = self.columns.get_loc(key)
   4103 if is_integer(indexer):
   4104     indexer = [indexer]

File ~/miniconda3/lib/python3.12/site-packages/pandas/core/indexes/range.py:417, in RangeIndex.get_loc(self, key)
    415         raise KeyError(key) from err
    416 if isinstance(key, Hashable):
--> 417     raise KeyError(key)
    418 self._check_indexing_error(key)
    419 raise KeyError(key)

KeyError: 'dataset_size'

# Calculate MB/s for each run
# df_diagnostics['MBps'] = df_diagnostics['dataset_size'] / df_diagnostics['runtime']
df_diagnostics = pd.read_csv(csv_file_path)
df_diagnostics

# df_diagnostics = diag_timer.dataframe()
# df_diagnostics

# Plotting MBps vs data size for each protocol and call type
# Define different alpha values for each protocol
alpha_values = {"HTTPS-only": 0.8, "OSDF-director": 0.6}  # Adjust transparency as needed
marker_style = {"HTTPS-only": "o", "OSDF-director": "x"}  # Define different markers for each protocol
edgecolors   = {"HTTPS-only": "black", "OSDF-director": None}
#
# Define markers for each protocol
protocol_markers = {
    "HTTPS-only": 'o',  # Circle marker
    "OSDF-director": 'x'  # Cross marker
}

# Define alpha values for different access types
alpha_first_access = 0.8
alpha_subsequent_access = 0.5

fig, ax = plt.subplots(figsize=(10, 6))

for protocol in ["HTTPS-only", "OSDF-director"]:
    # First access (call_number == 1)
    first_access = df_diagnostics[(df_diagnostics['protocol'] == protocol) & (df_diagnostics['call_number'] == 1)]
    ax.scatter(first_access['dataset_size'], first_access['MBps'],
               label=f"{protocol} - First Access",
               marker=protocol_markers[protocol],
               alpha=alpha_first_access,
               edgecolor=edgecolors[protocol])

    # Subsequent access (call_number > 1)
    subsequent_access = df_diagnostics[(df_diagnostics['protocol'] == protocol) & (df_diagnostics['call_number'] > 1)]
    subsequent_access_avg = subsequent_access.groupby('dataset_size')['MBps'].mean()

    # Add a slight jitter to dataset size to avoid overlapping
    jitter = 0.1 * subsequent_access_avg.index.to_series().std()  # Adjust jitter dynamically
    jittered_index = subsequent_access_avg.index + np.random.uniform(-jitter, jitter, size=len(subsequent_access_avg.index))

    ax.scatter(jittered_index, subsequent_access_avg.values,
               label=f"{protocol} - Subsequent Access (Avg)",
               marker=protocol_markers[protocol],
               alpha=alpha_subsequent_access,
               edgecolor=edgecolors[protocol])

# Customize plot appearance
ax.set_xlabel("Data Size (MB)")
ax.set_ylabel("Data Access Speed (MBps)")
ax.set_title("NCAR --> AP40, Dask: No, 8 requests")
ax.legend()
plt.show()

# Convert dataset size to categorical to control the order in the plot
#df_diagnostics['dataset_size'] = df_diagnostics['dataset_size'].astype("category")
df_diagnostics['dataset_size'] = df_diagnostics['dataset_size'].round(0).astype(int).astype("category")

# Set the order for dataset sizes to appear in ascending order
size_order = sorted(df_diagnostics['dataset_size'].unique())

# Create the box plot
plt.figure(figsize=(12, 6))
sns.boxplot(
    data=df_diagnostics,
    x="dataset_size",
    y="MBps",
    hue="protocol",
    order=size_order
)

# Customize plot appearance
plt.xlabel("Data Size (MB)")
plt.ylabel("Data Access Speed (MBps)")
# plt.yscale('log')
plt.title("NCAR --> AP40, Dask: No, 8 requests")
plt.legend(title="Protocol")
plt.show()

# Convert dataset size to categorical to control the order in the plot
#df_diagnostics['dataset_size'] = df_diagnostics['dataset_size'].astype("category")
df_diagnostics['dataset_size'] = df_diagnostics['dataset_size'].round(0).astype(int).astype("category")

# Set the order for dataset sizes to appear in ascending order
size_order = sorted(df_diagnostics['dataset_size'].unique())

# Create the box plot
plt.figure(figsize=(12, 6))
sns.boxplot(
    data=df_diagnostics,
    x="dataset_size",
    y="MBps",
    hue="protocol",
    order=size_order,
    whis = [5,95]
)

# Customize plot appearance
plt.xlabel("Data Size (MB)")
plt.ylabel("Data Access Speed (MBps)")
# plt.yscale('log')
plt.title("NCAR --> AP40, Dask: No, 8 requests")
plt.legend(title="Protocol")
plt.show()

NDC Workflows

Envistor Test Ap40

NDC Workflows

Access DART data from NCAR’s data origin and benchmark
