Regrid MLD from deBoyer et al (2004)

This notebook documents the steps needed to regrid the MLD dataset to a nominal 1/4 deg MOM grid (tx1_4).

%matplotlib inline

import xarray as xr
import xesmf
import numpy as np
from datetime import datetime
import numpy as np
import matplotlib.pyplot as plt

fname = '../../mesh/tx1_4_grid.nc'
ds_out = xr.open_dataset(fname).rename({'tlon': 'lon','tlat': 'lat', 'qlon': 'lon_b','qlat': 'lat_b',})
ds_out

<xarray.Dataset>
Dimensions:  (ny: 1080, nx: 1440, nxp: 1441, nyp: 1081)
Dimensions without coordinates: ny, nx, nxp, nyp
Data variables: (12/20)
    lon      (ny, nx) float64 ...
    lat      (ny, nx) float64 ...
    ulon     (ny, nxp) float64 ...
    ulat     (ny, nxp) float64 ...
    vlon     (nyp, nx) float64 ...
    vlat     (nyp, nx) float64 ...
    ...       ...
    tarea    (ny, nx) float64 ...
    tmask    (ny, nx) float64 ...
    angle    (ny, nx) float64 ...
    depth    (ny, nx) float64 ...
    ar       (ny, nx) float64 ...
    egs      (ny, nx) float64 ...
Attributes:
    Description:  CESM MOM6 1/4 degree grid
    Author:       Frank, Fred, Gustavo (gmarques@ucar.edu)
    Created:      2022-12-27T10:20:11.076318
    type:         Glogal 1/4 degree grid file

xarray.Dataset

• Dimensions:
  • ny: 1080
  • nx: 1440
  • nxp: 1441
  • nyp: 1081
• Coordinates: (0)
• Data variables: (20)
  • lon
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid longitudes

    units :

    degrees_east

    [1555200 values with dtype=float64]

  • lat
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid latitudes

    units :

    degrees_north

    [1555200 values with dtype=float64]

  • ulon
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid longitudes

    units :

    degrees_east

    [1556280 values with dtype=float64]

  • ulat
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid latitudes

    units :

    degrees_north

    [1556280 values with dtype=float64]

  • vlon
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid longitudes

    units :

    degrees_east

    [1556640 values with dtype=float64]

  • vlat
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid latitudes

    units :

    degrees_north

    [1556640 values with dtype=float64]

  • lon_b
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid longitudes

    units :

    degrees_east

    [1557721 values with dtype=float64]

  • lat_b
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid latitudes

    units :

    degrees_north

    [1557721 values with dtype=float64]

  • dxt
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between u-points, centered at t

    units :

    meters

    [1555200 values with dtype=float64]

  • dyt
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between v-points, centered at t

    units :

    meters

    [1555200 values with dtype=float64]

  • dxCv
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between q-points, centered at v

    units :

    meters

    [1555200 values with dtype=float64]

  • dyCu
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between q-points, centered at u

    units :

    meters

    [1555200 values with dtype=float64]

  • dxCu
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between t-points, centered at u

    units :

    meters

    [1555200 values with dtype=float64]

  • dyCv
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between t-points, centered at v

    units :

    meters

    [1555200 values with dtype=float64]

  • tarea
    (ny, nx)
    float64
    ...

    long_name :

    area of t-cells

    units :

    meters^2

    [1555200 values with dtype=float64]

  • tmask
    (ny, nx)
    float64
    ...

    long_name :

    ocean fraction at t-cell centers

    units :

    none

    [1555200 values with dtype=float64]

  • angle
    (ny, nx)
    float64
    ...

    long_name :

    angle grid makes with latitude line

    units :

    degrees

    [1555200 values with dtype=float64]

  • depth
    (ny, nx)
    float64
    ...

    long_name :

    depth at h points

    units :

    meters

    [1555200 values with dtype=float64]

  • ar
    (ny, nx)
    float64
    ...

    long_name :

    grid aspect ratio (dyt/dxt)

    units :

    none

    [1555200 values with dtype=float64]

  • egs
    (ny, nx)
    float64
    ...

    long_name :

    grid effective grid spacing

    units :

    degrees

    [1555200 values with dtype=float64]

• Attributes: (4)

  Description :

  CESM MOM6 1/4 degree grid

  Author :

  Frank, Fred, Gustavo (gmarques@ucar.edu)

  Created :

  2022-12-27T10:20:11.076318

  type :

  Glogal 1/4 degree grid file

infile = '/glade/campaign/cgd/oce/datasets/obs/mld/deBoyer_2004/mld_DR003_c1m_reg2.0.nc'
ds_in = xr.open_dataset(infile, decode_times=False)

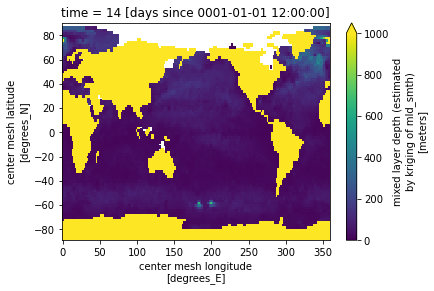

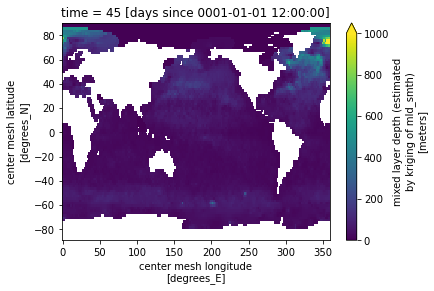

ds_in.mld[0,:].plot(vmin=0, vmax=1000);

# mask bad values
for t in range(len(ds_in.time)):
    tmp = np.nan_to_num(ds_in.mld[t,:].values, copy=True, posinf=0, neginf=0)
    ds_in['mld'][t,:,:] = tmp #.where(tmp == tmp).where(tmp>=0).where(tmp<1.0e6)

ds_in.mld[1,:].where(ds_in.mask==1).plot(vmin=0, vmax=1000)

<matplotlib.collections.QuadMesh at 0x2b50104d2a60>

def regrid_mld(fld, ds_in, ds_out, method='bilinear'):

    regrid = xesmf.Regridder(
        ds_in,
        ds_out,
        method=method,
        periodic=True,
    )
    fld_out = regrid(ds_in[fld])
    return fld_out

ds_out = regrid_mld('mld', ds_in, ds_out).rename('mld')

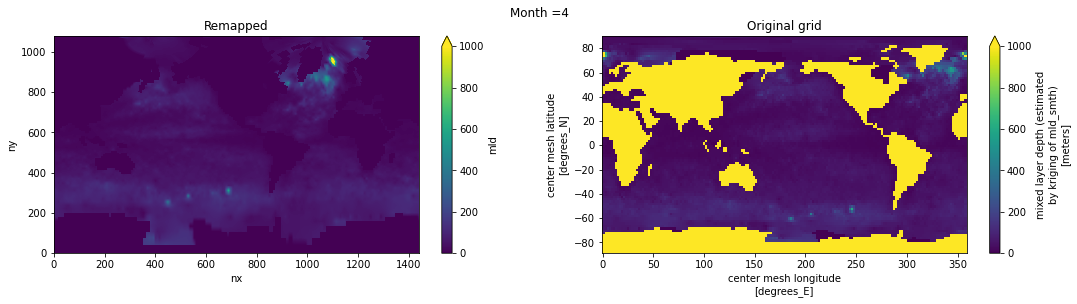

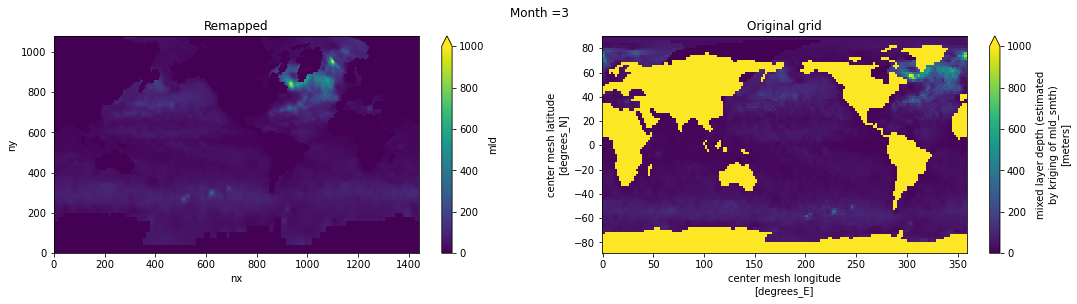

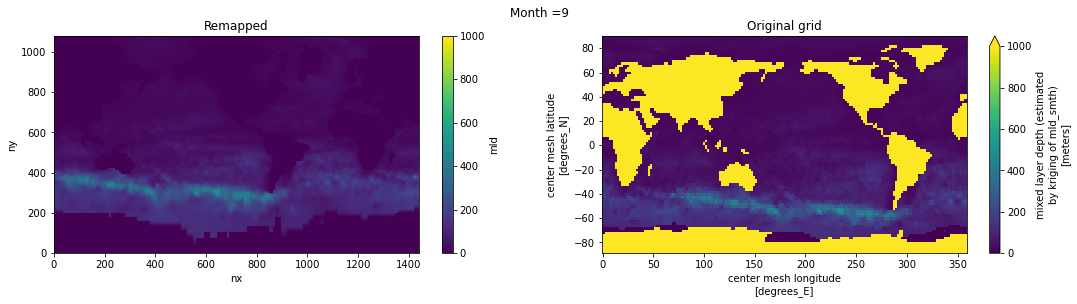

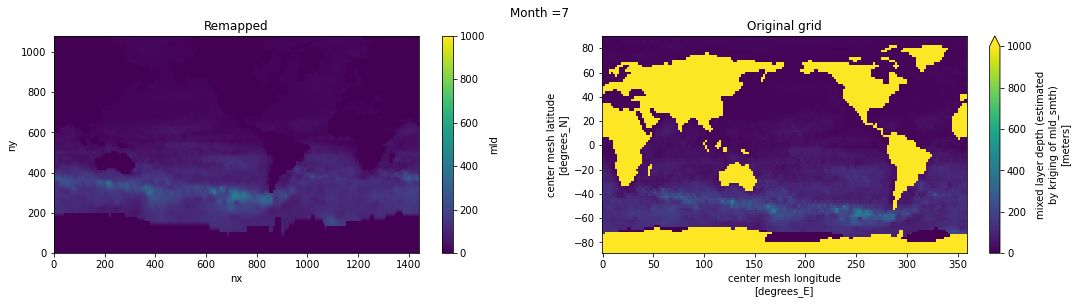

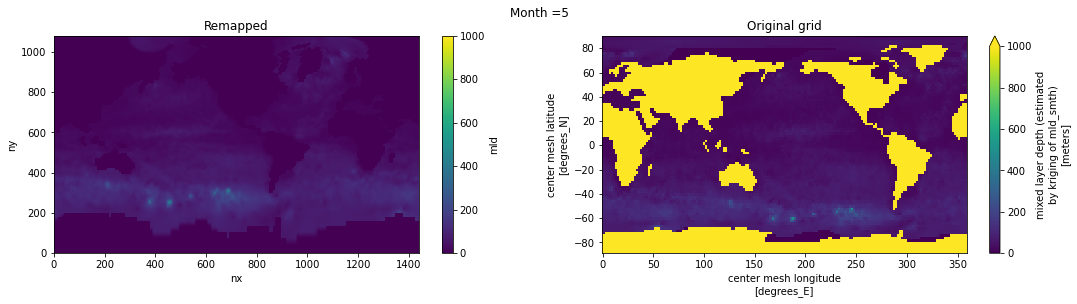

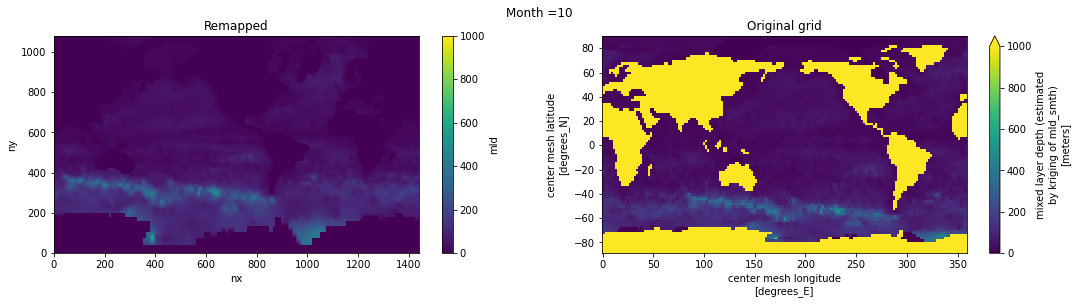

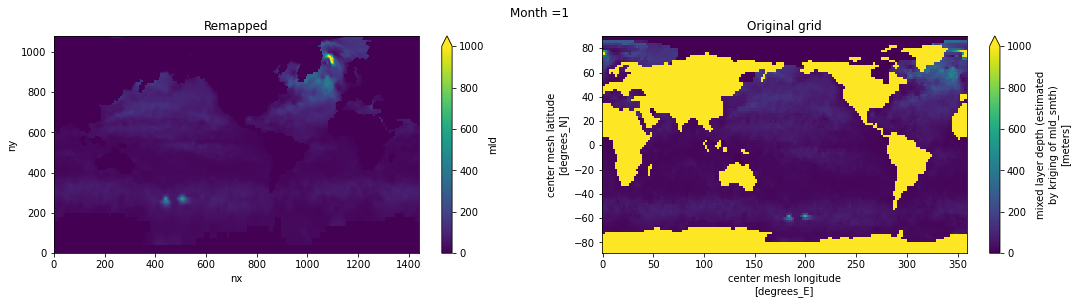

Visual inspection

Make sure original and remapped plots look similar.

# visual inspection. Make sure original and remapped plots look similar
for t in range(len(ds_in.time)):
  fig, axes = plt.subplots(nrows=1, ncols=2, figsize=(18,4))
  ds_out[t,:,:].plot.pcolormesh(ax=axes[0], vmin=0,vmax=1000)
  ds_in['mld'][t,:,:].plot.pcolormesh(ax=axes[1], vmin=0,vmax=1000)
  axes[0].set_title('Remapped')
  axes[1].set_title('Original grid')
  plt.suptitle('Month ='+ str(t+1))

ds_out.attrs['author'] = 'Gustavo Marques (gmarques@ucar.edu)'
ds_out.attrs['description'] = 'MLD using density criterion of 0.03 kg/m3 difference (de Boyer Montegut et al., JGR 2004)'
ds_out.attrs['date'] = datetime.now().isoformat()
ds_out.attrs['infile'] = infile
ds_out.attrs['url'] = 'https://github.com/NCAR/tx1_4/mld/deBoyer2004/'
# save
fname = 'deBoyer04_MLD_remapped_to_tx1_4.nc'
ds_out.to_netcdf(fname)
