The Community Aerosol and Radiation Model for Atmospheres, CARMA, can be configured and run through musica. This tutorial walks through creating two small carma test..

First, we need to import our packages

[1]:

import musica
import ussa1976
import numpy as np
import matplotlib.pyplot as plt
import xarray as xr
from musica.constants import GAS_CONSTANT
import musica.mechanism_configuration as mc
import pandas as pd

Sulfates with gas-phase concentrations from a box model#

Now we are going to get really fancy and solve the gas phase with MICM and feed those values into CARMA. First up we will create a gas-phase mechanism.

[17]:

MOLEC_CM3_TO_MOLE_M3 = np.float64(1.0e6) / np.float64(6.022e23)  # Convert from molecules/cm³ to moles/m³
NUMBER_OF_GRID_CELLS = 120  # Number of grid cells for the simulation
NUMBER_OF_AEROSOL_SECTIONS = 38  # Number of aerosol sections for the simulation
DENSITY_SULFATE = np.float64(1923.0)  # Density of sulfate in kg/m³
MOLECULAR_MASS_H2O = np.float64(0.01801528)  # kg/mol
MOLECULAR_MASS_H2SO4 = np.float64(0.098078479)  # kg/mol
MOLECULAR_MASS_AIR = np.float64(0.029)  # kg/mol (average molecular mass of air)


def create_mechanism():
    """
    Creates a chemical mechanism for the gas-phase reactions involved in sulfate formation.
    """
    HO2 = mc.Species(name="HO2")
    H2O2 = mc.Species(name="H2O2")
    OH = mc.Species(name="OH", constant_mixing_ratio_mol_mol=0.8e-11)
    SO2 = mc.Species(name="SO2")
    SO3 = mc.Species(name="SO3")
    H2SO4 = mc.Species(name="H2SO4")
    H2O = mc.Species(name="H2O")
    M = mc.Species(name="M", is_third_body=True)

    gas = mc.Phase(name="gas", species=[HO2, H2O2, OH, SO2, SO3, H2SO4, H2O, M])

    rxn_2HO2_H2O2 = mc.Arrhenius(
        name="2HO2 -> H2O2",
        reactants=[HO2, HO2],
        products=[H2O2],
        gas_phase=gas,
        A=3.0e-13 / MOLEC_CM3_TO_MOLE_M3,
        Ea=-6.35099e-21)

    rxn_2HO2_M_H2O2 = mc.Arrhenius(
        name="2HO2 + M -> H2O2",
        reactants=[HO2, HO2, M],
        products=[H2O2],
        gas_phase=gas,
        A=2.1e-33 / (MOLEC_CM3_TO_MOLE_M3**2),
        Ea=-1.2702e-20)

    rxn_2HO2_H2O_H2O2 = mc.Arrhenius(
        name="2H2O2 + H2O -> H2O2 + H2O",
        reactants=[HO2, HO2, H2O],
        products=[H2O2, H2O],
        gas_phase=gas,
        A=4.2e-34 / (MOLEC_CM3_TO_MOLE_M3**2),
        Ea=-3.67253e-20)

    rxn_2HO2_H2O_M_H2O2 = mc.Arrhenius(
        name="2HO2 + H2O + M -> H2O2 + H2O",
        reactants=[HO2, HO2, H2O, M],
        products=[H2O2, H2O],
        gas_phase=gas,
        A=2.94e-54 / (MOLEC_CM3_TO_MOLE_M3**3),
        Ea=-4.30762e-20)

    rxn_H2O2_OH_HO2_H2O = mc.Arrhenius(
        name="H2O2 + OH -> HO2 + H2O",
        reactants=[H2O2, OH],
        products=[HO2, H2O],
        gas_phase=gas,
        A=1.8e-12 / MOLEC_CM3_TO_MOLE_M3)

    rxn_SO2_OH_SO3_HO2 = mc.Troe(
        name="SO2 + OH -> SO3 + HO2",
        reactants=[SO2, OH],
        products=[SO3, HO2],
        gas_phase=gas,
        k0_A=2.9e-31 / MOLEC_CM3_TO_MOLE_M3,
        k0_B=-4.1,
        kinf_A=1.7e-12 / MOLEC_CM3_TO_MOLE_M3,
        kinf_B=-0.2)

    rxn_SO3_2H2O_H2SO4_H2O = mc.Arrhenius(
        name="SO3 + 2H2O -> H2SO4 + H2O",
        reactants=[SO3, H2O, H2O],
        products=[H2SO4, H2O],
        gas_phase=gas,
        A=8.5e-41 / (MOLEC_CM3_TO_MOLE_M3**2),
        C=6540.0)

    rxn_SO2 = mc.Emission(
        name="SO2",
        products=[SO2],
        gas_phase=gas
    )

    return mc.Mechanism(
        name="Sulfate Box Model",
        phases=[gas],
        reactions=[
            rxn_2HO2_H2O2,
            rxn_2HO2_M_H2O2,
            rxn_2HO2_H2O_H2O2,
            rxn_2HO2_H2O_M_H2O2,
            rxn_H2O2_OH_HO2_H2O,
            rxn_SO2_OH_SO3_HO2,
            rxn_SO3_2H2O_H2SO4_H2O,
            rxn_SO2
        ],
        species=[HO2, H2O2, OH, SO2, SO3, H2SO4, H2O, M]
    )

Next we will setup the carma solver. This is very similar to before.

[18]:

def create_carma_solver():
    """
    Creates a CARMA solver with the sulfate box model configuration.
    """
    params = musica.CARMAParameters()
    params.nz = NUMBER_OF_GRID_CELLS
    params.nbin = NUMBER_OF_AEROSOL_SECTIONS

    # Set up a group for sulfate particles
    sulfate_group = musica.carma.CARMAGroupConfig(
        name="sulfate",
        shortname="SULF",
        rmin=2.0e-10,  # Minimum radius in meters
        rmrat=2.0,  # Radius ratio for the group
        swelling_approach={
            "algorithm": musica.carma.ParticleSwellingAlgorithm.WEIGHT_PERCENT_H2SO4,
            "composition": musica.carma.ParticleSwellingComposition.NONE
        },
        is_sulfate=True,
        do_drydep=True,
    )
    params.groups.append(sulfate_group)

    # Set up an element for sulfate
    sulfate_element = musica.carma.CARMAElementConfig(
        name="Sulfate",
        shortname="SULF",
        rho=DENSITY_SULFATE,  # Density in kg/m³
        itype=musica.carma.ParticleType.VOLATILE,
        icomposition=musica.carma.ParticleComposition.SULFURIC_ACID,
        igroup=1,  # Group index for sulfate
    )
    params.elements.append(sulfate_element)

    # Set up gases for water and sulfuric acid
    water = musica.carma.CARMAGasConfig(
        name="Water Vapor",
        shortname="H2O",
        wtmol=MOLECULAR_MASS_H2O,  # Molar mass of water in kg/mol
        ivaprtn=musica.carma.VaporizationAlgorithm.H2O_MURPHY_2005,
        icomposition=musica.carma.GasComposition.H2O,
        dgc_threshold=0.1,
        ds_threshold=0.1,
    )
    params.gases.append(water)

    h2so4 = musica.carma.CARMAGasConfig(
        name="Sulfuric Acid",
        shortname="H2SO4",
        wtmol=MOLECULAR_MASS_H2SO4,  # Molar mass of sulfuric acid in kg/mol
        ivaprtn=musica.carma.VaporizationAlgorithm.H2SO4_AYERS_1980,
        icomposition=musica.carma.GasComposition.H2SO4,
        dgc_threshold=0.1,
        ds_threshold=0.1,
    )
    params.gases.append(h2so4)

    # Add microphysical processes
    h2so4_uptake = musica.carma.CARMAGrowthConfig(
        ielem=1,  # Element index for sulfate
        igas=2,  # Gas index for sulfuric acid
    )
    params.growths.append(h2so4_uptake)

    nucleation = musica.carma.CARMANucleationConfig(
        ielemfrom=1,  # Element index for sulfate
        ielemto=1,  # Element index for sulfuric acid
        igas=2,  # Gas index for sulfuric acid
        algorithm=musica.carma.ParticleNucleationAlgorithm.HOMOGENEOUS_NUCLEATION,
    )
    params.nucleations.append(nucleation)

    coagulation = musica.carma.CARMACoagulationConfig(
        igroup1=1,  # Group index for sulfate (from)
        igroup2=1,  # Group index for sulfate (from)
        igroup3=1,  # Group index for sulfate (to)
        algorithm=musica.carma.ParticleCollectionAlgorithm.FUCHS,
    )
    params.coagulations.append(coagulation)

    # Set initialization options
    params.initialization.do_substep = True
    params.initialization.do_thermo = True
    params.initialization.maxretries = 16
    params.initialization.maxsubsteps = 32
    params.initialization.dt_threshold = 1.0
    params.initialization.sulfnucl_method = musica.carma.SulfateNucleationMethod.ZHAO_TURCO.value

    return musica.CARMA(params)

Similarly, we’ll get some conditions.

[19]:

def get_initial_conditions():
    """
    Initializes and returns the environmental conditions and chemical species concentrations
    for a box model simulation.
    Returns:
      tuple:
        - environmental_conditions (dict): Dictionary containing arrays for temperature (K)
          and pressure (Pa) for each grid cell.
        - initial_concentrations (dict): Dictionary containing arrays for the initial
          concentrations (in mol/m^3) of chemical species ('HO2', 'H2O2', 'OH', 'SO2', 'SO3',
          'H2SO4', 'H2O', 'M') for each grid cell.
    Notes:
      - The number of grid cells is determined by the constant NUMBER_OF_GRID_CELLS.
      - Concentrations are calculated using the conversion factor MOLEC_CM3_TO_MOLE_M3.
      - Some species are initialized to zero concentration.
    """

    # Set up the vertical grid in CARMA
    zmin = np.float64(0.0)
    deltaz = np.float64(100.0)
    grid = {
        "vertical_center": zmin + (np.arange(NUMBER_OF_GRID_CELLS, dtype=np.float64) + 0.5) * deltaz,
        "vertical_levels": zmin + np.arange(NUMBER_OF_GRID_CELLS + 1, dtype=np.float64) * deltaz
    }

    centered_variables = ussa1976.compute(z=grid["vertical_center"], variables=["t", "p"])
    edge_variables = ussa1976.compute(z=grid["vertical_levels"], variables=["p"])
    centered_variables["rho"] = centered_variables["p"] / (GAS_CONSTANT * centered_variables["t"])
    environmental_conditions = {
        "temperature": np.array(centered_variables["t"], dtype=np.float64),
        "pressure": np.array(centered_variables["p"], dtype=np.float64),
        "pressure levels": np.array(edge_variables["p"], dtype=np.float64),
        "air density": np.array(centered_variables["rho"], dtype=np.float64)
    }

    initial_concentrations = {
        "HO2": environmental_conditions["air density"] * 80.0e-12,
        "H2O2": environmental_conditions["air density"] * 1.0e-9,
        "SO2": environmental_conditions["air density"] * 0.15e-9,
        "SO3": np.zeros(NUMBER_OF_GRID_CELLS, dtype=np.float64),
        "H2SO4": np.zeros(NUMBER_OF_GRID_CELLS, dtype=np.float64),
        "H2O": environmental_conditions["air density"] * 0.004,
    }
    return grid, environmental_conditions, initial_concentrations

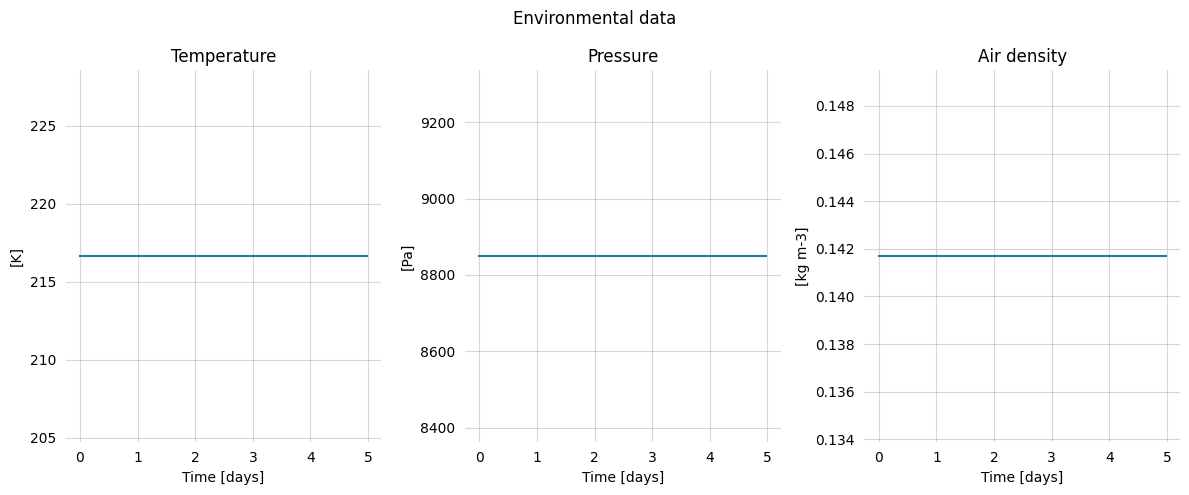

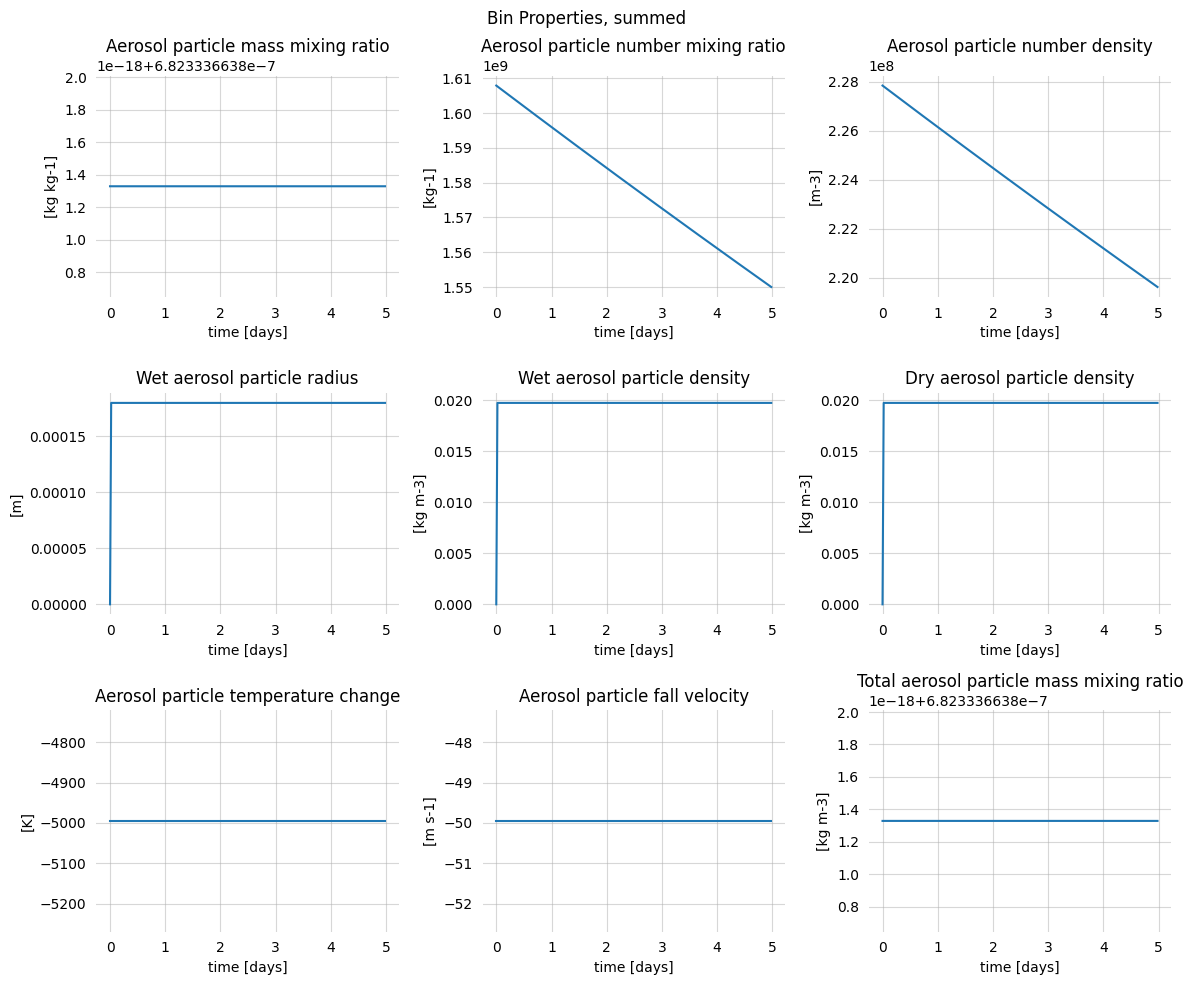

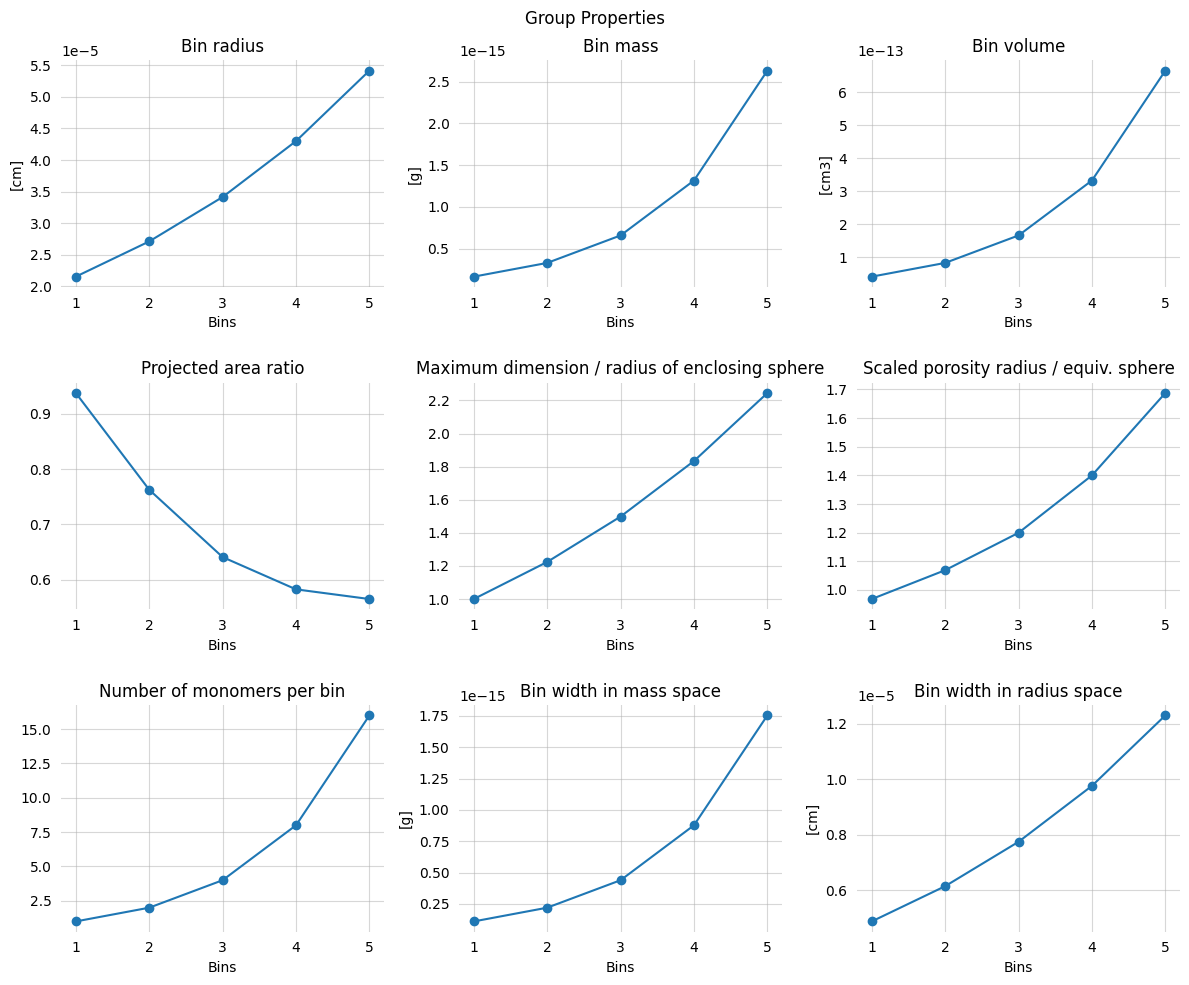

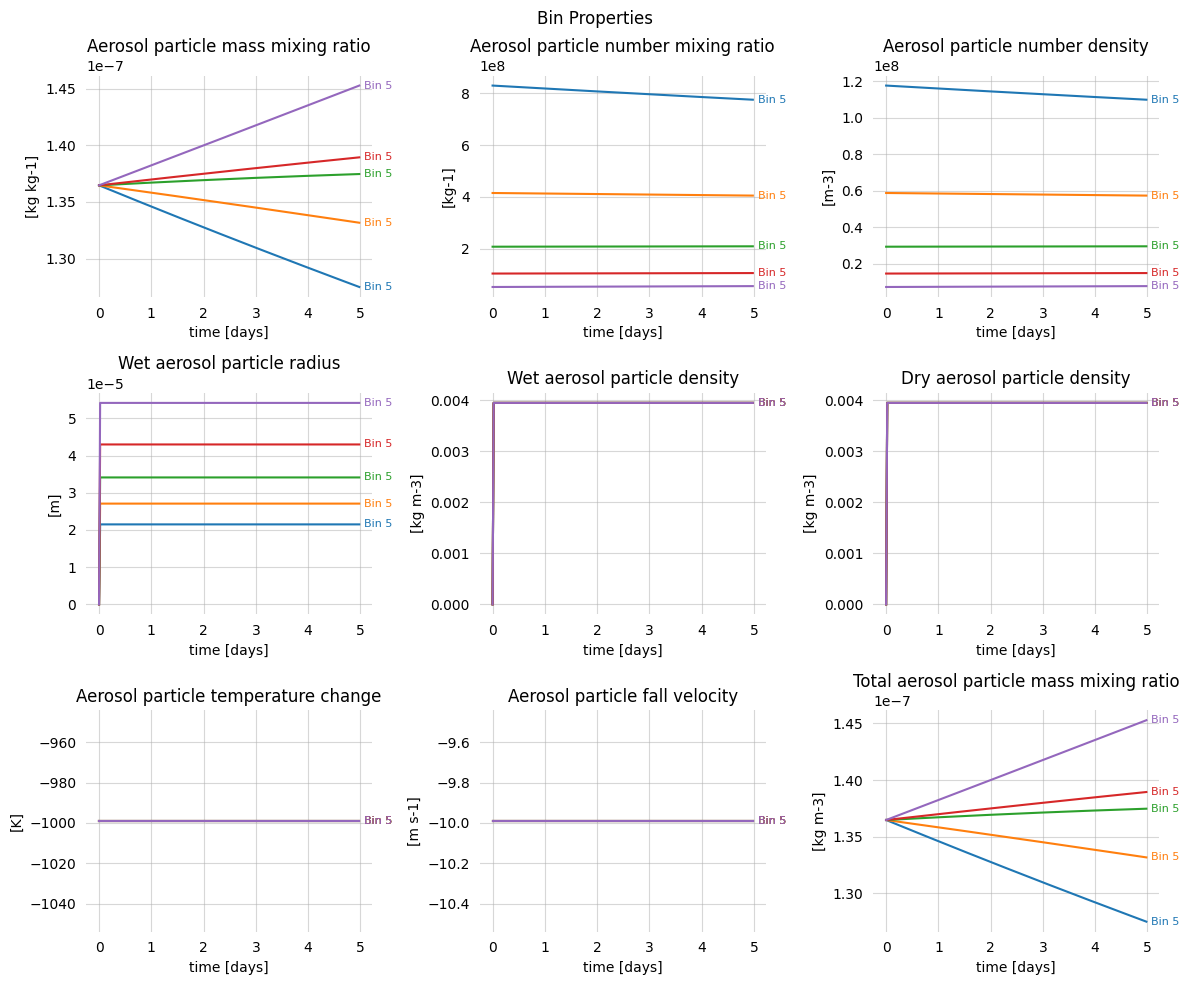

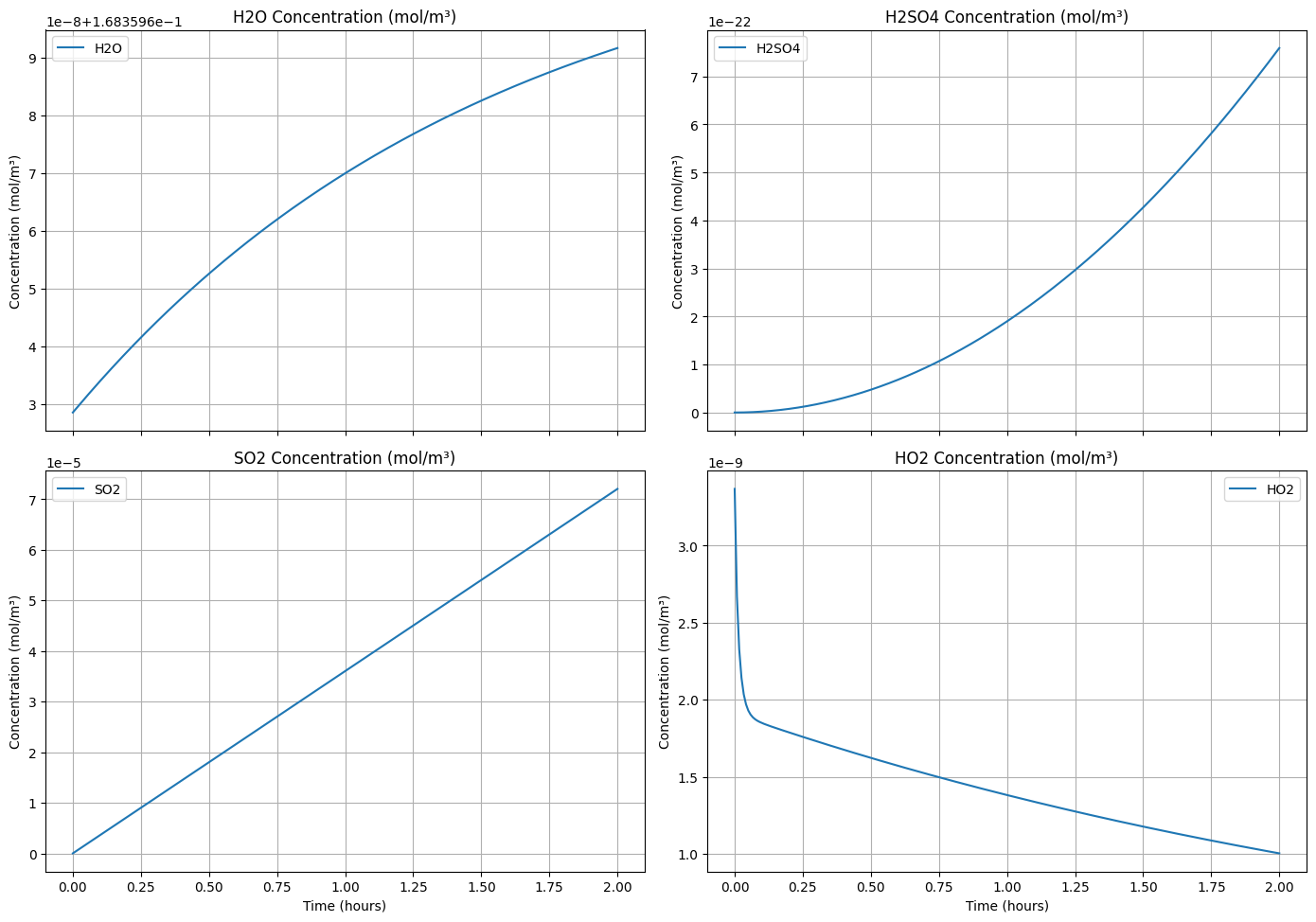

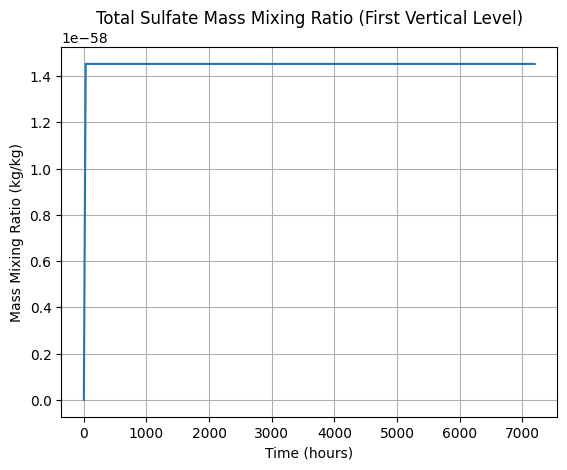

Finally, we’ll run the box model and plot some results

[20]:

def run_box_model():
    # Create the mechanism and solvers
    mechanism = create_mechanism()
    solver = musica.MICM(mechanism=mechanism, solver_type=musica.SolverType.rosenbrock_standard_order)
    state = solver.create_state(number_of_grid_cells=NUMBER_OF_GRID_CELLS)

    carma = create_carma_solver()

    # Set initial conditions
    grid, environmental_conditions, initial_concentrations = get_initial_conditions()
    state.set_conditions(environmental_conditions["temperature"], environmental_conditions["pressure"])
    state.set_concentrations(initial_concentrations)
    state.set_user_defined_rate_parameters({"EMIS.SO2": np.full(NUMBER_OF_GRID_CELLS, 1.0e-8, dtype=np.float64)})

    # Run the simulation for 6 hours with a timestep of 30 seconds
    time_hours = 2.0
    time_seconds = time_hours * np.float64(3600.0)
    dt = np.float64(30.0)
    num_steps = int(time_seconds / dt)

    # Initialize combined state arrays
    concentrations = [state.get_concentrations()]
    current_temperature = environmental_conditions["temperature"].copy()
    bin_state = None

    # Set up additional CARMA state arrays
    satliq_h2o = np.full(NUMBER_OF_GRID_CELLS, -1.0, dtype=np.float64)
    satice_h2o = np.full(NUMBER_OF_GRID_CELLS, -1.0, dtype=np.float64)
    satliq_h2so4 = np.full(NUMBER_OF_GRID_CELLS, -1.0, dtype=np.float64)
    satice_h2so4 = np.full(NUMBER_OF_GRID_CELLS, -1.0, dtype=np.float64)
    last_h2so4_mmr = np.zeros(NUMBER_OF_GRID_CELLS, dtype=np.float64)

    for i_time in range(num_steps):
        state.set_conditions(temperatures=current_temperature, pressures=environmental_conditions["pressure"])
        solver.solve(state, dt)
        micm_output = state.get_concentrations()

        h2so4_mmr = np.array(micm_output["H2SO4"], dtype=np.float64) * MOLECULAR_MASS_H2SO4 / \
            (environmental_conditions["air density"] * MOLECULAR_MASS_AIR)
        h2o_mmr = np.array(micm_output["H2O"], dtype=np.float64) * MOLECULAR_MASS_H2O / \
            (environmental_conditions["air density"] * MOLECULAR_MASS_AIR)

        carma_state = carma.create_state(
            vertical_center=grid["vertical_center"],
            vertical_levels=grid["vertical_levels"],
            temperature=current_temperature,
            pressure=environmental_conditions["pressure"],
            pressure_levels=environmental_conditions["pressure levels"],
            time=i_time * dt,
            time_step=dt,
            latitude=-40.0,
            longitude=-105.0,
            specific_humidity=h2o_mmr,
        )

        if bin_state is None:
            bin_state = carma_state.get_bins()
            bin_state = bin_state.expand_dims({"time": [0.0]}).copy(deep=True)
            bin_state["mass_mixing_ratio"].values[0, :, :, :] = 0.0

        for i_bin in range(NUMBER_OF_AEROSOL_SECTIONS):
            carma_state.set_bin(
                bin_index=i_bin + 1,
                element_index=1,  # Sulfate element index
                value=bin_state.isel(time=i_time, bin=i_bin, element=0)["mass_mixing_ratio"].values,
            )

        carma_state.set_gas(
            gas_index=1,  # Water vapor gas index
            value=h2o_mmr,
            old_mmr=h2o_mmr,
            gas_saturation_wrt_liquid=satliq_h2o,
            gas_saturation_wrt_ice=satice_h2o
        )
        carma_state.set_gas(
            gas_index=2,  # Sulfuric acid gas index
            value=h2so4_mmr,
            old_mmr=last_h2so4_mmr,
            gas_saturation_wrt_liquid=satliq_h2so4,
            gas_saturation_wrt_ice=satice_h2so4
        )
        last_h2so4_mmr = h2so4_mmr

        carma_state.step()

        # Get updated state data from CARMA
        bin_state = xr.concat([bin_state, carma_state.get_bins().expand_dims(
            {"time": [(i_time + 1) * dt]})], dim="time")

        gas_state, gas_index = carma_state.get_gases()
        micm_output["H2O"] = np.array(
            gas_state.isel(
                gas=gas_index["H2O"])["gas_mass_mixing_ratio"],
            dtype=np.float64) * environmental_conditions["air density"] * MOLECULAR_MASS_AIR / MOLECULAR_MASS_H2O
        micm_output["H2SO4"] = np.array(
            gas_state.isel(
                gas=gas_index["H2SO4"])["gas_mass_mixing_ratio"],
            dtype=np.float64) * environmental_conditions["air density"] * MOLECULAR_MASS_AIR / MOLECULAR_MASS_H2SO4

        # save concentrations for output
        concentrations.append(micm_output)

        # prepare for next time step
        current_temperature = carma_state.get_environmental_values()["temperature"]
        state.set_concentrations({
            "H2O": micm_output["H2O"],
            "H2SO4": micm_output["H2SO4"]
        })

    # Collect output data
    concentrations = pd.DataFrame(concentrations)
    times = np.arange(num_steps + 1) * dt / 3600.0  # Time in hours

    return concentrations, times, bin_state

def plot_results(concentrations, times, sulfate_data=None):
    """Plots the results of the sulfate box model simulation.
    Args:
        concentrations (pd.DataFrame): DataFrame containing the concentrations of chemical species over time.
        times (np.ndarray): Array of time values corresponding to the concentrations.
        sulfate_data (xr.Dataset): xarray Dataset containing CARMA sulfate data over time.
    """

    # Create a 4-panel plot for H2O, H2SO4, SO2, and HO2 concentrations over time at the first grid cell
    fig, axs = plt.subplots(2, 2, figsize=(14, 10), sharex=True)
    species = ["H2O", "H2SO4", "SO2", "HO2"]
    titles = [
        "H2O Concentration (mol/m³)",
        "H2SO4 Concentration (mol/m³)",
        "SO2 Concentration (mol/m³)",
        "HO2 Concentration (mol/m³)"
    ]
    for ax, specie, title in zip(axs.flat, species, titles):
        conc = np.array([row[0] for row in [c[specie] for _, c in concentrations.iterrows()]])
        ax.plot(times, conc, label=specie)
        ax.set_title(title)
        ax.set_ylabel("Concentration (mol/m³)")
        ax.legend()
        ax.grid()
    for ax in axs[1]:
        ax.set_xlabel("Time (hours)")
    plt.tight_layout()
    plt.show()

    # Plot total sulfate mass mixing ratio (sum over all bins) over time at the first vertical level
    if sulfate_data is not None and hasattr(sulfate_data, "mass_mixing_ratio"):
        total_mmr = sulfate_data["mass_mixing_ratio"].isel(vertical_center=0).sum(dim="bin")
        total_mmr.plot(x="time")
        plt.title("Total Sulfate Mass Mixing Ratio (First Vertical Level)")
        plt.ylabel("Mass Mixing Ratio (kg/kg)")
        plt.xlabel("Time (hours)")
        plt.grid()
        plt.show()
    else:
        print("SULFATE data structure:", sulfate_data)
        if sulfate_data is not None:
            print(
                "Available variables:",
                list(
                    sulfate_data.data_vars) if hasattr(
                    sulfate_data,
                    'data_vars') else "No data_vars available")
            print(
                "Available dimensions:",
                list(
                    sulfate_data.dims) if hasattr(
                    sulfate_data,
                    'dims') else "No dims available")
        else:
            print("No SULFATE data available")

[21]:

concs, plot_times, sulfate_data = run_box_model()
plot_results(concs, plot_times, sulfate_data)

Aluminum#

Sulfate#

Sulfates with gas-phase concentrations from a box model#
