Benchmark CESM2 LENS access from AWS origin

import intake
import numpy as np
import pandas as pd
import xarray as xr
import re
import aiohttp
import time
from contextlib import contextmanager
import matplotlib.pyplot as plt
import seaborn as sns

import fsspec.implementations.http as fshttp
from pelicanfs.core import PelicanFileSystem, PelicanMap, OSDFFileSystem

import dask
from dask_jobqueue import PBSCluster
from dask.distributed import Client
from dask.distributed import performance_report

init_year0  = '1991'
init_year1  = '2020'
final_year0 = '2071'
final_year1 = '2100'

# # This overwrites the default scheduler with a single-threaded scheduler
# dask.config.set(scheduler='synchronous')

# File paths
rda_scratch = '/gpfs/csfs1/collections/rda/scratch/harshah'
#
rda_url        =  'https://data.rda.ucar.edu/'
intake_url     = rda_url + 'harshah/intake_catalogs/cesm2-lens-osdf/aws-cesm2-le.json'
aws_intake_url = 'https://raw.githubusercontent.com/NCAR/cesm2-le-aws/main/intake-catalogs/aws-cesm2-le.json'

USE_PBS_SCHEDULER = True

USE_DASK_GATEWAY = False

# Create a PBS cluster object
def get_pbs_cluster():
    """ Create cluster through dask_jobqueue.
    """
    from dask_jobqueue import PBSCluster
    cluster = PBSCluster(
        job_name = 'dask-osdf-24',
        cores = 1,
        memory = '4GiB',
        processes = 1,
        local_directory = rda_scratch + '/dask/spill',
        log_directory = rda_scratch + '/dask/logs/',
        resource_spec = 'select=1:ncpus=1:mem=4GB',
        queue = 'casper',
        walltime = '3:00:00',
        #interface = 'ib0'
        interface = 'ext'
    )
    return cluster

def get_gateway_cluster():
    """ Create cluster through dask_gateway
    """
    from dask_gateway import Gateway

    gateway = Gateway()
    cluster = gateway.new_cluster()
    cluster.adapt(minimum=2, maximum=4)
    return cluster

def get_local_cluster():
    """ Create cluster using the Jupyter server's resources
    """
    from distributed import LocalCluster, performance_report
    cluster = LocalCluster()

    cluster.scale(4)
    return cluster

# Obtain dask cluster in one of three ways

if USE_PBS_SCHEDULER:
    cluster = get_pbs_cluster()
elif USE_DASK_GATEWAY:
    cluster = get_gateway_cluster()
else:
    cluster = get_local_cluster()

# Connect to cluster
from distributed import Client
client = Client(cluster)

# Scale the cluster and display cluster dashboard URL
# cluster.scale(4)
cluster

osdf_catalog   = intake.open_esm_datastore(intake_url)
https_catalog  = intake.open_esm_datastore(aws_intake_url)
osdf_catalog

osdf_catalog.df['path'].head().values

https_catalog.df['path'].head().values

osdf_catalog_temp   = osdf_catalog.search(variable ='TREFHTMX', frequency ='daily')
https_catalog_temp  = https_catalog.search(variable ='TREFHTMX', frequency ='daily')
https_catalog_temp

%%time
#dsets = osdf_catalog_temp.to_dataset_dict(storage_options={'anon':True})
dsets_osdf  = osdf_catalog_temp.to_dataset_dict()

dsets_https = https_catalog_temp.to_dataset_dict(storage_options={'anon':True})

%%time
dsets_osdf.keys()

ds_osdf    = dsets_osdf['atm.historical.daily.smbb']
ds_https   = dsets_https['atm.historical.daily.smbb']
#
ds_osdf    = ds_osdf.TREFHTMX
ds_https   = ds_https.TREFHTMX
ds_osdf

ds_osdf_1Kb  = ds_osdf.isel(lat=0,lon=0,member_id=0).isel(time=np.arange(260))
ds_https_1Kb = ds_https.isel(lat=0,lon=0,member_id=0).isel(time=np.arange(260))
# ds_osdf_1Kb

ds_osdf_1Mb  = ds_osdf.isel(time=0).isel(member_id =1+ np.arange(5))
ds_https_1Mb = ds_https.isel(time=0).isel(member_id =1+ np.arange(5))
# ds_osdf_1Mb

ds_osdf_10Mb  = ds_osdf.isel(member_id =6).isel(time=np.arange(48))
ds_https_10Mb = ds_https.isel(member_id =6).isel(time=np.arange(48))
# ds_osdf_10Mb

ds_osdf_100Mb  = ds_osdf.isel(member_id =7).isel(time=np.arange(480))
ds_https_100Mb = ds_https.isel(member_id =7).isel(time=np.arange(480))
# ds_osdf_100Mb

ds_osdf_200Mb  = ds_osdf.isel(member_id =7).isel(time=np.arange(480))
ds_https_200Mb = ds_https.isel(member_id =7).isel(time=np.arange(480))
ds_https_200Mb

ds_osdf_1Gb  = ds_osdf.isel(member_id  = 8 + np.arange(6)).isel(time = np.arange(810))
ds_https_1Gb = ds_https.isel(member_id = 8 + np.arange(6)).isel(time = np.arange(810))
ds_osdf_1Gb

ds_osdf_10Gb  = ds_osdf.isel(member_id  = 15)
ds_https_10Gb = ds_https.isel(member_id = 15)
ds_osdf_10Gb

# Define file path for CSV
csv_file_path = "aws_uswest2_benchmark_withdask.csv"

ds_osdf_list  = [ds_osdf_1Kb,ds_osdf_1Mb,ds_osdf_10Mb,ds_osdf_100Mb,ds_osdf_1Gb]
ds_https_list = [ds_https_1Kb,ds_https_1Mb,ds_https_10Mb,ds_https_100Mb,ds_https_1Gb]

# Number of data access calls
num_calls = 8  # Modify this as needed
n_workers = 4  # Set this to your preferred number of workers

# DiagnosticTimer class to keep track of runtimes
class DiagnosticTimer:
    def __init__(self):
        self.diagnostics = []

    @contextmanager
    def time(self, **kwargs):
        tic = time.time()
        yield
        toc = time.time()
        kwargs["runtime"] = toc - tic
        self.diagnostics.append(kwargs)

    def dataframe(self):
        return pd.DataFrame(self.diagnostics)

# Initialize the DiagnosticTimer
diag_timer = DiagnosticTimer()

# Function to check existing CSV file and determine missing runs
def load_existing_results():
    if os.path.exists(csv_file_path):
        # Load existing CSV into DataFrame
        existing_df = pd.read_csv(csv_file_path)
    else:
        # Create an empty DataFrame if the file does not exist
        existing_df = pd.DataFrame(columns=["dataset_size", "protocol", "call_number", "runtime", "MBps"])
    return existing_df

def filter_missing_runs(datasets, protocol_name, existing_df):
    # Convert dataset sizes to MB for checking, using a list of tuples
    dataset_sizes_mb = [(dataset, dataset.nbytes / (1024 ** 2)) for dataset in datasets]

    # Identify missing dataset sizes and calls
    filtered_datasets = []
    for dataset, dataset_size_mb in dataset_sizes_mb:
        for call_num in range(1, num_calls + 1):
            # Check if this dataset size and call number combination already exists
            if not ((existing_df["dataset_size"] == dataset_size_mb) &
                    (existing_df["protocol"] == protocol_name) &
                    (existing_df["call_number"] == call_num)).any():
                filtered_datasets.append((dataset, dataset_size_mb, call_num))

    return filtered_datasets

def benchmark_protocol(datasets, protocol_name, cluster=None):
    existing_df = load_existing_results()  # Load existing results as a checkpoint

    # Filter for missing runs based on existing results
    missing_runs = filter_missing_runs(datasets, protocol_name, existing_df)
    diag_timer = DiagnosticTimer()  # Initialize the diagnostic timer

    # Process each dataset and call
    for (dataset, dataset_size_mb, call_num) in missing_runs:
        # Restart the Dask cluster if provided
        if cluster is not None:
            cluster.scale(0)  # Scale down to release worker memory
            cluster.scale(n_workers)  # Scale up to required number of workers
            client.wait_for_workers(n_workers)  # Wait for workers to be ready

        # Inform the start of processing for this dataset and call
        print(f"Starting processing of dataset for protocol '{protocol_name}' (Size: {dataset_size_mb} MB) in call {call_num}")

        # Only count the time for loading dataset into memory
        dataset_copy = dataset.copy()
        with diag_timer.time(dataset_size=dataset_size_mb, protocol=protocol_name, call_number=call_num):
            dataset_copy.load()  # Load the dataset into memory

        # Convert the single call result to a DataFrame and add MBps column
        call_result_df = diag_timer.dataframe().iloc[[-1]].copy()  # Get the latest diagnostic entry
        call_result_df["MBps"] = call_result_df["dataset_size"] / call_result_df["runtime"]

        # Append this call's result to CSV
        call_result_df.to_csv(csv_file_path, mode='a', header=not os.path.exists(csv_file_path), index=False)
        print(f"Appended results for protocol '{protocol_name}', call {call_num} to '{csv_file_path}'")

        # Print statement after finishing each call
        print(f"Finished processing dataset for protocol '{protocol_name}' in call {call_num}")

# Run benchmark for each protocol
benchmark_protocol(ds_https_list, "HTTPS-only",cluster)
benchmark_protocol(ds_osdf_list, "OSDF-director",cluster)

# Convert diagnostics to a DataFrame for analysis
df_diagnostics = diag_timer.dataframe()

# Calculate MB/s for each run
df_diagnostics['MBps'] = df_diagnostics['dataset_size'] / df_diagnostics['runtime']
df_diagnostics

# Plotting MBps vs data size for each protocol and call type
# Define different alpha values for each protocol
alpha_values = {"HTTPS-only": 0.8, "OSDF-director": 0.5}  # Adjust transparency as needed
marker_style = {"HTTPS-only": "o", "OSDF-director": "x"}  # Define different markers for each protocol
#
fig, ax = plt.subplots(figsize=(10, 6))
for protocol in ["HTTPS-only", "OSDF-director"]:
    # First access (call_number == 1)
    first_access = df_diagnostics[(df_diagnostics['protocol'] == protocol) & (df_diagnostics['call_number'] == 1)]
    ax.plot(first_access['dataset_size'], first_access['MBps'], label=f"{protocol} - First Access",
            alpha=alpha_values[protocol],marker=marker_style[protocol],markersize=8)

    # Subsequent access (call_number > 1)
    subsequent_access = df_diagnostics[(df_diagnostics['protocol'] == protocol) & (df_diagnostics['call_number'] > 1)]
    subsequent_access_avg = subsequent_access.groupby('dataset_size')['MBps'].mean()
    ax.plot(subsequent_access_avg.index, subsequent_access_avg.values,
            linestyle='--', label=f"{protocol} - Subsequent Access (Avg)",alpha=alpha_values[protocol],marker=marker_style[protocol],markersize=8)

# Customize plot appearance
ax.set_xlabel("Data Size (MB)")
ax.set_ylabel("Data Access Speed (MBps)")
ax.set_title("AWS US-west-2 origin benchmark")
ax.legend()
plt.show()

# Convert dataset size to categorical to control the order in the plot
df_diagnostics['dataset_size'] = df_diagnostics['dataset_size'].astype("category")

# Set the order for dataset sizes to appear in ascending order
size_order = sorted(df_diagnostics['dataset_size'].unique())

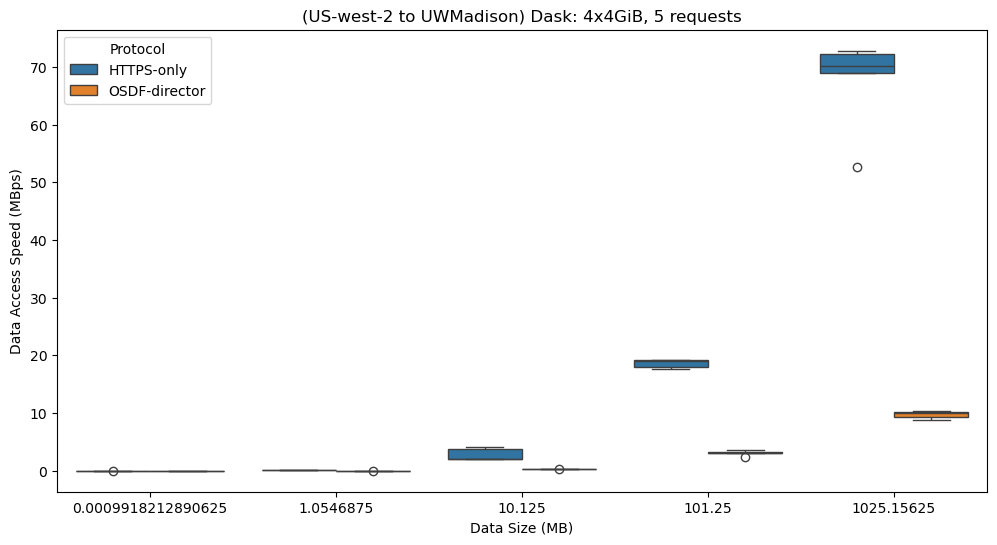

# Create the box plot
plt.figure(figsize=(12, 6))
sns.boxplot(
    data=df_diagnostics,
    x="dataset_size",
    y="MBps",
    hue="protocol",
    order=size_order
)

# Customize plot appearance
plt.xlabel("Data Size (MB)")
plt.ylabel("Data Access Speed (MBps)")
plt.title("(US-west-2 to UWMadison) Dask: 4x4GiB, 5 requests")
plt.legend(title="Protocol")
plt.show()

size_order = sorted(df_diagnostics['dataset_size'].unique())
size_order

###########################################################################

# #Try using a specific cache
# sdsc_cache='https://sdsc-cache.nationalresearchplatform.org:8443/aws-opendata/us-west-2/ncar-cesm2-lens/atm/monthly/'+\
#             'cesm2LE-historical-smbb-TREFHTMX.zarr'

# %%time
# test_1 = xr.open_zarr(sdsc_cache).TREFHTMX.isel(time=0)
# test_1
