Access AWS CESM data and compute GMST

# Display output of plots directly in Notebook
%matplotlib inline
import warnings
warnings.filterwarnings("ignore")

import intake
import numpy as np
import pandas as pd
import xarray as xr
import s3fs
import seaborn as sns

import dask
from dask_jobqueue import PBSCluster
from dask.distributed import Client
from dask.distributed import performance_report

rda_scratch = '/gpfs/csfs1/collections/rda/scratch/harshah'

# Create a PBS cluster object
cluster = PBSCluster(
    job_name = 'dask-wk24-hpc',
    cores = 1,
    memory = '8GiB',
    processes = 1,
    local_directory = rda_scratch+'/dask/spill',
    resource_spec = 'select=1:ncpus=1:mem=8GB',
    queue = 'casper',
    walltime = '2:00:00',
    #interface = 'ib0'
    interface = 'ext'
)

# Open collection description file using intake
catalog_url = 'https://ncar-cesm-lens.s3-us-west-2.amazonaws.com/catalogs/aws-cesm1-le.json'
col         = intake.open_esm_datastore(catalog_url)
col

# Use s3fs
s3     = s3fs.S3FileSystem(anon=True)

# List top-level directories and files in the 'ncar-cesm2-lens' bucket
bucket_contents = s3.ls('ncar-cesm2-lens/atm/monthly')
print(bucket_contents)

['ncar-cesm2-lens/atm/monthly/', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-FLNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-FLNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-FLUT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-FSNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-FSNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-FSNTOA.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-ICEFRAC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-LHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-PRECC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-PRECL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-PRECSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-PRECSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-PS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-PSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-Q.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-SHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-T.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-TMQ.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-TREFHT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-TREFHTMN.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-TREFHTMX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-TS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-U.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-Z3.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-FLNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-FLNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-FLUT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-FSNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-FSNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-FSNTOA.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-ICEFRAC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-LHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-PRECC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-PRECL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-PRECSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-PRECSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-PS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-PSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-Q.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-SHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-T.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-TMQ.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-TREFHT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-TREFHTMN.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-TREFHTMX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-TS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-U.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-Z3.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-FLNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-FLNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-FLUT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-FSNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-FSNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-FSNTOA.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-ICEFRAC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-LHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-PRECC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-PRECL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-PRECSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-PRECSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-PS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-PSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-Q.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-SHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-T.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-TMQ.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-TREFHT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-TREFHTMN.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-TREFHTMX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-TS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-U.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-Z3.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-FLNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-FLNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-FLUT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-FSNS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-FSNSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-FSNTOA.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-ICEFRAC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-LHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-PRECC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-PRECL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-PRECSC.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-PRECSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-PS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-PSL.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-Q.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-SHFLX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-T.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-TMQ.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-TREFHT.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-TREFHTMN.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-TREFHTMX.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-TS.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-U.zarr', 'ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-smbb-Z3.zarr']

# Get data for the members which use the cmip6 prescription for biomass burning
store_hist_cmip6  = s3fs.S3Map(root='ncar-cesm2-lens/atm/monthly/cesm2LE-historical-cmip6-TREFHT.zarr', s3=s3)
hist_cmip6     = xr.open_zarr(store_hist_cmip6)['TREFHT']
hist_cmip6

# Get the corresponding future data which uses ssp370 pathway
store_ssp370_cmip6  = s3fs.S3Map(root='ncar-cesm2-lens/atm/monthly/cesm2LE-ssp370-cmip6-TREFHT.zarr', s3=s3)
ssp370_cmip6     = xr.open_zarr(store_ssp370_cmip6)['TREFHT']
ssp370_cmip6

Merge the data¶

ds_cmip6 = xr.concat([hist_cmip6,ssp370_cmip6],dim='time')
ds_cmip6

# GMST function ###
# calculate global means

def get_lat_name(ds):
    for lat_name in ['lat', 'latitude']:
        if lat_name in ds.coords:
            return lat_name
    raise RuntimeError("Couldn't find a latitude coordinate")

def global_mean(ds):
    lat = ds[get_lat_name(ds)]
    weight = np.cos(np.deg2rad(lat))
    weight /= weight.mean()
    other_dims = set(ds.dims) - {'time','member_id'}
    return (ds * weight).mean(other_dims)

client = Client(cluster)
client

cluster.scale(8)
cluster

Calculate GMST¶

Now compute (spatially weighted) Global Mean¶

ds_cmip6_annual = ds_cmip6.resample(time='AS').mean()
ds_cmip6_annual

%%time
gmst_cmip6 = global_mean(ds_cmip6_annual)
gmst_cmip6 = gmst_cmip6.rename('gmst')
gmst_cmip6

# %%time
# gmst_cmip6.to_dataset().to_zarr(rda_scratch + 'cesm2/gmst_cmip6.zarr',mode='w')

%%time
gmst_cmip6 = xr.open_zarr(rda_scratch + 'cesm2/gmst_cmip6.zarr').gmst
gmst_cmip6

Compute anomaly and turn the result into a data frame¶

gmsta_cmip6 = gmst_cmip6 - gmst_cmip6.mean()

%%time

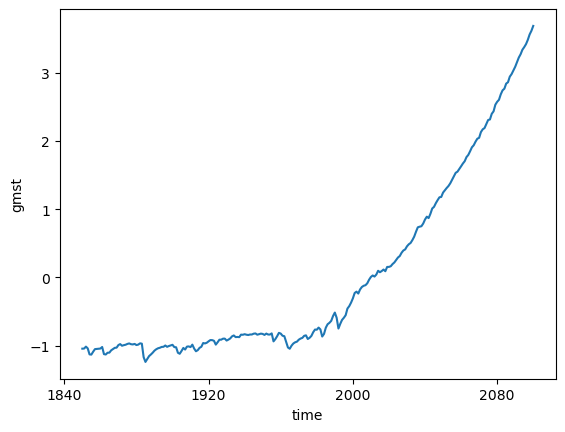

gmsta_cmip6.mean(dim='member_id').plot()

CPU times: user 24.6 s, sys: 1.48 s, total: 26.1 s
Wall time: 4min 8s

gmsta_cmip6_df = gmsta_cmip6.to_dataframe().reset_index()

gmsta_cmip6_df

%%time
sns.relplot(data=gmsta_cmip6_df,
            x="time", y="gmst", hue='member_id',
            kind="line", ci="sd", aspect=2)

---------------------------------------------------------------------------
ValueError                                Traceback (most recent call last)
File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/matplotlib/axis.py:1769, in Axis.convert_units(self, x)
   1768 try:
-> 1769     ret = self.converter.convert(x, self.units, self)
   1770 except Exception as e:

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/nc_time_axis/__init__.py:556, in NetCDFTimeConverter.convert(cls, value, unit, axis)
    555 if not isinstance(first_value, (CalendarDateTime, cftime.datetime)):
--> 556     raise ValueError(
    557         "The values must be numbers or instances of "
    558         '"nc_time_axis.CalendarDateTime" or '
    559         '"cftime.datetime".'
    560     )
    562 if isinstance(first_value, CalendarDateTime):

ValueError: The values must be numbers or instances of "nc_time_axis.CalendarDateTime" or "cftime.datetime".

The above exception was the direct cause of the following exception:

ConversionError                           Traceback (most recent call last)
File <timed eval>:1

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/seaborn/relational.py:838, in relplot(data, x, y, hue, size, style, units, weights, row, col, col_wrap, row_order, col_order, palette, hue_order, hue_norm, sizes, size_order, size_norm, markers, dashes, style_order, legend, kind, height, aspect, facet_kws, **kwargs)
    829 g = FacetGrid(
    830     data=full_data.dropna(axis=1, how="all"),
    831     **grid_kws,
   (...)
    834     **facet_kws
    835 )
    837 # Draw the plot
--> 838 g.map_dataframe(func, **plot_kws)
    840 # Label the axes, using the original variables
    841 # Pass "" when the variable name is None to overwrite internal variables
    842 g.set_axis_labels(variables.get("x") or "", variables.get("y") or "")

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/seaborn/axisgrid.py:825, in FacetGrid.map_dataframe(self, func, *args, **kwargs)
    822     kwargs["data"] = data_ijk
    824     # Draw the plot
--> 825     self._facet_plot(func, ax, args, kwargs)
    827 # For axis labels, prefer to use positional args for backcompat
    828 # but also extract the x/y kwargs and use if no corresponding arg
    829 axis_labels = [kwargs.get("x", None), kwargs.get("y", None)]

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/seaborn/axisgrid.py:854, in FacetGrid._facet_plot(self, func, ax, plot_args, plot_kwargs)
    852     plot_args = []
    853     plot_kwargs["ax"] = ax
--> 854 func(*plot_args, **plot_kwargs)
    856 # Sort out the supporting information
    857 self._update_legend_data(ax)

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/seaborn/relational.py:515, in lineplot(data, x, y, hue, size, style, units, weights, palette, hue_order, hue_norm, sizes, size_order, size_norm, dashes, markers, style_order, estimator, errorbar, n_boot, seed, orient, sort, err_style, err_kws, legend, ci, ax, **kwargs)
    512 color = kwargs.pop("color", kwargs.pop("c", None))
    513 kwargs["color"] = _default_color(ax.plot, hue, color, kwargs)
--> 515 p.plot(ax, kwargs)
    516 return ax

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/seaborn/relational.py:276, in _LinePlotter.plot(self, ax, kws)
    268 # TODO How to handle NA? We don't want NA to propagate through to the
    269 # estimate/CI when some values are present, but we would also like
    270 # matplotlib to show "gaps" in the line when all values are missing.
   (...)
    273
    274 # Loop over the semantic subsets and add to the plot
    275 grouping_vars = "hue", "size", "style"
--> 276 for sub_vars, sub_data in self.iter_data(grouping_vars, from_comp_data=True):
    278     if self.sort:
    279         sort_vars = ["units", orient, other]

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/seaborn/_base.py:902, in VectorPlotter.iter_data(self, grouping_vars, reverse, from_comp_data, by_facet, allow_empty, dropna)
    899 grouping_vars = [var for var in grouping_vars if var in self.variables]
    901 if from_comp_data:
--> 902     data = self.comp_data
    903 else:
    904     data = self.plot_data

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/seaborn/_base.py:1000, in VectorPlotter.comp_data(self)
    995 if var in self.var_levels:
    996     # TODO this should happen in some centralized location
    997     # it is similar to GH2419, but more complicated because
    998     # supporting `order` in categorical plots is tricky
    999     orig = orig[orig.isin(self.var_levels[var])]
-> 1000 comp = pd.to_numeric(converter.convert_units(orig)).astype(float)
   1001 transform = converter.get_transform().transform
   1002 parts.append(pd.Series(transform(comp), orig.index, name=orig.name))

File /glade/work/harshah/conda-envs/zarr_experiments/lib/python3.11/site-packages/matplotlib/axis.py:1771, in Axis.convert_units(self, x)
   1769     ret = self.converter.convert(x, self.units, self)
   1770 except Exception as e:
-> 1771     raise munits.ConversionError('Failed to convert value(s) to axis '
   1772                                  f'units: {x!r}') from e
   1773 return ret

ConversionError: Failed to convert value(s) to axis units: 0        1850-01-01 00:00:00
1        1851-01-01 00:00:00
2        1852-01-01 00:00:00
3        1853-01-01 00:00:00
4        1854-01-01 00:00:00
                ...
12545    2096-01-01 00:00:00
12546    2097-01-01 00:00:00
12547    2098-01-01 00:00:00
12548    2099-01-01 00:00:00
12549    2100-01-01 00:00:00
Name: x, Length: 12550, dtype: object
