Access AWS CESM2 using the AWS open data origin data

# Display output of plots directly in Notebook
%matplotlib inline
import warnings
warnings.filterwarnings("ignore")

import intake
import numpy as np
import pandas as pd
import xarray as xr
# import s3fs
# import seaborn as sns
import re
# import nest_asyncio
# nest_asyncio.apply()
import aiohttp

import fsspec.implementations.http as fshttp
from pelicanfs.core import PelicanFileSystem, PelicanMap, OSDFFileSystem

import dask
from dask_jobqueue import PBSCluster
from dask.distributed import Client
from dask.distributed import performance_report

init_year0  = '1991'
init_year1  = '2020'
final_year0 = '2071'
final_year1 = '2100'

# This overwrites the default scheduler with a single-threaded scheduler
dask.config.set(scheduler='synchronous')

<dask.config.set at 0x1492f7245bb0>

# File paths
rda_scratch = '/gpfs/csfs1/collections/rda/scratch/harshah'
#
rda_data           = '/gpfs/csfs1/collections/rda/data/'
new_intake_path    = rda_data + 'harshah/intake_catalogs/cesm2-lens-osdf/aws-cesm2-le.json'
new_intake_csvpath = rda_data + 'harshah/intake_catalogs/cesm2-lens-osdf/aws-cesm2-le.csv'

Set up osdf url to use with PelicanFS¶

We should one of the two pelicanFS FSSpec protocols (‘osdf’ or ‘pelican’) instead of the https protocol.
We will use the ‘osdf’ protocol and modify the existing CESM2-LENS catalog
So, the urls will look like: osdf_discovery_url + namespace prefix + path to file or object
In this case, the urls will look like osdf:///aws-opendata/us-west-2/ncar-cesm2-lens + path to individual zarr stores

s3_link  = 's3://'
# osdf_url = 'https://osdf-director.osg-htc.org/aws-opendata/us-west-2/'
osdf_url = 'osdf:///aws-opendata/us-west-2/'
#
rda_url        =  'https://data.rda.ucar.edu/'
new_intake_url = rda_url + 'harshah/intake_catalogs/cesm2-lens-osdf/aws-cesm2-le.json'

%%time
pelfs = OSDFFileSystem(direct_reads =True) # OSDFFileSystem is already aware of the osdf discovery url
#pelfs = PelicanFileSystem("pelican://osg-htc.org")
# pelfs.ls('/ncar/rda/')

CPU times: user 430 μs, sys: 0 ns, total: 430 μs
Wall time: 433 μs

%%time
# pelfs = PelicanFileSystem("https://osdf-director.osg-htc.org/")
# pelfs.ls('/aws-opendata/us-west-2/ncar-cesm2-lens/')

CPU times: user 4 μs, sys: 0 ns, total: 4 μs
Wall time: 8.11 μs

# Try to create a file url following Emma's example
cesm2_lens_path  = '/aws-opendata/us-west-2/ncar-cesm2-lens/'
#osdf_director    = 'https://osdf-director.osg-htc.org/'
zarr_path        = cesm2_lens_path + 'atm/daily/cesm2LE-historical-cmip6-TREFHT.zarr'
#
pel_zarr         = PelicanMap(zarr_path, pelfs)
print(zarr_path)

/aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-TREFHT.zarr

Note the extra `/’ in between the (pelican_director url + cesm2_lens_path). This is required

%%time
# Now, try to access the zarr store using open_zarr
test_zarr = xr.open_zarr(pel_zarr).TREFHT
test_zarr

%%time

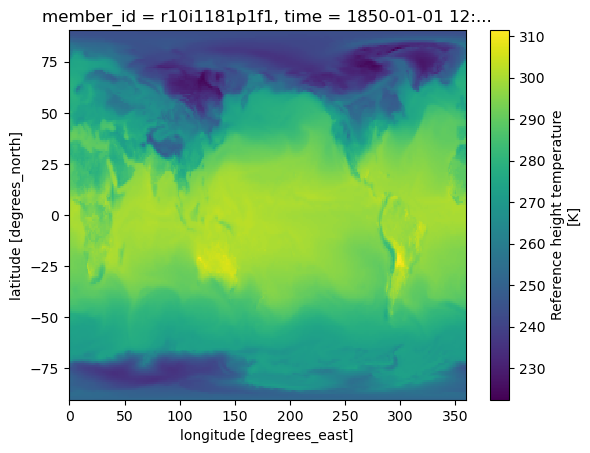

test_zarr.isel(member_id=0,time=0).plot()

CPU times: user 432 ms, sys: 214 ms, total: 647 ms
Wall time: 31.6 s

%%time
#Using HTTPS protocol
# test = xr.open_dataset('https://osdf-director.osg-htc.org/aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-TREFHT.zarr',\
#                       engine='zarr').TREFHT
#Using pelicanfs' OSDF protocol
test = xr.open_dataset('osdf:///aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-TREFHT.zarr',\
                       engine='zarr').TREFHT
test

# %%time
# test.values

Comments¶

PelicanFs doesn’t seem to support the ‘ls’ command
However, we can load the zarr store using the full url/ pelfs
So, let us try using an intake catalog
The original intake catalog can be found at ‘https://raw.githubusercontent.com/NCAR/cesm2-le-aws/main/intake-catalogs/aws-cesm2-le.json’
Let us modify this catalog, by pre-pending the s3 path to the object ncar-cesm2-lens with the osdf-director + namespace
The size of this catalog is > 100 MB. So, let us not upload it to a github repo
Let us save the catalog to a folder on NCAR’s disk storage

Modify the intake catalog¶

# Open collection description file using intake
catalog = intake.open_esm_datastore(
    'https://raw.githubusercontent.com/NCAR/cesm2-le-aws/main/intake-catalogs/aws-cesm2-le.json'
)
catalog

# df_s3 = catalog.df
# df_s3['path']

# # Change s3 paths to osdf paths
# df_s3['path'] = df_s3['path'].str.replace(s3_link, '')
# df_s3['path'] = osdf_url + df_s3['path']
# df_s3['path'].head().values

# %%time
# df_s3.to_csv(new_intake_csvpath)

Test the new intake catalog after spinning up a cluster¶

# Create a PBS cluster object
cluster = PBSCluster(
    job_name = 'dask-wk24-hpc',
    cores = 1,
    memory = '4GiB',
    processes = 1,
    local_directory = rda_scratch+'/dask/spill',
    resource_spec = 'select=1:ncpus=1:mem=4GB',
    queue = 'casper',
    walltime = '5:00:00',
    log_directory = rda_scratch+'/dask/logs',
    #interface = 'ib0'
    interface = 'ext'
)

client = Client(cluster)
client

cluster.scale(4)
cluster

Access the data from the AWS bucket using intake to compare¶

osdf_catalog = intake.open_esm_datastore(
   new_intake_url
)
osdf_catalog

osdf_catalog.df['path'].head().values

array(['osdf:///aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-FLNS.zarr',
       'osdf:///aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-FLNSC.zarr',
       'osdf:///aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-FLUT.zarr',
       'osdf:///aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-FSNS.zarr',
       'osdf:///aws-opendata/us-west-2/ncar-cesm2-lens/atm/daily/cesm2LE-historical-cmip6-FSNSC.zarr'],
      dtype=object)

osdf_catalog_temp = osdf_catalog.search(variable ='TREFHTMX', frequency ='daily')
osdf_catalog_temp

%%time
#dsets = osdf_catalog_temp.to_dataset_dict(storage_options={'anon':True})
dsets = osdf_catalog_temp.to_dataset_dict()

%%time
dsets.keys()

CPU times: user 3 μs, sys: 0 ns, total: 3 μs
Wall time: 5.01 μs

dict_keys(['atm.historical.daily.cmip6', 'atm.historical.daily.smbb', 'atm.ssp370.daily.cmip6', 'atm.ssp370.daily.smbb'])

historical_smbb = dsets['atm.historical.daily.smbb']
historical_smbb

%%time
historical_smbb.TREFHTMX.isel(member_id=0,time=0)

%%time

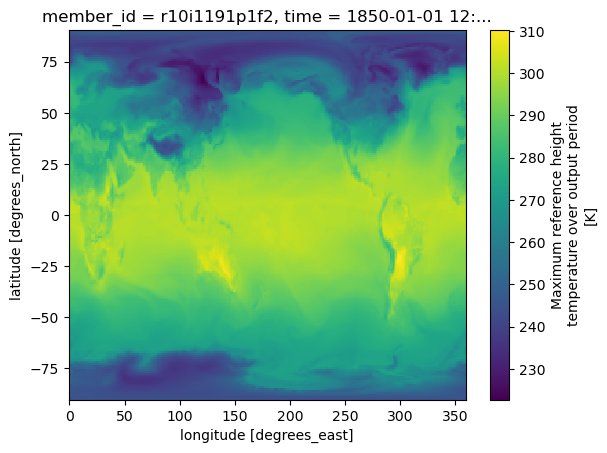

historical_smbb.TREFHTMX.isel(member_id=0,time=0).plot()

CPU times: user 154 ms, sys: 40.6 ms, total: 194 ms
Wall time: 8.17 s

%%time
historical_smbb.TREFHTMX.isel(member_id=0,time=0).values

CPU times: user 4.14 s, sys: 1.56 s, total: 5.7 s
Wall time: 5min 2s

array([[nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       ...,
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan]], dtype=float32)

historical_smbb_init = historical_smbb.TREFHTMX.sel(time=slice(init_year0, init_year1))
historical_smbb_init

Data Access Speed tests¶

We will now test how long it takes to access data (via OSDF) for various sizes using one of the above arrays

# Test 0 : Single data point, Mem: 4 bytes. Takes 1 min 30s when .compute() is called on this data array (which loads data into memory)
historical_smbb_init0 = historical_smbb_init.isel(lat=0,lon=0,time=0,member_id=0)

#Test 1: Whole globe +all member_ids for 1 time step, Mem: 10.55 MiB ~ 10.55 MB
historical_smbb_init1 = historical_smbb_init.isel(time=0)
historical_smbb_init1

#Try using a specific cache
sdsc_cache='https://sdsc-cache.nationalresearchplatform.org:8443/aws-opendata/us-west-2/ncar-cesm2-lens/atm/monthly/'+\
            'cesm2LE-historical-smbb-TREFHTMX.zarr'

%%time
test_1 = xr.open_zarr(sdsc_cache).TREFHTMX.isel(time=0)
test_1

%%time
test_1.compute()

%%time
# Now, try to access the same array without specifying the cache
historical_smbb_init1.compute()

# Load the same object via the NCAR origin
ncar_glade_test = xr.open_zarr('osdf:///ncar/rda-transfer/chifan_AWS/ncar-cesm2-lens/atm/monthly/cesm2LE-historical-smbb-TREFHTMX.zarr').TREFHTMX.isel(time=0)
ncar_glade_test

%%time
ncar_glade_test.compute()
