CMIP6 precipitation diagnostics - OSDF usage examples

Access CMIP6 zarr data from AWS using the osdf protocol and compute different precipitation statistics¶

origin:aws platform:casper dataset:cmip6 task:visualization level:intermediate

Section 1: Introduction¶

Load python packkages
Load catalog url

from matplotlib import pyplot as plt
import xarray as xr
import numpy as np
import dask
from dask.diagnostics import progress
from tqdm.autonotebook import tqdm
import intake
import fsspec
import seaborn as sns
import re
import aiohttp
from dask_jobqueue import PBSCluster
import pandas as pd
from xhistogram.xarray import histogram

/glade/derecho/scratch/harshah/tmp/ipykernel_37992/3451259092.py:6: TqdmExperimentalWarning: Using `tqdm.autonotebook.tqdm` in notebook mode. Use `tqdm.tqdm` instead to force console mode (e.g. in jupyter console)
  from tqdm.autonotebook import tqdm

# import fsspec.implementations.http as fshttp
from pelicanfs.core import OSDFFileSystem,PelicanMap

lustre_scratch   = "/lustre/desc1/scratch/harshah"
#
gdex_url     =  'https://data.gdex.ucar.edu/'
# cat_url     = gdex_url +  'd850001/catalogs/osdf/cmip6-aws/cmip6-osdf-zarr.json'
cat_url     = 'https://cmip6-pds.s3.amazonaws.com/pangeo-cmip6.json'

Section 2: Select Dask Cluster¶

Select the Dask cluster type¶

The default will be LocalCluster as that can run on any system.

If running on a HPC computer with a PBS Scheduler, set to True. Otherwise, set to False.

USE_PBS_SCHEDULER = True

If running on Jupyter server with Dask Gateway configured, set to True. Otherwise, set to False.

USE_DASK_GATEWAY = False

Python function for a PBS cluster¶

# Create a PBS cluster object
def get_pbs_cluster():
    """ Create cluster through dask_jobqueue.
    """
    from dask_jobqueue import PBSCluster
    cluster = PBSCluster(
        job_name = 'dask-osdf-24',
        cores = 1,
        memory = '4GiB',
        processes = 1,
        local_directory = lustre_scratch + '/dask/spill',
        log_directory = lustre_scratch + '/dask/logs/',
        resource_spec = 'select=1:ncpus=1:mem=4GB',
        queue = 'casper',
        walltime = '3:00:00',
        #interface = 'ib0'
        interface = 'ext'
    )
    return cluster

Python function for a Gateway Cluster¶

def get_gateway_cluster():
    """ Create cluster through dask_gateway
    """
    from dask_gateway import Gateway

    gateway = Gateway()
    cluster = gateway.new_cluster()
    cluster.adapt(minimum=2, maximum=4)
    return cluster

def get_local_cluster():
    """ Create cluster using the Jupyter server's resources
    """
    from distributed import LocalCluster, performance_report
    cluster = LocalCluster()

    cluster.scale(6)
    return cluster

Python logic for a Local Cluster¶

This uses True/False boolean logic based on the variables set in the previous cells

# Obtain dask cluster in one of three ways
if USE_PBS_SCHEDULER:
    cluster = get_pbs_cluster()
elif USE_DASK_GATEWAY:
    cluster = get_gateway_cluster()
else:
    cluster = get_local_cluster()

# Connect to cluster
from distributed import Client
client = Client(cluster)

# Scale the cluster and display cluster dashboard URL
n_workers =8
cluster.scale(n_workers)
client.wait_for_workers(n_workers = n_workers)
cluster

Section 3: Data Loading¶

Load catalog and select data subset

col = intake.open_esm_datastore(cat_url)
col

[eid for eid in col.df['experiment_id'].unique() if 'ssp' in eid]

['esm-ssp585-ssp126Lu',
 'ssp126-ssp370Lu',
 'ssp370-ssp126Lu',
 'ssp585',
 'ssp245',
 'ssp370-lowNTCF',
 'ssp370SST-ssp126Lu',
 'ssp370SST',
 'ssp370pdSST',
 'ssp370SST-lowCH4',
 'ssp370SST-lowNTCF',
 'ssp126',
 'ssp119',
 'ssp370',
 'esm-ssp585',
 'ssp245-nat',
 'ssp245-GHG',
 'ssp460',
 'ssp434',
 'ssp534-over',
 'ssp245-aer',
 'ssp245-stratO3',
 'ssp245-cov-fossil',
 'ssp245-cov-modgreen',
 'ssp245-cov-strgreen',
 'ssp245-covid',
 'ssp585-bgc']

# there is currently a significant amount of data for these runs
expts = ['historical', 'ssp585']

query = dict(
    experiment_id=expts,
    table_id='3hr',
    variable_id=['pr'],
    #member_id = 'r1i1p1f1',
    #activity_id = 'CMIP',
)

col_subset = col.search(require_all_on=["source_id"], **query)
col_subset

col_subset.df.groupby("source_id")[["experiment_id", "variable_id", "table_id","activity_id"]].nunique()

col_subset.df

source_ids = col_subset.df['source_id'].unique()
source_ids

array(['BCC-CSM2-MR', 'CNRM-CM6-1', 'CNRM-ESM2-1', 'IPSL-CM6A-LR'],
      dtype=object)

# %%time
# dsets_osdf  = col_subset.to_dataset_dict()
# print(f"\nDataset dictionary keys:\n {dsets_osdf.keys()}")

def load_pr_data(source_id, expt_id):
    """
    Load 3hr precip data for given source and expt ids
    """
    df_subset = col_subset.df
    uri = df_subset[(df_subset.source_id == source_id) &
                         (df_subset.experiment_id == expt_id)].zstore.values[0]

    ds = xr.open_zarr(fsspec.get_mapper(uri,anon=True), consolidated=True)
    return ds

def precip_hist(ds, nbins=100, pr_log_min=-3, pr_log_max=2):
    """
    Calculate precipitation histogram for a single model.
    Lazy.
    """
    assert ds.pr.units == 'kg m-2 s-1'

    # mm/day
    bins_mm_day = np.hstack([[0], np.logspace(pr_log_min, pr_log_max, nbins)])
    bins_kg_m2s = bins_mm_day / (24*60*60)

    pr_hist = histogram(ds.pr, bins=[bins_kg_m2s], dim=['lon']).mean(dim='time')

    log_bin_spacing = np.diff(np.log(bins_kg_m2s[1:3])).item()
    pr_hist_norm = 100 * pr_hist / ds.sizes['lon'] / log_bin_spacing
    pr_hist_norm.attrs.update({'long_name': 'zonal mean rain frequency',
                               'units': '%/Δln(r)'})
    return pr_hist_norm

def precip_hist_for_expts(dsets, experiment_ids):
    """
    Calculate histogram for a suite of experiments.
    Eager.
    """
    # actual data loading and computations happen in this next line
    pr_hists = [precip_hist(ds).load() for ds in [ds_hist, ds_ssp]]
    pr_hist = xr.concat(pr_hists, dim=xr.Variable('experiment_id', experiment_ids))
    return pr_hist

%%time
results = {}
for source_id in tqdm(source_ids):
    # get a 20 year period
    ds_hist = load_pr_data(source_id, 'historical').sel(time=slice('1980', '2000'))
    ds_ssp = load_pr_data(source_id, 'ssp585').sel(time=slice('2080', '2100'))
    print(ds_hist)
    pr_hist = precip_hist_for_expts([ds_hist, ds_ssp], expts)
    results[source_id] = pr_hist

<xarray.Dataset> Size: 13GB
Dimensions:    (lat: 160, bnds: 2, lon: 320, time: 61320)
Coordinates:
  * lat        (lat) float64 1kB -89.14 -88.03 -86.91 ... 86.91 88.03 89.14
    lat_bnds   (lat, bnds) float64 3kB dask.array<chunksize=(160, 2), meta=np.ndarray>
  * lon        (lon) float64 3kB 0.0 1.125 2.25 3.375 ... 356.6 357.8 358.9
    lon_bnds   (lon, bnds) float64 5kB dask.array<chunksize=(320, 2), meta=np.ndarray>
  * time       (time) object 491kB 1980-01-01 01:30:00 ... 2000-12-31 22:30:00
    time_bnds  (time, bnds) object 981kB dask.array<chunksize=(7300, 1), meta=np.ndarray>
Dimensions without coordinates: bnds
Data variables:
    pr         (time, lat, lon) float32 13GB dask.array<chunksize=(600, 160, 320), meta=np.ndarray>
Attributes: (12/52)
    Conventions:            CF-1.7 CMIP-6.2
    activity_id:            CMIP
    branch_method:          Standard
    branch_time_in_child:   0.0
    branch_time_in_parent:  2289.0
    cmor_version:           3.3.2
    ...                     ...
    tracking_id:            hdl:21.14100/822b921d-0abf-4bfb-b2dd-f0e7231c9185...
    variable_id:            pr
    variant_label:          r1i1p1f1
    status:                 2019-10-25;created;by nhn2@columbia.edu
    netcdf_tracking_ids:    hdl:21.14100/822b921d-0abf-4bfb-b2dd-f0e7231c9185...
    version_id:             v20190108
<xarray.Dataset> Size: 8GB
Dimensions:      (lat: 128, lon: 256, time: 61368, axis_nbounds: 2)
Coordinates:
  * lat          (lat) float64 1kB -88.93 -87.54 -86.14 ... 86.14 87.54 88.93
  * lon          (lon) float64 2kB 0.0 1.406 2.812 4.219 ... 355.8 357.2 358.6
  * time         (time) datetime64[ns] 491kB 1980-01-01T01:30:00 ... 2000-12-...
    time_bounds  (time, axis_nbounds) datetime64[ns] 982kB dask.array<chunksize=(42007, 1), meta=np.ndarray>
Dimensions without coordinates: axis_nbounds
Data variables:
    pr           (time, lat, lon) float32 8GB dask.array<chunksize=(552, 128, 256), meta=np.ndarray>
Attributes: (12/57)
    CMIP6_CV_version:       cv=6.2.3.0-7-g2019642
    Conventions:            CF-1.7 CMIP-6.2
    EXPID:                  CNRM-CM6-1_historical_r1i1p1f2
    NCO:                    "4.5.5"
    activity_id:            CMIP
    arpege_minor_version:   6.3.2
    ...                     ...
    variable_id:            pr
    variant_label:          r1i1p1f2
    xios_commit:            1442-shuffle
    status:                 2019-10-25;created;by nhn2@columbia.edu
    netcdf_tracking_ids:    hdl:21.14100/b9a171b4-af36-425a-9cc9-118e0aec726b...
    version_id:             v20180917
<xarray.Dataset> Size: 8GB
Dimensions:      (lat: 128, lon: 256, time: 61368, axis_nbounds: 2)
Coordinates:
  * lat          (lat) float64 1kB -88.93 -87.54 -86.14 ... 86.14 87.54 88.93
  * lon          (lon) float64 2kB 0.0 1.406 2.812 4.219 ... 355.8 357.2 358.6
  * time         (time) datetime64[ns] 491kB 1980-01-01T01:30:00 ... 2000-12-...
    time_bounds  (time, axis_nbounds) datetime64[ns] 982kB dask.array<chunksize=(42007, 1), meta=np.ndarray>
Dimensions without coordinates: axis_nbounds
Data variables:
    pr           (time, lat, lon) float32 8GB dask.array<chunksize=(552, 128, 256), meta=np.ndarray>
Attributes: (12/55)
    CMIP6_CV_version:       cv=6.2.3.0-7-g2019642
    Conventions:            CF-1.7 CMIP-6.2
    EXPID:                  CNRM-ESM2-1_historical_r1i1p1f2_v2
    activity_id:            CMIP
    arpege_minor_version:   6.3.2
    branch_method:          standard
    ...                     ...
    variable_id:            pr
    variant_label:          r1i1p1f2
    xios_commit:            1442-shuffle
    status:                 2019-10-25;created;by nhn2@columbia.edu
    netcdf_tracking_ids:    hdl:21.14100/f1e5c10f-c895-46b1-a771-05e33c7947b6...
    version_id:             v20181206
<xarray.Dataset> Size: 5GB
Dimensions:      (lat: 143, lon: 144, time: 61368, axis_nbounds: 2)
Coordinates:
  * lat          (lat) float32 572B -90.0 -88.73 -87.46 ... 87.46 88.73 90.0
  * lon          (lon) float32 576B 0.0 2.5 5.0 7.5 ... 350.0 352.5 355.0 357.5
  * time         (time) datetime64[ns] 491kB 1980-01-01T01:30:00 ... 2000-12-...
    time_bounds  (time, axis_nbounds) datetime64[ns] 982kB dask.array<chunksize=(42007, 1), meta=np.ndarray>
Dimensions without coordinates: axis_nbounds
Data variables:
    pr           (time, lat, lon) float32 5GB dask.array<chunksize=(316, 143, 144), meta=np.ndarray>
Attributes: (12/54)
    CMIP6_CV_version:       cv=6.2.3.5-2-g63b123e
    Conventions:            CF-1.7 CMIP-6.2
    EXPID:                  historical
    NCO:                    "4.6.0"
    activity_id:            CMIP
    branch_method:          standard
    ...                     ...
    tracking_id:            hdl:21.14100/6032861a-7350-45ff-aac7-0dfa54c100d7...
    variable_id:            pr
    variant_label:          r4i1p1f1
    status:                 2019-11-05;created;by nhn2@columbia.edu
    netcdf_tracking_ids:    hdl:21.14100/6032861a-7350-45ff-aac7-0dfa54c100d7...
    version_id:             v20180803
CPU times: user 36.2 s, sys: 1.51 s, total: 37.7 s
Wall time: 10min 25s

Section 4: Data Analysis¶

Calculate precipitation statistics
Grab some observations ?
Plot precipitation changes for different CMIP6 models

def plot_precip_changes(pr_hist, vmax=5):
    """
    Visualize the output
    """
    pr_hist_diff = (pr_hist.sel(experiment_id='ssp585') -
                    pr_hist.sel(experiment_id='historical'))
    pr_hist.sel(experiment_id='historical')[:, 1:].plot.contour(xscale='log', colors='0.5', levels=21)
    pr_hist_diff[:, 1:].plot.contourf(xscale='log', vmax=vmax, levels=21)

%%time

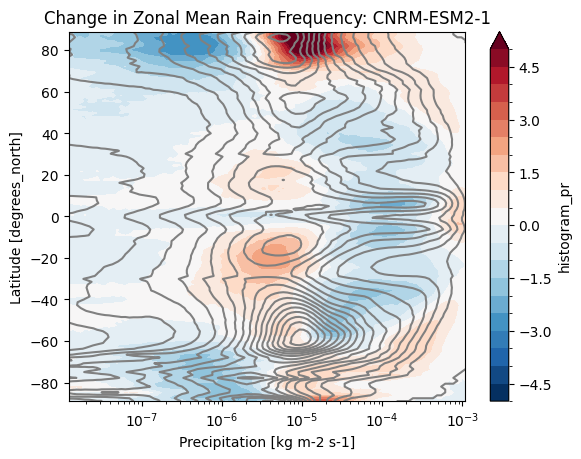

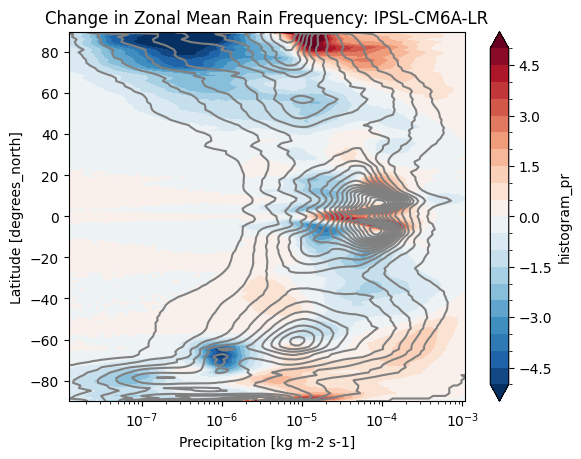

title = 'Change in Zonal Mean Rain Frequency'
for source_id, pr_hist in results.items():
    plt.figure()
    plot_precip_changes(pr_hist)
    plt.title(f'{title}: {source_id}')

CPU times: user 161 ms, sys: 9.99 ms, total: 171 ms
Wall time: 177 ms

cluster.close()
