A simple AWS Open Data example - OSDF usage examples

Download CMIP6 zarr data from AWS¶

origin:aws platform:laptop dataset:cmip6 level:beginner

Description¶

This is a very simple example that demonstrates how to download the same zarr object from AWS using s3 and OSDF protocols, respectively
This notebook does not use intake catalogs to get the data or dask to scale up the job

from matplotlib import pyplot as plt
import xarray as xr
import fsspec
import pandas as pd
import s3fs

import fsspec.implementations.http as fshttp
from pelicanfs.core import OSDFFileSystem,PelicanMap

# Connect to AWS S3 storage
fs = s3fs.S3FileSystem(anon=True)

# create a MutableMapping from a store URL
mapper = fs.get_mapper("s3://cmip6-pds/CMIP6/CMIP/AS-RCEC/TaiESM1/1pctCO2/r1i1p1f1/Amon/tas/gn/v20200225/")

# make sure to specify that metadata is consolidated
ds_s3 = xr.open_zarr(mapper, consolidated=True)
ds_s3

/Users/harshah/venvs/osdf/lib/python3.12/site-packages/xarray/backends/plugins.py:110: RuntimeWarning: Engine 'gini' loading failed:
expected bytes, str found
  external_backend_entrypoints = backends_dict_from_pkg(entrypoints_unique)

%%time
ds_osdf = xr.open_zarr('osdf:///aws-opendata/us-west-2/cmip6-pds/CMIP6/CMIP/AS-RCEC/TaiESM1/1pctCO2/r1i1p1f1/Amon/tas/gn/v20200225/')
ds_osdf

CPU times: user 64.5 ms, sys: 7.41 ms, total: 71.9 ms
Wall time: 899 ms

# test = xr.open_zarr('s3://cmip6-pds/CMIP6/HighResMIP/CMCC/CMCC-CM2-HR4/highresSST-present/r1i1p1f1/Amon/ta/gn/v20170706/,,20170706',anon=True)

%%time
surface_air_temps = ds_osdf['tas']
surface_air_temps

CPU times: user 34 μs, sys: 0 ns, total: 34 μs
Wall time: 35.8 μs

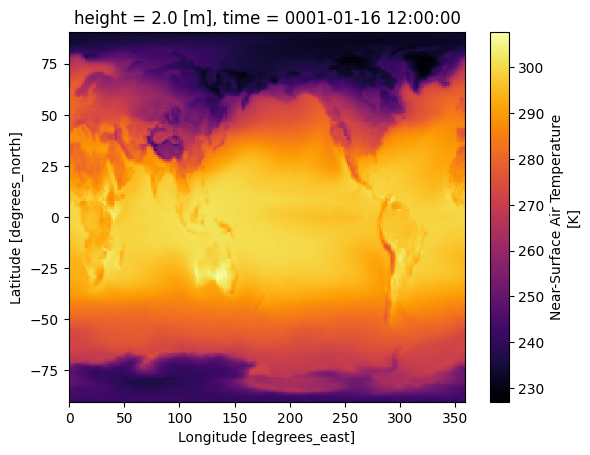

Plot the first time step¶

%%time
surface_air_temps.isel(time=0).plot(cmap='inferno')

CPU times: user 784 ms, sys: 369 ms, total: 1.15 s
Wall time: 2.4 s

df        = pd.read_csv("https://cmip6-pds.s3.amazonaws.com/pangeo-cmip6.csv")
df_subset = df.query("activity_id=='CMIP' & table_id=='Amon' & variable_id=='tas'")
#
# Replace 'tas' with 'tasmax' or 'tasmin' if you need `new' data that has not already been loaded to a cache
df_subset

Download multiple files¶

Change ztore/object paths to use osdf protocol!

object_paths = df_subset['zstore'].str.replace('s3://','osdf:///aws-opendata/us-west-2/',regex=False).to_list()
object_paths[:5]

['osdf:///aws-opendata/us-west-2/cmip6-pds/CMIP6/CMIP/CNRM-CERFACS/CNRM-CM6-1/1pctCO2/r1i1p1f2/Amon/tas/gr/v20180626/',
 'osdf:///aws-opendata/us-west-2/cmip6-pds/CMIP6/CMIP/NOAA-GFDL/GFDL-CM4/1pctCO2/r1i1p1f1/Amon/tas/gr1/v20180701/',
 'osdf:///aws-opendata/us-west-2/cmip6-pds/CMIP6/CMIP/NOAA-GFDL/GFDL-CM4/abrupt-4xCO2/r1i1p1f1/Amon/tas/gr1/v20180701/',
 'osdf:///aws-opendata/us-west-2/cmip6-pds/CMIP6/CMIP/NOAA-GFDL/GFDL-CM4/piControl/r1i1p1f1/Amon/tas/gr1/v20180701/',
 'osdf:///aws-opendata/us-west-2/cmip6-pds/CMIP6/CMIP/NOAA-GFDL/GFDL-ESM4/1pctCO2/r1i1p1f1/Amon/tas/gr1/v20180701/']

len(object_paths)

1160

# Max number of objects to downloaded
n_max  = 2

%%time
for i in range(n_max):
    ds = xr.open_zarr(object_paths[i])
    #
    tas = ds['tas']

    #Explicitly load tas/ (Temperature, Air Surface) data
    tas_copy = tas
    tas_copy.compute()
    print(f' Loaded data from {i}_th zarr store')

 Loaded data from 0_th zarr store
 Loaded data from 1_th zarr store
CPU times: user 7.76 s, sys: 3.24 s, total: 11 s
Wall time: 31.7 s
