Background harmonic viscosity

Create a background harmonic viscosity for the tx2_3 grid

%matplotlib inline

import xarray as xr
import numpy as np
import datetime
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings("ignore")

today = datetime.date.today().strftime("%y%m%d")
print(today)

260427

fname = '../mesh/tx2_3v3_grid.nc'
grd = xr.open_dataset(fname)
grd

<xarray.Dataset> Size: 42MB
Dimensions:  (ny: 480, nx: 540, nxp: 541, nyp: 481)
Dimensions without coordinates: ny, nx, nxp, nyp
Data variables: (12/20)
    tlon     (ny, nx) float64 2MB ...
    tlat     (ny, nx) float64 2MB ...
    ulon     (ny, nxp) float64 2MB ...
    ulat     (ny, nxp) float64 2MB ...
    vlon     (nyp, nx) float64 2MB ...
    vlat     (nyp, nx) float64 2MB ...
    ...       ...
    tarea    (ny, nx) float64 2MB ...
    tmask    (ny, nx) float64 2MB ...
    angle    (ny, nx) float64 2MB ...
    depth    (ny, nx) float64 2MB ...
    ar       (ny, nx) float64 2MB ...
    egs      (ny, nx) float64 2MB ...
Attributes:
    Description:  CESM MOM6 2/3 degree grid
    Author:       Frank, Fred, Gustavo (gmarques@ucar.edu)
    Created:      2026-03-05T14:49:28.971877
    type:         Glogal 2/3 degree grid file

xarray.Dataset

• Dimensions:
  • ny: 480
  • nx: 540
  • nxp: 541
  • nyp: 481
• Data variables: (20)
  • tlon
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid longitudes

    units :

    degrees_east

    [259200 values with dtype=float64]

  • tlat
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid latitudes

    units :

    degrees_north

    [259200 values with dtype=float64]

  • ulon
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid longitudes

    units :

    degrees_east

    [259680 values with dtype=float64]

  • ulat
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid latitudes

    units :

    degrees_north

    [259680 values with dtype=float64]

  • vlon
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid longitudes

    units :

    degrees_east

    [259740 values with dtype=float64]

  • vlat
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid latitudes

    units :

    degrees_north

    [259740 values with dtype=float64]

  • qlon
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid longitudes

    units :

    degrees_east

    [260221 values with dtype=float64]

  • qlat
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid latitudes

    units :

    degrees_north

    [260221 values with dtype=float64]

  • dxt
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between u-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dyt
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between v-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dxCv
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between q-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • dyCu
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between q-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dxCu
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between t-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dyCv
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between t-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • tarea
    (ny, nx)
    float64
    ...

    long_name :

    area of t-cells

    units :

    meters^2

    [259200 values with dtype=float64]

  • tmask
    (ny, nx)
    float64
    ...

    long_name :

    ocean fraction at t-cell centers

    units :

    none

    [259200 values with dtype=float64]

  • angle
    (ny, nx)
    float64
    ...

    long_name :

    angle grid makes with latitude line

    units :

    degrees

    [259200 values with dtype=float64]

  • depth
    (ny, nx)
    float64
    ...

    long_name :

    depth at h points

    units :

    meters

    [259200 values with dtype=float64]

  • ar
    (ny, nx)
    float64
    ...

    long_name :

    grid aspect ratio (dyt/dxt)

    units :

    none

    [259200 values with dtype=float64]

  • egs
    (ny, nx)
    float64
    ...

    long_name :

    grid effective grid spacing

    units :

    degrees

    [259200 values with dtype=float64]

• Attributes: (4)

  Description :

  CESM MOM6 2/3 degree grid

  Author :

  Frank, Fred, Gustavo (gmarques@ucar.edu)

  Created :

  2026-03-05T14:49:28.971877

  type :

  Glogal 2/3 degree grid file

depth = grd.depth
lath = grd.tlat
dims = depth.dims

# Build mask: 1 over land, 0 over ocean
mask = xr.where(depth > 0.0, 0, 1).astype(float).rename('mask')

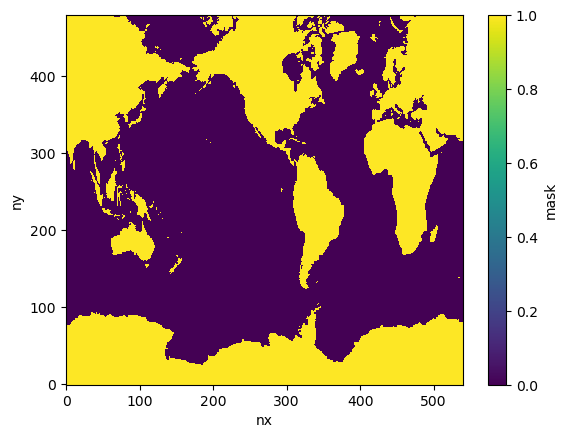

mask.plot()

<matplotlib.collections.QuadMesh at 0x14d5c50e4440>

# Taper so the mask smoothly goes to zero within 15° of the equator
mask[259:280,78] = 1.0
fy = (1 - np.minimum(np.abs(lath) / 15, 1) ** 2) ** 2
mask = fy * mask

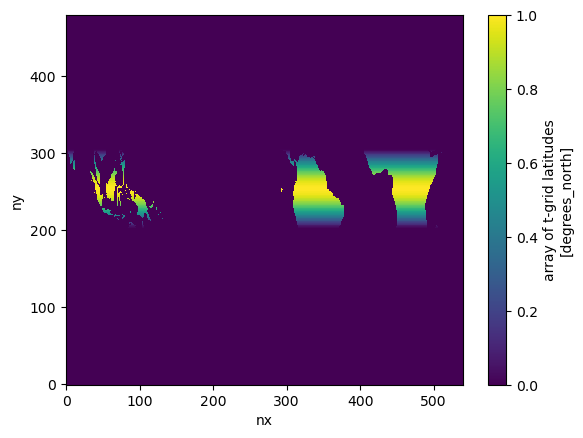

mask.plot()

<matplotlib.collections.QuadMesh at 0x14d5bff90910>

# Propagate mask values into coastal ocean cells for smooth results.
# Land cells are pinned to their mask value; ocean cells are free to
# receive blended values from neighbors. 1 pass in lonh, 3 passes in lath, 40 times.
KH = mask.copy()
for i in range(40):
    KH = np.where(mask>0, mask, KH)
    KH = (1/4) * (2*KH + np.roll(KH,1,axis=1) + np.roll(KH,-1,axis=1))
    KH = np.where(mask>0, mask, KH)
    KH = (1/4) * (2*KH + np.roll(KH,1,axis=0) + np.roll(KH,-1,axis=0))
    KH = np.where(mask>0, mask, KH)
    KH = (1/4) * (2*KH + np.roll(KH,1,axis=0) + np.roll(KH,-1,axis=0))
    KH = np.where(mask>0, mask, KH)
    KH = (1/4) * (2*KH + np.roll(KH,1,axis=0) + np.roll(KH,-1,axis=0))

KH = np.where(mask>0, mask, KH)
KH[:,:25] = 0.
KH[:,-25:] = 0.
# Apply final masking and scaling
KH = xr.where(depth > 0.0, KH, np.nan) * 9000.0

ds_out = KH.rename("KH").to_dataset().fillna(0)

ds_out['KH'].attrs = {"units": "m^2 s^-1", "long_name": "Background harmonic viscosity"}
ds_out['KH'].encoding["_FillValue"] = None

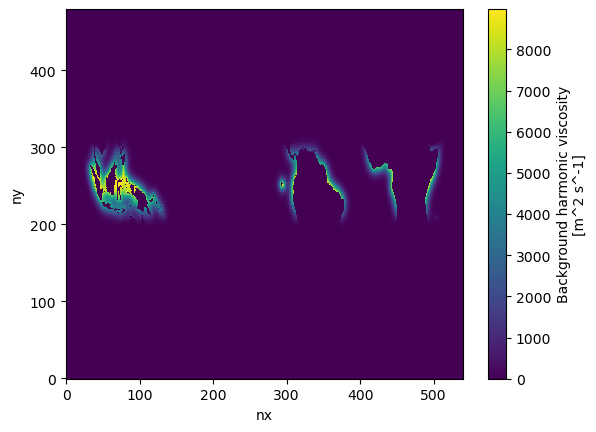

ds_out.KH.plot.pcolormesh()

<matplotlib.collections.QuadMesh at 0x14d5bfe60410>

# Save netcdf file

ds_out.attrs['Title']  = '2D background harmonic viscosity field for tx2_3v3'
ds_out.attrs['Author'] = 'Ian Grooms (ian.grooms@colorado.edu) & Gustavo Marques (gmarques@ucar.edu)'
ds_out.attrs['url'] = 'https://github.com/NCAR/tx2_3/background_viscosity'
ds_out.attrs["Date_created"] = today

fname = 'KH_BG_2D_tx2_3v3_{}.nc'.format(today)
ds_out.to_netcdf(fname, format="NETCDF3_64BIT")
