Remap IMBIE basins to tx2_3

%matplotlib inline

import xarray as xr
import xesmf, intake
import numpy as np
import datetime
import matplotlib.pyplot as plt
import matplotlib.path as mpath
import cartopy.crs as ccrs
import cartopy
import matplotlib.ticker as mticker
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER
import warnings
warnings.filterwarnings("ignore")

today = datetime.date.today().strftime("%y%m%d")
print(today)

260305

def plot_masks(data, lon, lat, ax, title=''):
  '''Used to generate the maps'''
  extent = [-180, 180, -90, -50]
  lonRange=(-360, 360.); latRange=(extent[2], extent[3])
  ax.set_extent(extent, ccrs.PlateCarree())
  #ax.add_feature(cartopy.feature.LAND)
  cs = ax.pcolormesh(lon,lat,data,transform=ccrs.PlateCarree())
  #cb = plt.colorbar(cs, ax=ax, orientation='horizontal', pad=0.02)
  #ax.pcolormesh(lon,lat,data)
  ax.add_feature(cartopy.feature.COASTLINE)
  circle_value = get_circle()
  ax.set_boundary(circle_value, transform=ax.transAxes)
  ax.set_title(title)
  ax.gridlines()
  ax.xlocator = mticker.FixedLocator([-180, -45, 0, 45, 180])
  ax.xformatter = LONGITUDE_FORMATTER
  ax.yformatter = LATITUDE_FORMATTER

def get_circle():
  """
  Compute a circle in axes coordinates, which we can use as a boundary
  for the map. We can pan/zoom as much as we like - the boundary will be
  permanently circular.
  """

  theta = np.linspace(0, 2*np.pi, 100)
  center, radius = [0.5, 0.5], 0.5
  verts = np.vstack([np.sin(theta), np.cos(theta)]).T

  return mpath.Path(verts * radius + center)

fname = '../mesh/tx2_3v3_grid.nc'
ds_out = xr.open_dataset(fname).rename({'tlon': 'lon','tlat': 'lat', 'qlon': 'lon_b',
                                        'qlat': 'lat_b', 'nx' : 'xh', 'ny' : 'yh',
                                        'depth' : 'z_l'})
ds_out

<xarray.Dataset> Size: 42MB
Dimensions:  (yh: 480, xh: 540, nxp: 541, nyp: 481)
Dimensions without coordinates: yh, xh, nxp, nyp
Data variables: (12/20)
    lon      (yh, xh) float64 2MB ...
    lat      (yh, xh) float64 2MB ...
    ulon     (yh, nxp) float64 2MB ...
    ulat     (yh, nxp) float64 2MB ...
    vlon     (nyp, xh) float64 2MB ...
    vlat     (nyp, xh) float64 2MB ...
    ...       ...
    tarea    (yh, xh) float64 2MB ...
    tmask    (yh, xh) float64 2MB ...
    angle    (yh, xh) float64 2MB ...
    z_l      (yh, xh) float64 2MB ...
    ar       (yh, xh) float64 2MB ...
    egs      (yh, xh) float64 2MB ...
Attributes:
    Description:  CESM MOM6 2/3 degree grid
    Author:       Frank, Fred, Gustavo (gmarques@ucar.edu)
    Created:      2026-03-05T14:49:28.971877
    type:         Glogal 2/3 degree grid file

xarray.Dataset

• Dimensions:
  • yh: 480
  • xh: 540
  • nxp: 541
  • nyp: 481
• Data variables: (20)
  • lon
    (yh, xh)
    float64
    ...

    long_name :

    array of t-grid longitudes

    units :

    degrees_east

    [259200 values with dtype=float64]

  • lat
    (yh, xh)
    float64
    ...

    long_name :

    array of t-grid latitudes

    units :

    degrees_north

    [259200 values with dtype=float64]

  • ulon
    (yh, nxp)
    float64
    ...

    long_name :

    array of u-grid longitudes

    units :

    degrees_east

    [259680 values with dtype=float64]

  • ulat
    (yh, nxp)
    float64
    ...

    long_name :

    array of u-grid latitudes

    units :

    degrees_north

    [259680 values with dtype=float64]

  • vlon
    (nyp, xh)
    float64
    ...

    long_name :

    array of v-grid longitudes

    units :

    degrees_east

    [259740 values with dtype=float64]

  • vlat
    (nyp, xh)
    float64
    ...

    long_name :

    array of v-grid latitudes

    units :

    degrees_north

    [259740 values with dtype=float64]

  • lon_b
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid longitudes

    units :

    degrees_east

    [260221 values with dtype=float64]

  • lat_b
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid latitudes

    units :

    degrees_north

    [260221 values with dtype=float64]

  • dxt
    (yh, xh)
    float64
    ...

    long_name :

    x-distance between u-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dyt
    (yh, xh)
    float64
    ...

    long_name :

    y-distance between v-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dxCv
    (yh, xh)
    float64
    ...

    long_name :

    x-distance between q-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • dyCu
    (yh, xh)
    float64
    ...

    long_name :

    y-distance between q-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dxCu
    (yh, xh)
    float64
    ...

    long_name :

    x-distance between t-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dyCv
    (yh, xh)
    float64
    ...

    long_name :

    y-distance between t-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • tarea
    (yh, xh)
    float64
    ...

    long_name :

    area of t-cells

    units :

    meters^2

    [259200 values with dtype=float64]

  • tmask
    (yh, xh)
    float64
    ...

    long_name :

    ocean fraction at t-cell centers

    units :

    none

    [259200 values with dtype=float64]

  • angle
    (yh, xh)
    float64
    ...

    long_name :

    angle grid makes with latitude line

    units :

    degrees

    [259200 values with dtype=float64]

  • z_l
    (yh, xh)
    float64
    ...

    long_name :

    depth at h points

    units :

    meters

    [259200 values with dtype=float64]

  • ar
    (yh, xh)
    float64
    ...

    long_name :

    grid aspect ratio (dyt/dxt)

    units :

    none

    [259200 values with dtype=float64]

  • egs
    (yh, xh)
    float64
    ...

    long_name :

    grid effective grid spacing

    units :

    degrees

    [259200 values with dtype=float64]

• Attributes: (4)

  Description :

  CESM MOM6 2/3 degree grid

  Author :

  Frank, Fred, Gustavo (gmarques@ucar.edu)

  Created :

  2026-03-05T14:49:28.971877

  type :

  Glogal 2/3 degree grid file

infile = '/glade/work/gmarques/Projects/POP_CISM/imbie_basin_with_grids.nc'
ds_in = xr.open_dataset(infile).rename({'Lon': 'lon','Lat': 'lat'})
ds_in

<xarray.Dataset> Size: 12MB
Dimensions:   (ny: 761, nx: 761)
Dimensions without coordinates: ny, nx
Data variables:
    basin_id  (ny, nx) float32 2MB ...
    x1        (nx) float32 3kB ...
    y1        (ny) float32 3kB ...
    X         (ny, nx) float32 2MB ...
    Y         (ny, nx) float32 2MB ...
    lat       (ny, nx) float32 2MB ...
    lon       (ny, nx) float32 2MB ...
Attributes:
    history:  Mon May 18 21:46:57 2020: ncap2 -s where(basin_id==0) basin_id=...
    NCO:      netCDF Operators version 4.8.1 (Homepage = http://nco.sf.net, C...

xarray.Dataset

• Dimensions:
  • ny: 761
  • nx: 761
• Data variables: (7)
  • basin_id
    (ny, nx)
    float32
    ...

    long_name :

    number associated to a given basin

    units :

    -

    [579121 values with dtype=float32]

  • x1
    (nx)
    float32
    ...

    long_name :

    Cartesian x-coordinate collocated

    units :

    m

    [761 values with dtype=float32]

  • y1
    (ny)
    float32
    ...

    long_name :

    Cartesian y-coordinate collocated

    units :

    m

    [761 values with dtype=float32]

  • X
    (ny, nx)
    float32
    ...

    long_name :

    Cartesian x-coordinate collocated

    units :

    m

    [579121 values with dtype=float32]

  • Y
    (ny, nx)
    float32
    ...

    long_name :

    Cartesian y-coordinate collocated

    units :

    m

    [579121 values with dtype=float32]

  • lat
    (ny, nx)
    float32
    ...

    long_name :

    Latitude (Tracer)

    units :

    Degree North

    [579121 values with dtype=float32]

  • lon
    (ny, nx)
    float32
    ...

    long_name :

    Longitude (Tracer)

    units :

    Degree East

    [579121 values with dtype=float32]

• Attributes: (2)

  history :

  Mon May 18 21:46:57 2020: ncap2 -s where(basin_id==0) basin_id=16 out.nc out_new.nc Mon May 18 21:34:27 2020: ncap2 -s basin_id=basin_id-2 imbie_basin_with_grids.nc imbie_basin_with_grids_new.nc

  NCO :

  netCDF Operators version 4.8.1 (Homepage = http://nco.sf.net, Code = http://github.com/nco/nco)

ds_in = ds_in.assign_coords(lon=ds_in.lon - 180)

ds_in = ds_in.assign_coords(lat=ds_in.lat)

fig, ax = plt.subplots(nrows=1, ncols=1, subplot_kw={'projection': ccrs.SouthPolarStereo()})
plot_masks(ds_in.basin_id.values, ds_in.lon.values, ds_in.lat.values, ax, 'All masks')

print('The first mask # is {}, and the last is {}'.format( \
        ds_in.basin_id.min().values,ds_in.basin_id.max().values))
# total number of masks
total_masks = int((ds_in.basin_id.max().values - ds_in.basin_id.min().values) + 1)
print('Total # of masks is {}'.format(total_masks))

The first mask # is 1.0, and the last is 16.0
Total # of masks is 16

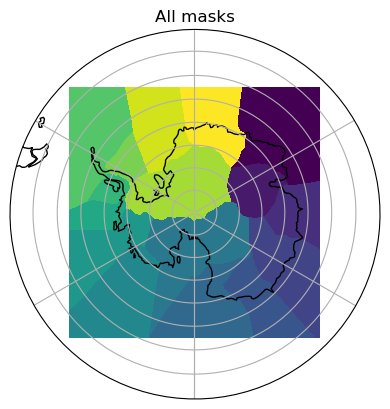

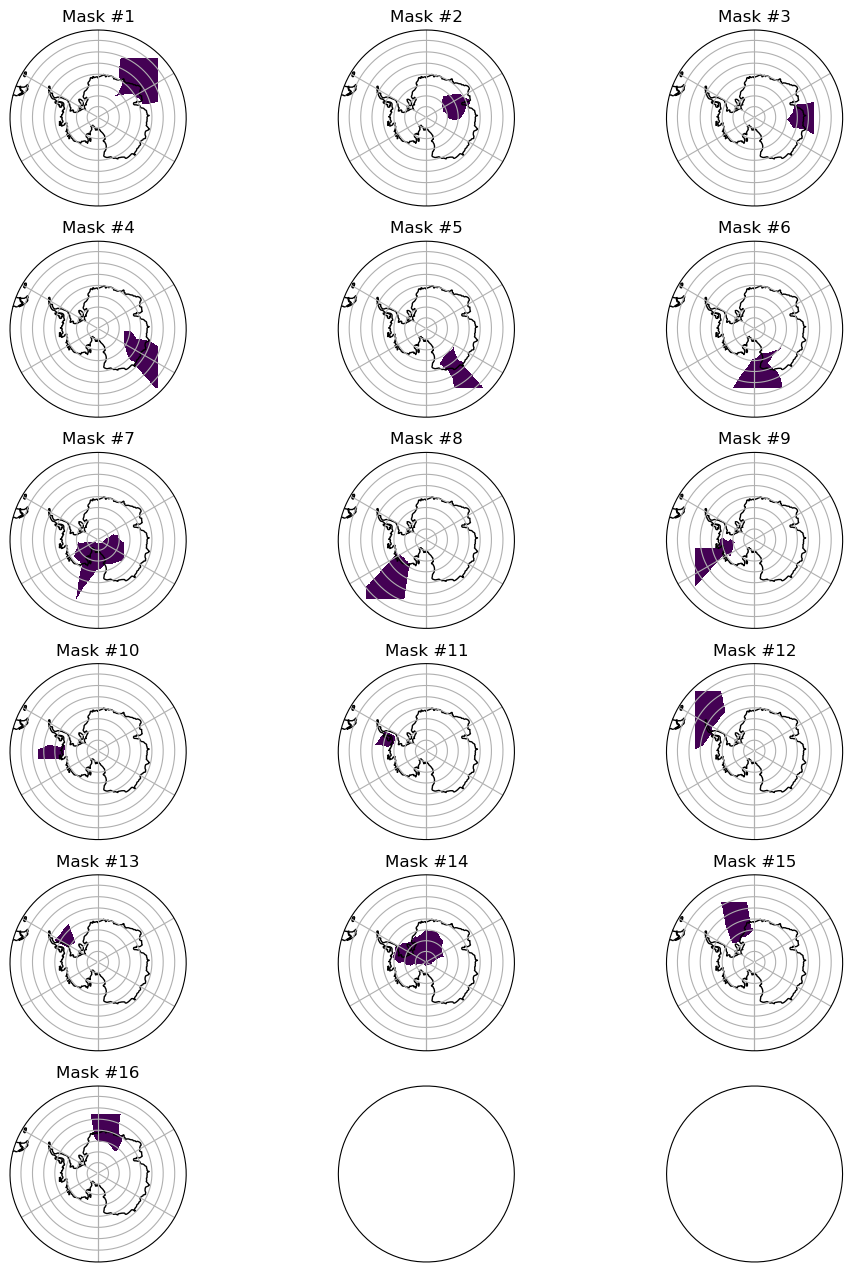

fig, ax = plt.subplots(nrows=6, ncols=3, figsize=(12,16),
                       subplot_kw={'projection': ccrs.SouthPolarStereo()})
axis=ax.flatten()
for i in np.arange(total_masks):
 plot_masks(ds_in['basin_id'].where(ds_in.basin_id==i+1).values,
            ds_in.lon.values, ds_in.lat.values, axis[i], title='Mask #'+str(i+1))

def regrid_tracer(ds_in, ds_out, method='nearest_d2s'):

    regrid = xesmf.Regridder(
        ds_in,
        ds_out,
        method=method,
        periodic=True,
    )
    fld_out = regrid(ds_in)
    return fld_out

# create DataArray for output
ny, nx = ds_out.lat.shape
basin_id_tx2_3 = xr.DataArray(np.zeros((total_masks,ny,nx)),dims=['region','yh','xh']).rename('basin_masks')
basin_id_tx2_3

<xarray.DataArray 'basin_masks' (region: 16, yh: 480, xh: 540)> Size: 33MB
array([[[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
...
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]]], shape=(16, 480, 540))
Dimensions without coordinates: region, yh, xh

xarray.DataArray

'basin_masks'

• region: 16
• yh: 480
• xh: 540

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
  ...
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]]], shape=(16, 480, 540))

ds_in

<xarray.Dataset> Size: 12MB
Dimensions:   (ny: 761, nx: 761)
Coordinates:
    lat       (ny, nx) float32 2MB -51.85 -51.9 -51.94 ... -51.94 -51.9 -51.85
    lon       (ny, nx) float32 2MB -135.0 -135.1 -135.2 ... 44.85 44.92 45.0
Dimensions without coordinates: ny, nx
Data variables:
    basin_id  (ny, nx) float32 2MB 8.0 8.0 8.0 8.0 8.0 ... 1.0 1.0 1.0 1.0 1.0
    x1        (nx) float32 3kB ...
    y1        (ny) float32 3kB ...
    X         (ny, nx) float32 2MB ...
    Y         (ny, nx) float32 2MB ...
Attributes:
    history:  Mon May 18 21:46:57 2020: ncap2 -s where(basin_id==0) basin_id=...
    NCO:      netCDF Operators version 4.8.1 (Homepage = http://nco.sf.net, C...

xarray.Dataset

• Dimensions:
  • ny: 761
  • nx: 761
• Coordinates: (2)
  • lat
    (ny, nx)
    float32
    -51.85 -51.9 ... -51.9 -51.85

    long_name :

    Latitude (Tracer)

    units :

    Degree North

    array([[-51.849564, -51.89623 , -51.942844, ..., -51.942844, -51.89623 ,
            -51.849564],
           [-51.89623 , -51.942966, -51.98966 , ..., -51.98966 , -51.942966,
            -51.89623 ],
           [-51.942844, -51.98966 , -52.036423, ..., -52.036423, -51.98966 ,
            -51.942844],
           ...,
           [-51.942844, -51.98966 , -52.036423, ..., -52.036423, -51.98966 ,
            -51.942844],
           [-51.89623 , -51.942966, -51.98966 , ..., -51.98966 , -51.942966,
            -51.89623 ],
           [-51.849564, -51.89623 , -51.942844, ..., -51.942844, -51.89623 ,
            -51.849564]], shape=(761, 761), dtype=float32)

  • lon
    (ny, nx)
    float32
    -135.0 -135.1 -135.2 ... 44.92 45.0

    long_name :

    Longitude (Tracer)

    units :

    Degree East

    array([[-135.      , -135.07549 , -135.15118 , ...,  135.15118 ,
             135.0755  ,  135.      ],
           [-134.92451 , -135.      , -135.07568 , ...,  135.07568 ,
             135.      ,  134.9245  ],
           [-134.84882 , -134.92432 , -135.      , ...,  135.      ,
             134.92432 ,  134.84882 ],
           ...,
           [ -45.15117 ,  -45.075684,  -45.      , ...,   45.      ,
              45.075684,   45.15117 ],
           [ -45.075485,  -45.      ,  -44.924316, ...,   44.924316,
              45.      ,   45.075485],
           [ -45.      ,  -44.924515,  -44.84883 , ...,   44.84883 ,
              44.924515,   45.      ]], shape=(761, 761), dtype=float32)

• Data variables: (5)
  • basin_id
    (ny, nx)
    float32
    8.0 8.0 8.0 8.0 ... 1.0 1.0 1.0 1.0

    long_name :

    number associated to a given basin

    units :

    -

    array([[ 8.,  8.,  8., ...,  4.,  4.,  4.],
           [ 8.,  8.,  8., ...,  4.,  4.,  4.],
           [ 8.,  8.,  8., ...,  4.,  4.,  4.],
           ...,
           [12., 12., 12., ...,  1.,  1.,  1.],
           [12., 12., 12., ...,  1.,  1.,  1.],
           [12., 12., 12., ...,  1.,  1.,  1.]], shape=(761, 761), dtype=float32)

  • x1
    (nx)
    float32
    ...

    long_name :

    Cartesian x-coordinate collocated

    units :

    m

    [761 values with dtype=float32]

  • y1
    (ny)
    float32
    ...

    long_name :

    Cartesian y-coordinate collocated

    units :

    m

    [761 values with dtype=float32]

  • X
    (ny, nx)
    float32
    ...

    long_name :

    Cartesian x-coordinate collocated

    units :

    m

    [579121 values with dtype=float32]

  • Y
    (ny, nx)
    float32
    ...

    long_name :

    Cartesian y-coordinate collocated

    units :

    m

    [579121 values with dtype=float32]

• Attributes: (2)

  history :

  Mon May 18 21:46:57 2020: ncap2 -s where(basin_id==0) basin_id=16 out.nc out_new.nc Mon May 18 21:34:27 2020: ncap2 -s basin_id=basin_id-2 imbie_basin_with_grids.nc imbie_basin_with_grids_new.nc

  NCO :

  netCDF Operators version 4.8.1 (Homepage = http://nco.sf.net, Code = http://github.com/nco/nco)

for i in np.arange(total_masks):
  print('Processing  ',i+1)
  dummy = ds_in['basin_id'].where(ds_in['basin_id']==i+1).fillna(0)
  dummy1 = regrid_tracer(dummy, ds_out)
  dummy2 = xr.where(dummy1 != 0, 1, 0)
  basin_id_tx2_3[i,:] = dummy2.data #np.nan_to_num(dummy1.data)

Processing   1
Processing   2
Processing   3
Processing   4
Processing   5
Processing   6
Processing   7
Processing   8
Processing   9
Processing   10
Processing   11
Processing   12
Processing   13
Processing   14
Processing   15
Processing   16

basin_id_tx2_3 = basin_id_tx2_3.assign_coords(lon=ds_out.lon)
basin_id_tx2_3 = basin_id_tx2_3.assign_coords(lat=ds_out.lat)

Select just the southern ocean from ds_out

ds_out_so = basin_id_tx2_3.sel(yh=slice(0,180))

ds_out_so

<xarray.DataArray 'basin_masks' (region: 16, yh: 180, xh: 540)> Size: 12MB
array([[[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 1., 0.],
        [1., 1., 0., ..., 1., 1., 1.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
...
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]]], shape=(16, 180, 540))
Coordinates:
    lon      (yh, xh) float64 778kB -286.7 -286.0 -285.3 ... 71.33 72.0 72.67
    lat      (yh, xh) float64 778kB -81.56 -81.56 -81.56 ... -28.72 -28.72
Dimensions without coordinates: region, yh, xh

xarray.DataArray

'basin_masks'

• region: 16
• yh: 180
• xh: 540

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 1., 0.],
          [1., 1., 0., ..., 1., 1., 1.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
  ...
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]]], shape=(16, 180, 540))

• Coordinates: (2)
  • lon
    (yh, xh)
    float64
    -286.7 -286.0 -285.3 ... 72.0 72.67

    long_name :

    array of t-grid longitudes

    units :

    degrees_east

    array([[-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           [-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           [-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           ...,
           [-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           [-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           [-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667]], shape=(180, 540))

  • lat
    (yh, xh)
    float64
    -81.56 -81.56 ... -28.72 -28.72

    long_name :

    array of t-grid latitudes

    units :

    degrees_north

    array([[-81.558125, -81.558125, -81.558125, ..., -81.558125, -81.558125,
            -81.558125],
           [-81.459689, -81.459689, -81.459689, ..., -81.459689, -81.459689,
            -81.459689],
           [-81.360114, -81.360114, -81.360114, ..., -81.360114, -81.360114,
            -81.360114],
           ...,
           [-29.879038, -29.879038, -29.879038, ..., -29.879038, -29.879038,
            -29.879038],
           [-29.299316, -29.299316, -29.299316, ..., -29.299316, -29.299316,
            -29.299316],
           [-28.716284, -28.716284, -28.716284, ..., -28.716284, -28.716284,
            -28.716284]], shape=(180, 540))

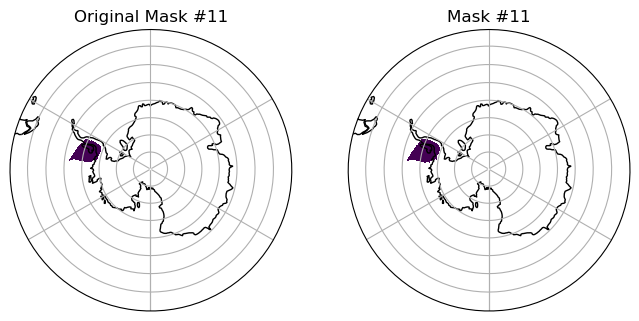

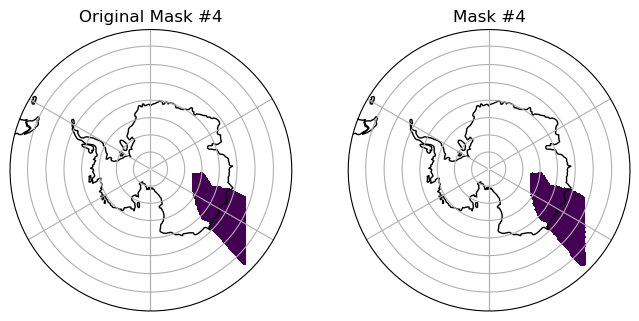

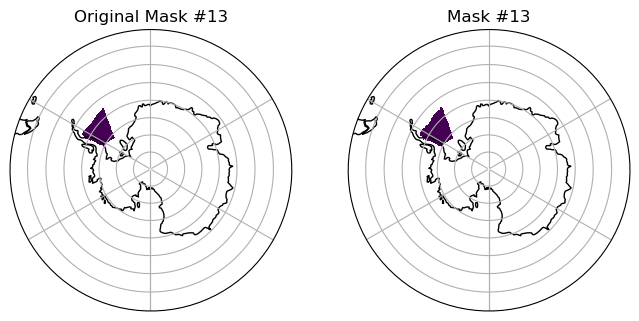

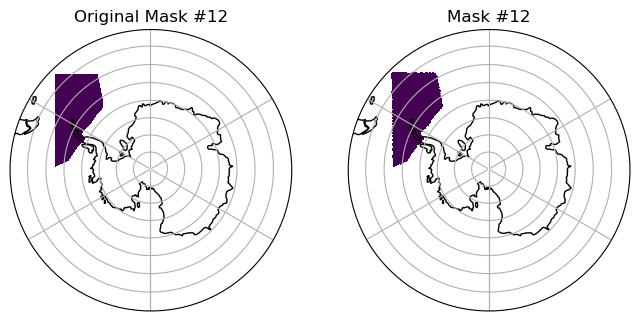

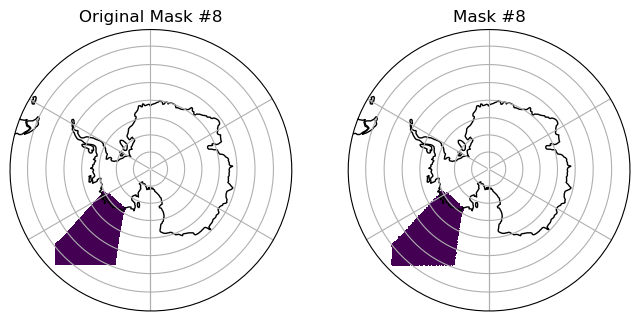

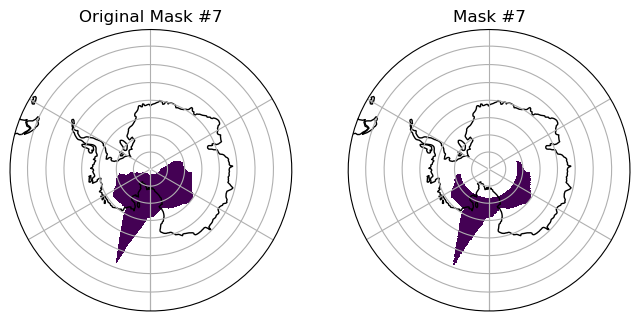

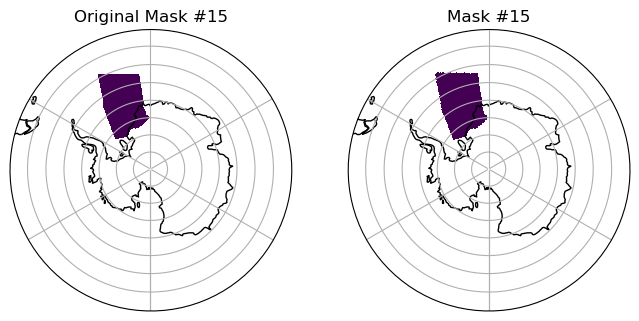

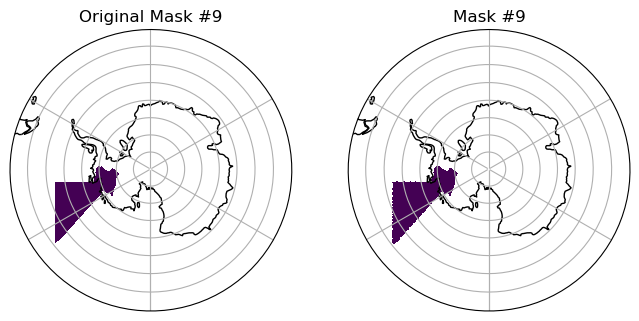

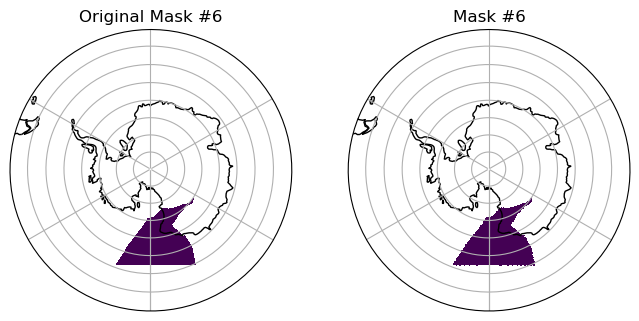

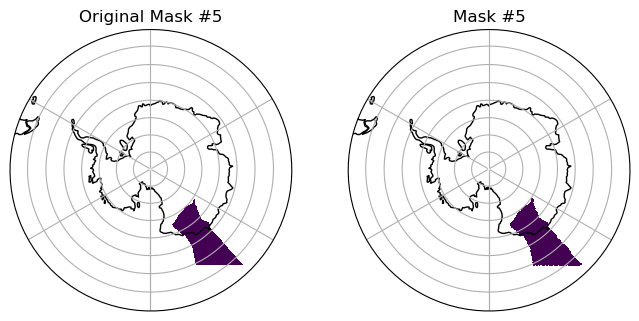

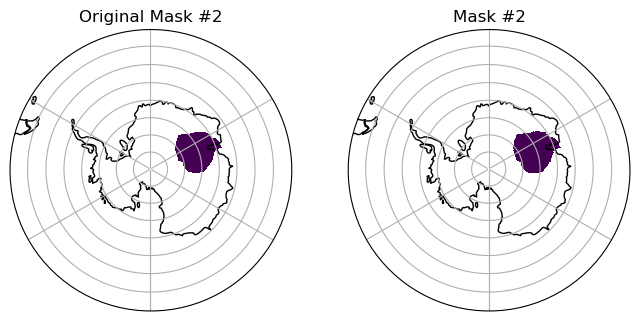

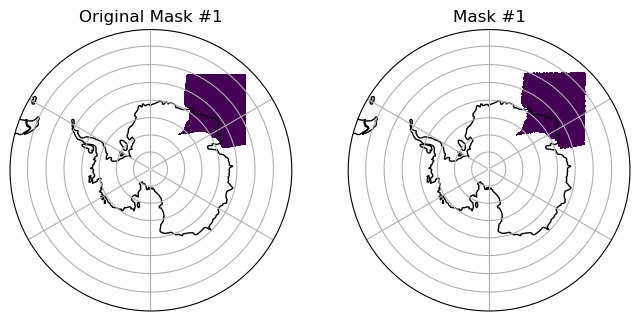

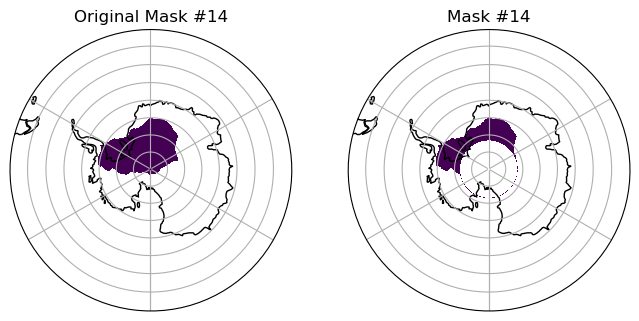

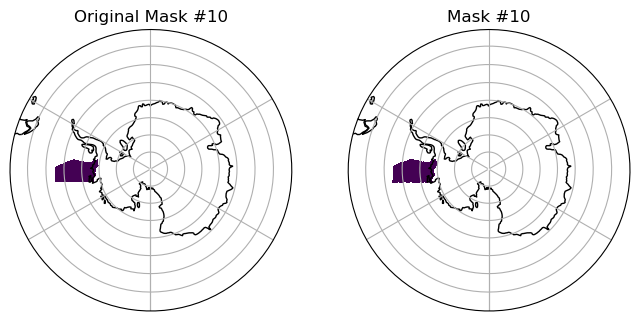

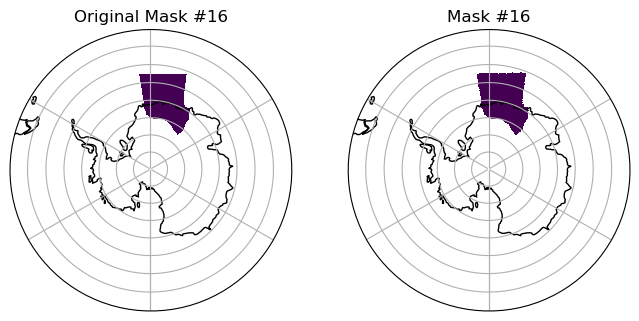

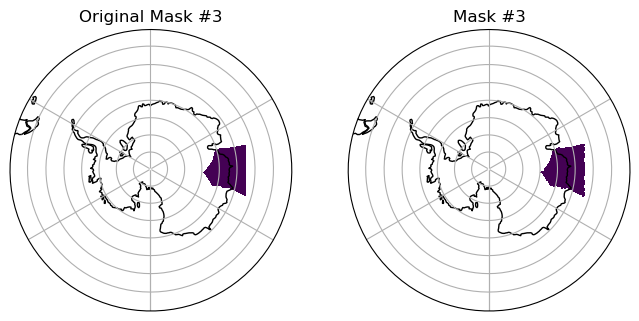

Visual inspection

Make sure original and remapped plots look similar.

%matplotlib inline

for i in np.arange(total_masks):
  fig, ax = plt.subplots(nrows=1, ncols=2, figsize=(8,4),
                       subplot_kw={'projection': ccrs.SouthPolarStereo()})
  axis=ax.flatten()
  # original
  plot_masks(ds_in['basin_id'].where(ds_in.basin_id==i+1).values,
            ds_in.lon.values, ds_in.lat.values, axis[0], title='Original Mask #'+str(i+1))
  # remmaped
  dummy1 = np.ma.masked_invalid(ds_out_so[i,:].values)
  dummy2 = np.ma.masked_where(ds_out_so[i,:].values==0, dummy1)
  plot_masks(dummy2,ds_out_so.lon.values, ds_out_so.lat.values,
             ax[1], title='Mask #'+str(i+1))

basin_id_tx2_3

<xarray.DataArray 'basin_masks' (region: 16, yh: 480, xh: 540)> Size: 33MB
array([[[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 1., 0.],
        [1., 1., 0., ..., 1., 1., 1.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
...
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]]], shape=(16, 480, 540))
Coordinates:
    lon      (yh, xh) float64 2MB -286.7 -286.0 -285.3 ... 72.97 72.98 73.0
    lat      (yh, xh) float64 2MB -81.56 -81.56 -81.56 ... 50.27 50.11 49.99
Dimensions without coordinates: region, yh, xh

xarray.DataArray

'basin_masks'

• region: 16
• yh: 480
• xh: 540

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 1., 0.],
          [1., 1., 0., ..., 1., 1., 1.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
  ...
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]]], shape=(16, 480, 540))

• Coordinates: (2)
  • lon
    (yh, xh)
    float64
    -286.7 -286.0 -285.3 ... 72.98 73.0

    long_name :

    array of t-grid longitudes

    units :

    degrees_east

    array([[-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           [-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           [-286.666667, -286.      , -285.333333, ...,   71.333333,   72.      ,
              72.666667],
           ...,
           [-286.970638, -286.909025, -286.86341 , ...,   72.86341 ,   72.909025,
              72.970638],
           [-286.987224, -286.947478, -286.919655, ...,   72.919655,   72.947478,
              72.987224],
           [-286.999825, -286.983349, -286.973852, ...,   72.973852,   72.983349,
              72.999825]], shape=(480, 540))

  • lat
    (yh, xh)
    float64
    -81.56 -81.56 ... 50.11 49.99

    long_name :

    array of t-grid latitudes

    units :

    degrees_north

    array([[-81.558125, -81.558125, -81.558125, ..., -81.558125, -81.558125,
            -81.558125],
           [-81.459689, -81.459689, -81.459689, ..., -81.459689, -81.459689,
            -81.459689],
           [-81.360114, -81.360114, -81.360114, ..., -81.360114, -81.360114,
            -81.360114],
           ...,
           [ 49.981551,  50.10076 ,  50.266038, ...,  50.266038,  50.10076 ,
             49.981551],
           [ 49.988104,  50.105166,  50.270311, ...,  50.270311,  50.105166,
             49.988104],
           [ 49.993627,  50.107298,  50.272397, ...,  50.272397,  50.107298,
             49.993627]], shape=(480, 540))

basin_id_tx2_3.attrs['description'] = 'Imbie basins remapped to tx2_3'
basin_id_tx2_3.attrs['author'] = 'Gustavo Marques (gmarques@ucar.edu)'
basin_id_tx2_3.attrs['date'] = today
basin_id_tx2_3.attrs['url'] = 'https://github.com/NCAR/tx2_3/basin_masks'
# save
fname = 'imbie_basins_tx2_3_{}.nc'.format(today)

basin_id_tx2_3.to_netcdf(fname)
