Create a 2D mask with zero in the Lab Sea and one elsewhere

%load_ext autoreload
%autoreload 2

import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
import datetime
import subprocess, os, warnings
warnings.filterwarnings("ignore")

%matplotlib inline

today = datetime.date.today().strftime("%y%m%d")
print(today)

260306

grd = xr.open_dataset('../mesh/tx2_3v3_grid.nc')
grd

<xarray.Dataset>
Dimensions:  (ny: 480, nx: 540, nxp: 541, nyp: 481)
Dimensions without coordinates: ny, nx, nxp, nyp
Data variables: (12/20)
    tlon     (ny, nx) float64 ...
    tlat     (ny, nx) float64 ...
    ulon     (ny, nxp) float64 ...
    ulat     (ny, nxp) float64 ...
    vlon     (nyp, nx) float64 ...
    vlat     (nyp, nx) float64 ...
    ...       ...
    tarea    (ny, nx) float64 ...
    tmask    (ny, nx) float64 ...
    angle    (ny, nx) float64 ...
    depth    (ny, nx) float64 ...
    ar       (ny, nx) float64 ...
    egs      (ny, nx) float64 ...
Attributes:
    Description:  CESM MOM6 2/3 degree grid
    Author:       Frank, Fred, Gustavo (gmarques@ucar.edu)
    Created:      2026-03-05T14:49:28.971877
    type:         Glogal 2/3 degree grid file

xarray.Dataset

• Dimensions:
  • ny: 480
  • nx: 540
  • nxp: 541
  • nyp: 481
• Coordinates: (0)
• Data variables: (20)
  • tlon
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid longitudes

    units :

    degrees_east

    [259200 values with dtype=float64]

  • tlat
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid latitudes

    units :

    degrees_north

    [259200 values with dtype=float64]

  • ulon
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid longitudes

    units :

    degrees_east

    [259680 values with dtype=float64]

  • ulat
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid latitudes

    units :

    degrees_north

    [259680 values with dtype=float64]

  • vlon
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid longitudes

    units :

    degrees_east

    [259740 values with dtype=float64]

  • vlat
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid latitudes

    units :

    degrees_north

    [259740 values with dtype=float64]

  • qlon
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid longitudes

    units :

    degrees_east

    [260221 values with dtype=float64]

  • qlat
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid latitudes

    units :

    degrees_north

    [260221 values with dtype=float64]

  • dxt
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between u-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dyt
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between v-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dxCv
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between q-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • dyCu
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between q-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dxCu
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between t-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dyCv
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between t-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • tarea
    (ny, nx)
    float64
    ...

    long_name :

    area of t-cells

    units :

    meters^2

    [259200 values with dtype=float64]

  • tmask
    (ny, nx)
    float64
    ...

    long_name :

    ocean fraction at t-cell centers

    units :

    none

    [259200 values with dtype=float64]

  • angle
    (ny, nx)
    float64
    ...

    long_name :

    angle grid makes with latitude line

    units :

    degrees

    [259200 values with dtype=float64]

  • depth
    (ny, nx)
    float64
    ...

    long_name :

    depth at h points

    units :

    meters

    [259200 values with dtype=float64]

  • ar
    (ny, nx)
    float64
    ...

    long_name :

    grid aspect ratio (dyt/dxt)

    units :

    none

    [259200 values with dtype=float64]

  • egs
    (ny, nx)
    float64
    ...

    long_name :

    grid effective grid spacing

    units :

    degrees

    [259200 values with dtype=float64]

• Indexes: (0)
• Attributes: (4)

  Description :

  CESM MOM6 2/3 degree grid

  Author :

  Frank, Fred, Gustavo (gmarques@ucar.edu)

  Created :

  2026-03-05T14:49:28.971877

  type :

  Glogal 2/3 degree grid file

masks = xr.open_dataset('/glade/work/gmarques/cesm/tx2_3/basin_masks/basin_masks_tx2_3v3_260306.nc')
masks = masks.rename({'yh':'LAT', 'xh':'LON'})

masks

<xarray.Dataset>
Dimensions:      (region: 18, LAT: 480, LON: 540)
Coordinates:
  * region       (region) <U17 'Global' 'PersianGulf' ... 'SouthernOcean60S'
Dimensions without coordinates: LAT, LON
Data variables:
    basin_masks  (region, LAT, LON) float64 ...

xarray.Dataset

• Dimensions:
  • region: 18
  • LAT: 480
  • LON: 540
• Coordinates: (1)
  • region
    (region)
    <U17
    'Global' ... 'SouthernOcean60S'

    array(['Global', 'PersianGulf', 'RedSea', 'BlackSea', 'MedSea', 'BalticSea',
           'HudsonBay', 'Arctic', 'PacificOcean', 'AtlanticOcean', 'IndianOcean',
           'SouthernOcean', 'LabSea', 'BaffinBay', 'EGreenlandIceland',
           'GulfOfMexico', 'Maritime', 'SouthernOcean60S'], dtype='<U17')

• Data variables: (1)
  • basin_masks
    (region, LAT, LON)
    float64
    ...

    description :

    Basin masks for tx2_3v3

    author :

    Gustavo Marques (gmarques@ucar.edu)

    date :

    260306

    infile :

    ../mesh/tx2_3v3_grid.nc

    url :

    https://github.com/NCAR/tx2_3/basin_masks

    [4665600 values with dtype=float64]

• Indexes: (1)
  • region
    PandasIndex

    PandasIndex(Index(['Global', 'PersianGulf', 'RedSea', 'BlackSea', 'MedSea', 'BalticSea',
           'HudsonBay', 'Arctic', 'PacificOcean', 'AtlanticOcean', 'IndianOcean',
           'SouthernOcean', 'LabSea', 'BaffinBay', 'EGreenlandIceland',
           'GulfOfMexico', 'Maritime', 'SouthernOcean60S'],
          dtype='str', name='region'))

• Attributes: (0)

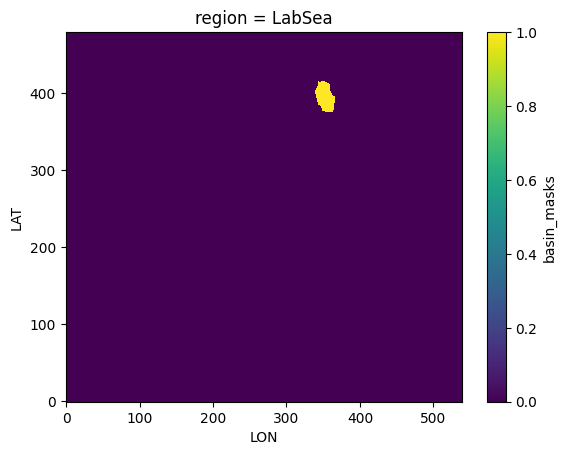

masks.basin_masks.sel(region='LabSea').plot()

<matplotlib.collections.QuadMesh at 0x14c7420362d0>

#create dataset

# extract coordinates from masks dataset
lat = masks["LAT"]
lon = masks["LON"]
fill = -1e34
# create empty Cr field
Cr = xr.DataArray(
    np.full((lat.size, lon.size), fill, dtype="float32"),
    dims=("LAT", "LON"),
    coords={"LAT": lat, "LON": lon},
    name="Cr"
)

# add attributes
Cr.attrs = {
    "_FillValue": fill,
    "long_name": "mask, 0 in the Lab Sea 1 elsewhere",
    "units": "nondim",
    "missing_value": fill
}

# ensure coordinate attributes exist
lat.attrs.update({"units": "degrees_north", "axis": "Y"})
lon.attrs.update({"units": "degrees_east", "axis": "X"})

# create dataset
ds = xr.Dataset(
    {"Cr": Cr},
    coords={"LAT": lat, "LON": lon}
)

print(ds)

<xarray.Dataset>
Dimensions:  (LAT: 480, LON: 540)
Coordinates:
  * LAT      (LAT) int64 0 1 2 3 4 5 6 7 8 ... 472 473 474 475 476 477 478 479
  * LON      (LON) int64 0 1 2 3 4 5 6 7 8 ... 532 533 534 535 536 537 538 539
Data variables:
    Cr       (LAT, LON) float32 -1e+34 -1e+34 -1e+34 ... -1e+34 -1e+34 -1e+34

lats_out = np.zeros(len(ds.LAT))
for j in range(len(ds.LAT)):
    if grd.tlat[j,0] <= 0.:
      lats_out[j] = np.min(grd.tlat[j,0:])
    else:
      lats_out[j] = np.max(grd.tlat[j,0:])

ds = ds.assign_coords({
    "LAT": (("LAT"), lats_out),
    "LON": (("LON"), grd.tlon[0,:].data)
  })

ds['Cr'][:] = 1.0

ds['Cr'][:] = ds['Cr'][:].where(masks.basin_masks.sel(region='LabSea') != 1, 0)

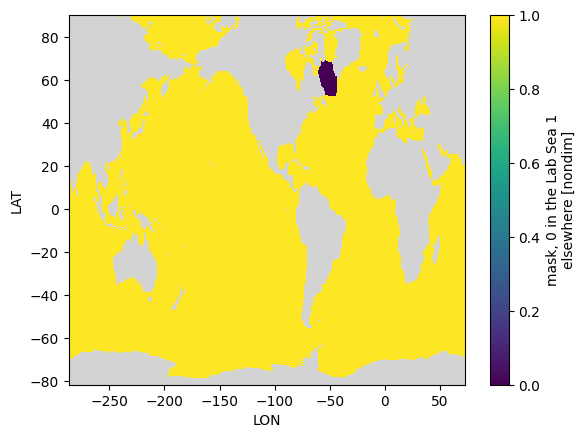

cmap = plt.cm.viridis.copy()  # or any other colormap, e.g., 'RdBu_r'
cmap.set_bad(color='lightgray')

fig, ax = plt.subplots()

(ds['Cr']).where(grd.tmask.rename({'nx' : 'LON','ny' : 'LAT'})==1).plot(ax=ax, cmap=cmap, vmax=1)

<matplotlib.collections.QuadMesh at 0x14c73e85f850>

# Global attrs
ds.attrs['long_name'] = 'MLE Cr mask (0 in the Lab Sea and 1 elsewhere)'
ds.attrs['units'] = 'nondim'
ds.attrs['author'] = 'Gustavo Marques (gmarques@ucar.edu)'
ds.attrs['date'] = datetime.now().isoformat()
ds.attrs['url'] = 'https://github.com/NCAR/tx2_3/mle_frontal_length_scale/'

ds['LON'].encoding['_FillValue']=None
ds['LAT'].encoding['_FillValue']=None
ds['LAT'].attrs['units'] = 'degrees_north'
ds['LAT'].attrs['axis'] = 'Y'

ds['LON'].attrs['units'] = 'degrees_east'
ds['LON'].attrs['axis'] = 'X'

fname = 'mle_cr_labsea_mask_tx2_3v3_{}.nc'.format(today)
# Save file
ds.to_netcdf(fname, engine="netcdf4", format="NETCDF3_64BIT_DATA")

# Close the dataset
ds.close()
