Ocean Basin Masks

import cartopy.crs as ccrs
import cartopy.feature
import matplotlib.path as mpath
from matplotlib.colors import BoundaryNorm
from matplotlib.ticker import MaxNLocator
import matplotlib.colors as mcolors
from mom6_tools.m6plot import xyplot
from mom6_tools.m6toolbox import genBasinMasks
import regionmask
import datetime
import numpy
import xarray as xr
import matplotlib.pyplot as plt
import warnings
warnings.filterwarnings("ignore")
%matplotlib inline

today = datetime.date.today().strftime("%y%m%d")
print(today)

260306

# The following parameters must be set accordingly
######################################################
# case name - must be changed for each configuration
grid_name = 'tx2_3v3'
# Path to the grid
grd_path = "../mesh/tx2_3v3_grid.nc"
# add your name and email address below
author = 'Gustavo Marques (gmarques@ucar.edu)'

grd = xr.open_dataset(grd_path)
grd

<xarray.Dataset>
Dimensions:  (ny: 480, nx: 540, nxp: 541, nyp: 481)
Dimensions without coordinates: ny, nx, nxp, nyp
Data variables: (12/20)
    tlon     (ny, nx) float64 ...
    tlat     (ny, nx) float64 ...
    ulon     (ny, nxp) float64 ...
    ulat     (ny, nxp) float64 ...
    vlon     (nyp, nx) float64 ...
    vlat     (nyp, nx) float64 ...
    ...       ...
    tarea    (ny, nx) float64 ...
    tmask    (ny, nx) float64 ...
    angle    (ny, nx) float64 ...
    depth    (ny, nx) float64 ...
    ar       (ny, nx) float64 ...
    egs      (ny, nx) float64 ...
Attributes:
    Description:  CESM MOM6 2/3 degree grid
    Author:       Frank, Fred, Gustavo (gmarques@ucar.edu)
    Created:      2026-03-05T14:49:28.971877
    type:         Glogal 2/3 degree grid file

xarray.Dataset

• Dimensions:
  • ny: 480
  • nx: 540
  • nxp: 541
  • nyp: 481
• Coordinates: (0)
• Data variables: (20)
  • tlon
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid longitudes

    units :

    degrees_east

    [259200 values with dtype=float64]

  • tlat
    (ny, nx)
    float64
    ...

    long_name :

    array of t-grid latitudes

    units :

    degrees_north

    [259200 values with dtype=float64]

  • ulon
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid longitudes

    units :

    degrees_east

    [259680 values with dtype=float64]

  • ulat
    (ny, nxp)
    float64
    ...

    long_name :

    array of u-grid latitudes

    units :

    degrees_north

    [259680 values with dtype=float64]

  • vlon
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid longitudes

    units :

    degrees_east

    [259740 values with dtype=float64]

  • vlat
    (nyp, nx)
    float64
    ...

    long_name :

    array of v-grid latitudes

    units :

    degrees_north

    [259740 values with dtype=float64]

  • qlon
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid longitudes

    units :

    degrees_east

    [260221 values with dtype=float64]

  • qlat
    (nyp, nxp)
    float64
    ...

    long_name :

    array of q-grid latitudes

    units :

    degrees_north

    [260221 values with dtype=float64]

  • dxt
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between u-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dyt
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between v-points, centered at t

    units :

    meters

    [259200 values with dtype=float64]

  • dxCv
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between q-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • dyCu
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between q-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dxCu
    (ny, nx)
    float64
    ...

    long_name :

    x-distance between t-points, centered at u

    units :

    meters

    [259200 values with dtype=float64]

  • dyCv
    (ny, nx)
    float64
    ...

    long_name :

    y-distance between t-points, centered at v

    units :

    meters

    [259200 values with dtype=float64]

  • tarea
    (ny, nx)
    float64
    ...

    long_name :

    area of t-cells

    units :

    meters^2

    [259200 values with dtype=float64]

  • tmask
    (ny, nx)
    float64
    ...

    long_name :

    ocean fraction at t-cell centers

    units :

    none

    [259200 values with dtype=float64]

  • angle
    (ny, nx)
    float64
    ...

    long_name :

    angle grid makes with latitude line

    units :

    degrees

    [259200 values with dtype=float64]

  • depth
    (ny, nx)
    float64
    ...

    long_name :

    depth at h points

    units :

    meters

    [259200 values with dtype=float64]

  • ar
    (ny, nx)
    float64
    ...

    long_name :

    grid aspect ratio (dyt/dxt)

    units :

    none

    [259200 values with dtype=float64]

  • egs
    (ny, nx)
    float64
    ...

    long_name :

    grid effective grid spacing

    units :

    degrees

    [259200 values with dtype=float64]

• Indexes: (0)
• Attributes: (4)

  Description :

  CESM MOM6 2/3 degree grid

  Author :

  Frank, Fred, Gustavo (gmarques@ucar.edu)

  Created :

  2026-03-05T14:49:28.971877

  type :

  Glogal 2/3 degree grid file

Default basins from mom6-tools

basin_code = genBasinMasks(grd.tlon.values, grd.tlat.values, grd.depth.values,xda=True).rename('basin_masks')

basin_code

<xarray.DataArray 'basin_masks' (region: 16, yh: 480, xh: 540)>
array([[[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
...
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]],

       [[0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        ...,
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.],
        [0., 0., 0., ..., 0., 0., 0.]]])
Coordinates:
  * region   (region) <U17 'Global' 'PersianGulf' ... 'GulfOfMexico'
Dimensions without coordinates: yh, xh

xarray.DataArray

'basin_masks'

• region: 16
• yh: 480
• xh: 540

• 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0 ... 0.0 0.0 0.0 0.0 0.0 0.0 0.0 0.0

  array([[[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
  ...
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]],

         [[0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          ...,
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.],
          [0., 0., 0., ..., 0., 0., 0.]]])

• Coordinates: (1)
  • region
    (region)
    <U17
    'Global' ... 'GulfOfMexico'

    array(['Global', 'PersianGulf', 'RedSea', 'BlackSea', 'MedSea', 'BalticSea',
           'HudsonBay', 'Arctic', 'PacificOcean', 'AtlanticOcean', 'IndianOcean',
           'SouthernOcean', 'LabSea', 'BaffinBay', 'EGreenlandIceland',
           'GulfOfMexico'], dtype='<U17')

• Indexes: (1)
  • region
    PandasIndex

    PandasIndex(Index(['Global', 'PersianGulf', 'RedSea', 'BlackSea', 'MedSea', 'BalticSea',
           'HudsonBay', 'Arctic', 'PacificOcean', 'AtlanticOcean', 'IndianOcean',
           'SouthernOcean', 'LabSea', 'BaffinBay', 'EGreenlandIceland',
           'GulfOfMexico'],
          dtype='str', name='region'))

• Attributes: (0)

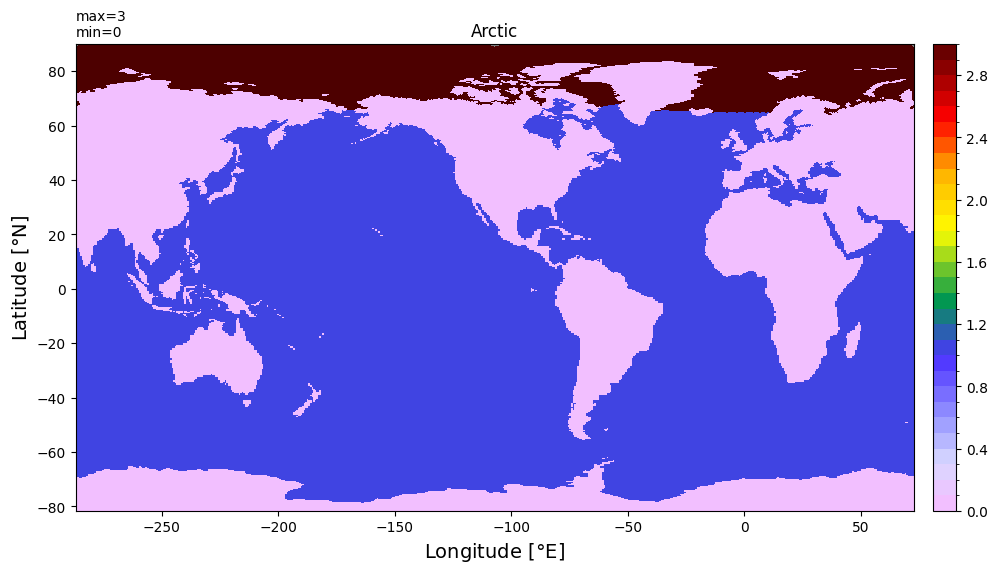

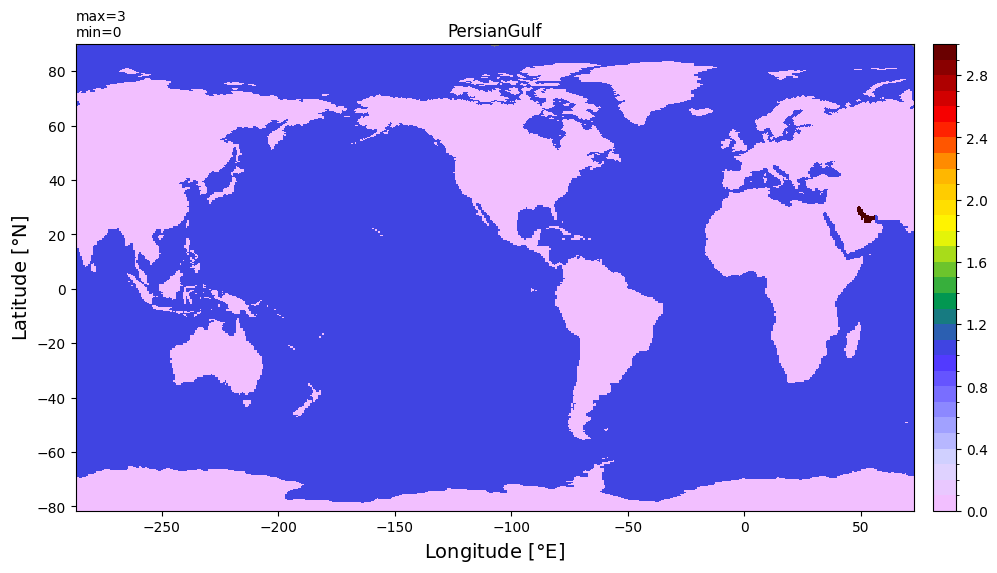

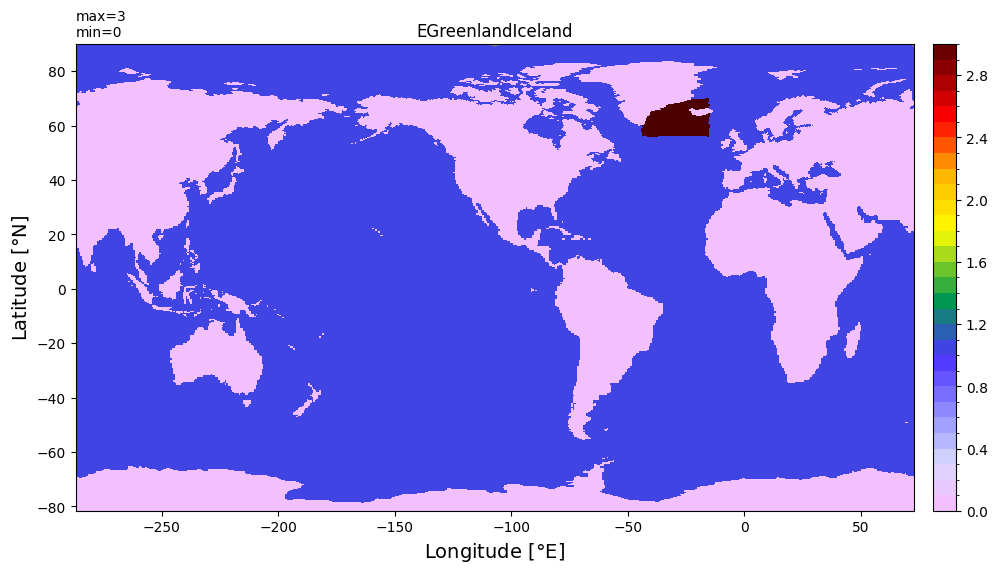

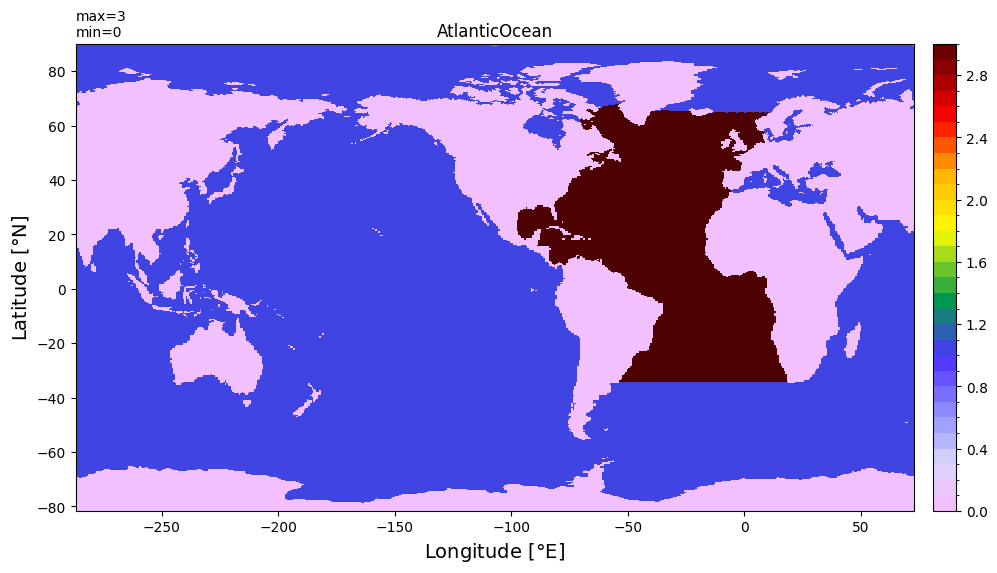

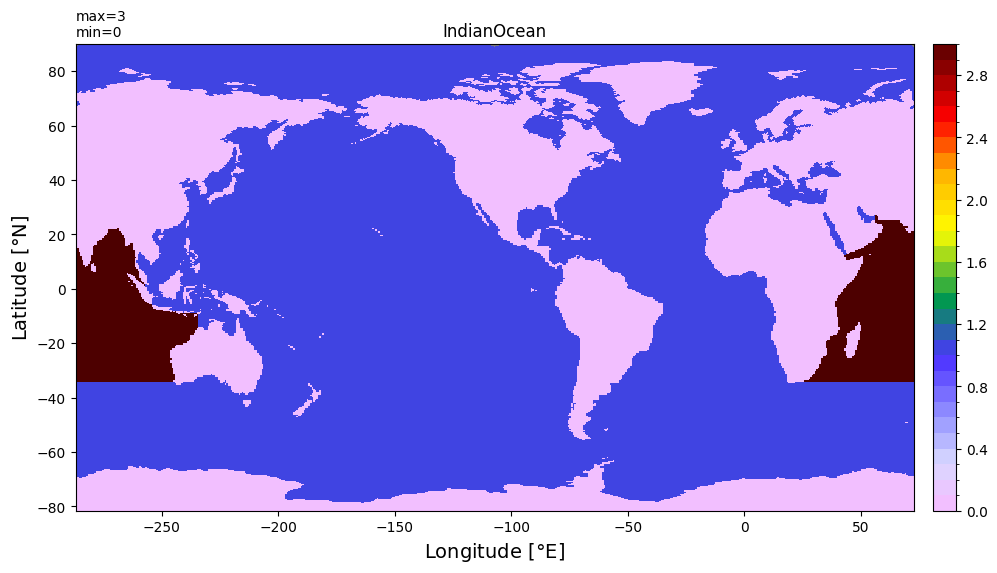

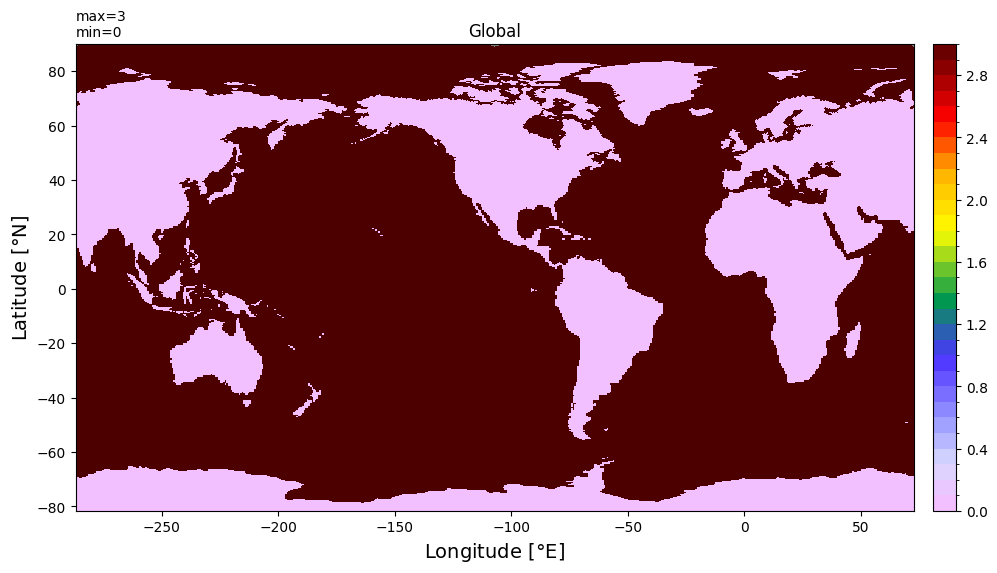

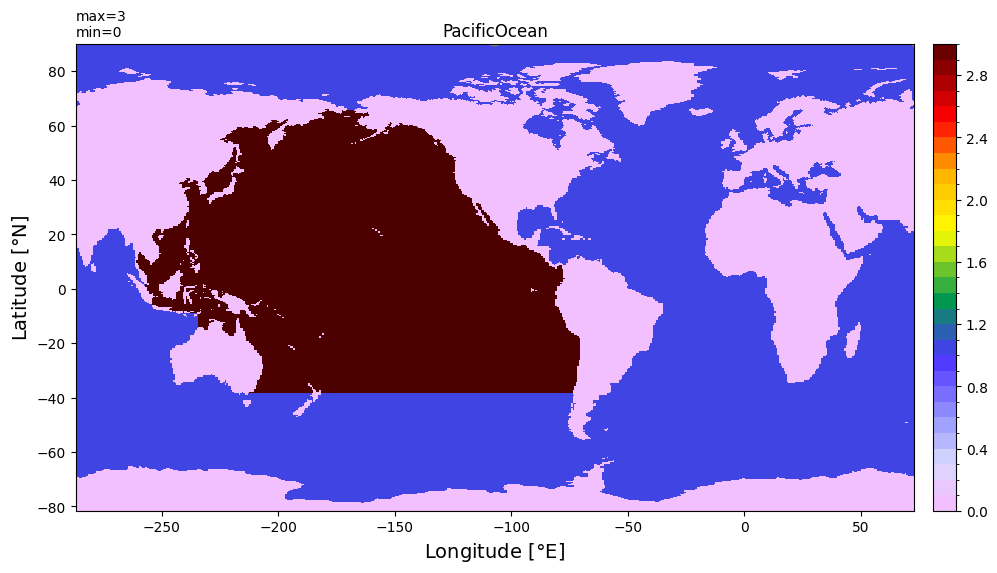

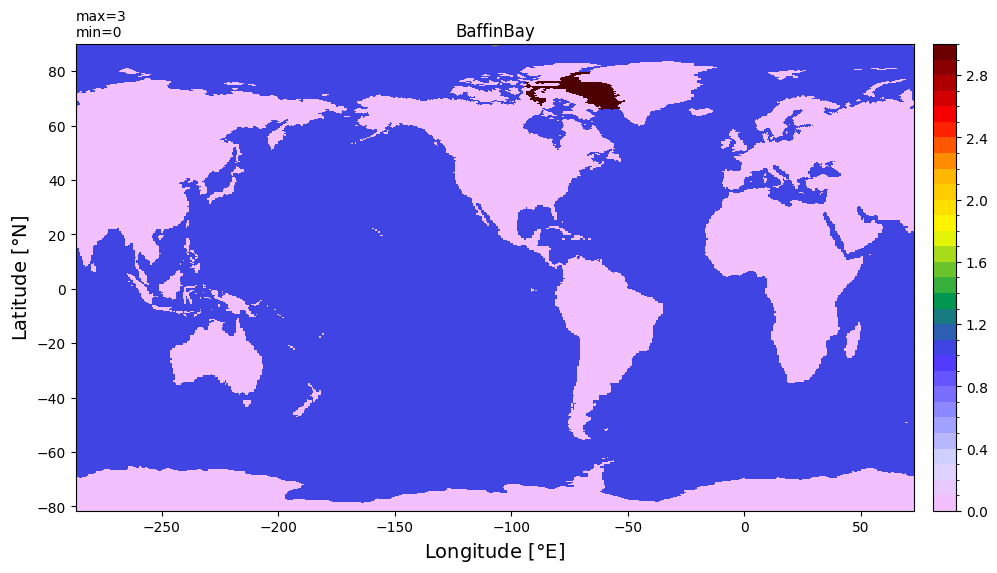

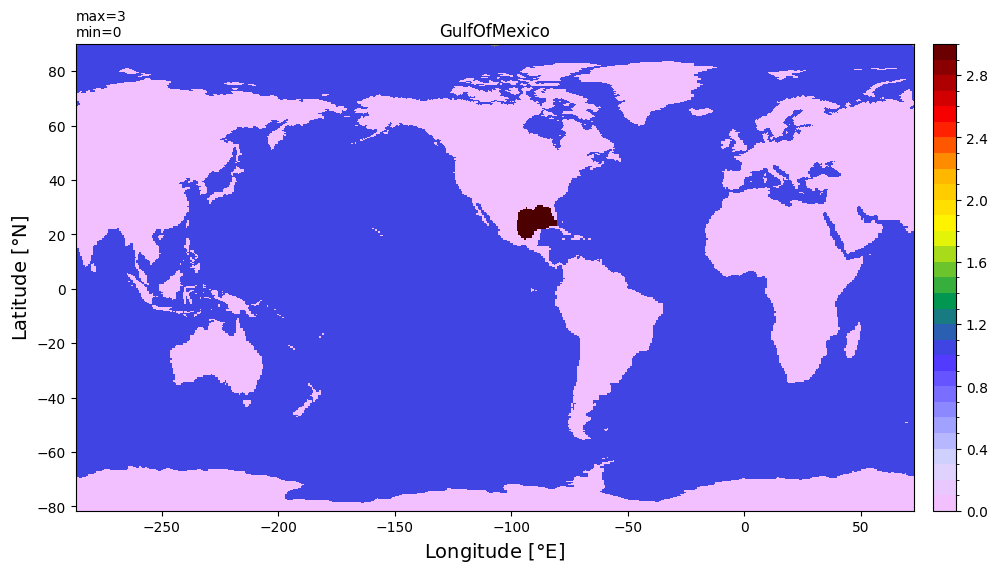

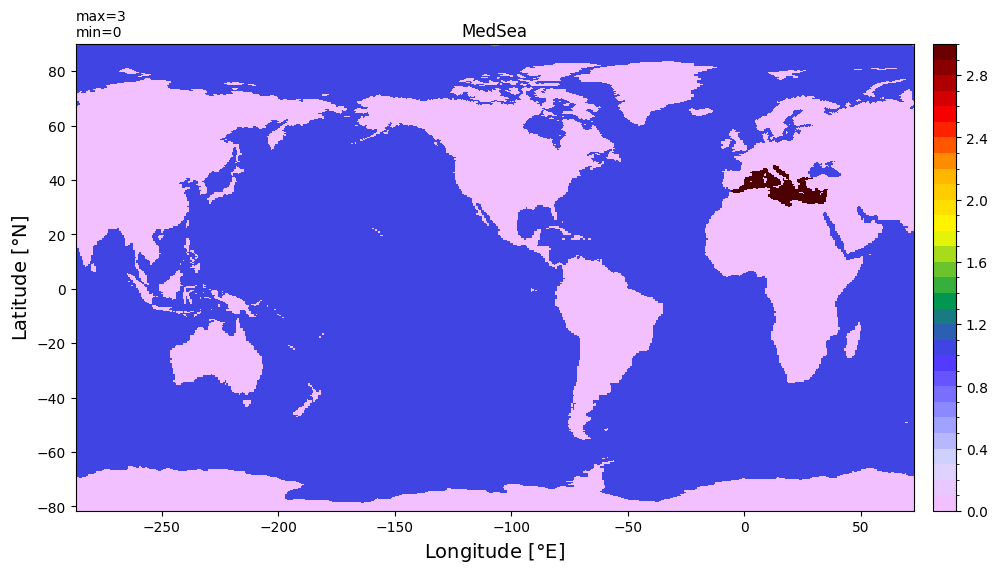

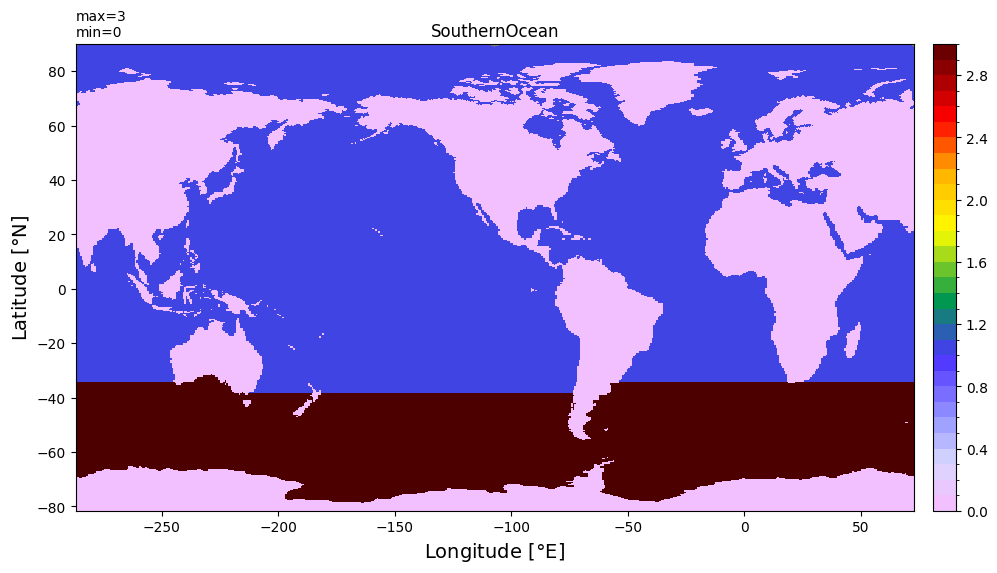

Check mask for all the regions

for r in range(len(basin_code.region)):
    xyplot((basin_code[0,:]+basin_code[r,:]*2).values, grd.tlon, grd.tlat,
          title=str(basin_code['region'][r].values))

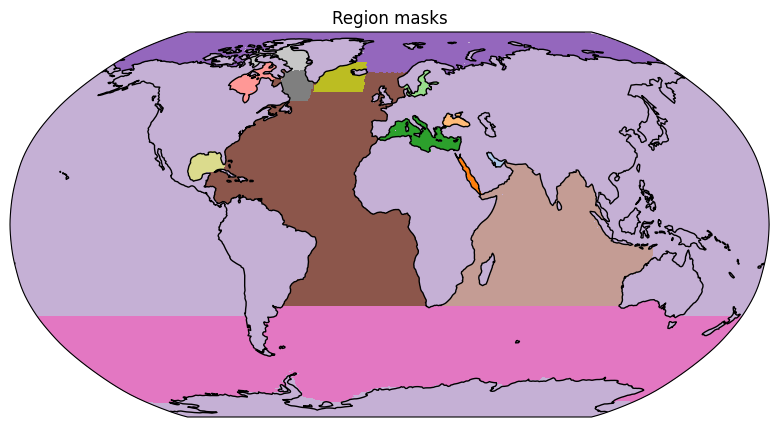

Plot all masks in a single map

a= xr.where(basin_code[1]==1, 1, numpy.nan)

val_ls = []
for key, val in mcolors.TABLEAU_COLORS.items():
    val_ls.append(val)
print(val_ls)

['#1f77b4', '#ff7f0e', '#2ca02c', '#d62728', '#9467bd', '#8c564b', '#e377c2', '#7f7f7f', '#bcbd22', '#17becf']

fig = plt.figure(figsize=(10, 5))
ax = fig.add_subplot(1, 1, 1, projection=ccrs.Robinson())

for r in range(1,len(basin_code.region)):
    mask= xr.where(basin_code[r,:]==1, r, numpy.nan)


    pc = ax.pcolormesh(grd.qlon, grd.qlat, mask.values, cmap=plt.cm.tab20,
              transform=ccrs.PlateCarree(),vmin=0, vmax=(len(basin_code.region)+1))

ax.set_title('Region masks')
ax.set_global()
ax.stock_img()
ax.coastlines();

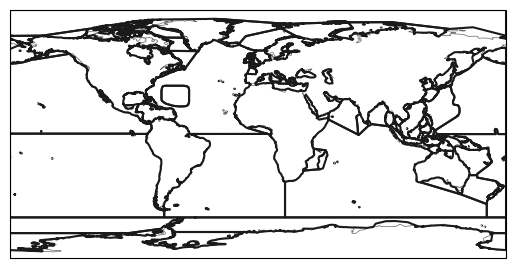

Load basins from regionmask

basins = regionmask.defined_regions.natural_earth_v4_1_0.ocean_basins_50
basins.plot(add_ocean=False, add_label=False)

<GeoAxes: >

from xmip.regionmask import merged_mask
mask = merged_mask(basins,grd.rename({'tlat':'lat', 'tlon':'lon'}))
mask

<xarray.DataArray 'mask' (ny: 480, nx: 540)>
array([[nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       ...,
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan],
       [nan, nan, nan, ..., nan, nan, nan]])
Dimensions without coordinates: ny, nx

xarray.DataArray

'mask'

• ny: 480
• nx: 540

• nan nan nan nan nan nan nan nan ... nan nan nan nan nan nan nan nan

  array([[nan, nan, nan, ..., nan, nan, nan],
         [nan, nan, nan, ..., nan, nan, nan],
         [nan, nan, nan, ..., nan, nan, nan],
         ...,
         [nan, nan, nan, ..., nan, nan, nan],
         [nan, nan, nan, ..., nan, nan, nan],
         [nan, nan, nan, ..., nan, nan, nan]])

• Coordinates: (0)
• Indexes: (0)
• Attributes: (0)

# Find unique values
unique_values = numpy.unique(mask)
unique_values

array([ 0.,  1.,  2.,  3.,  4.,  5.,  6.,  7.,  8.,  9., 10., 11., 12.,
       nan])

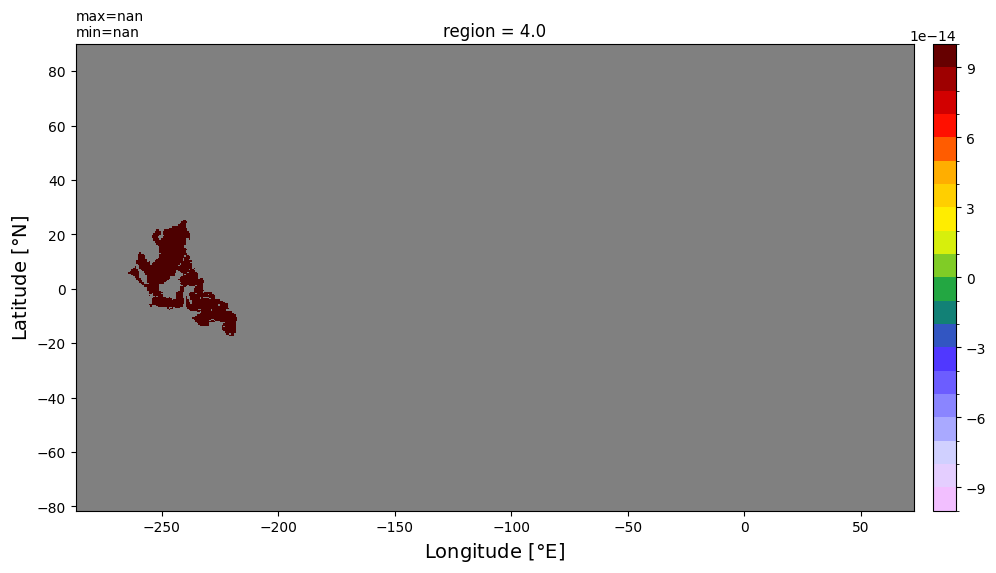

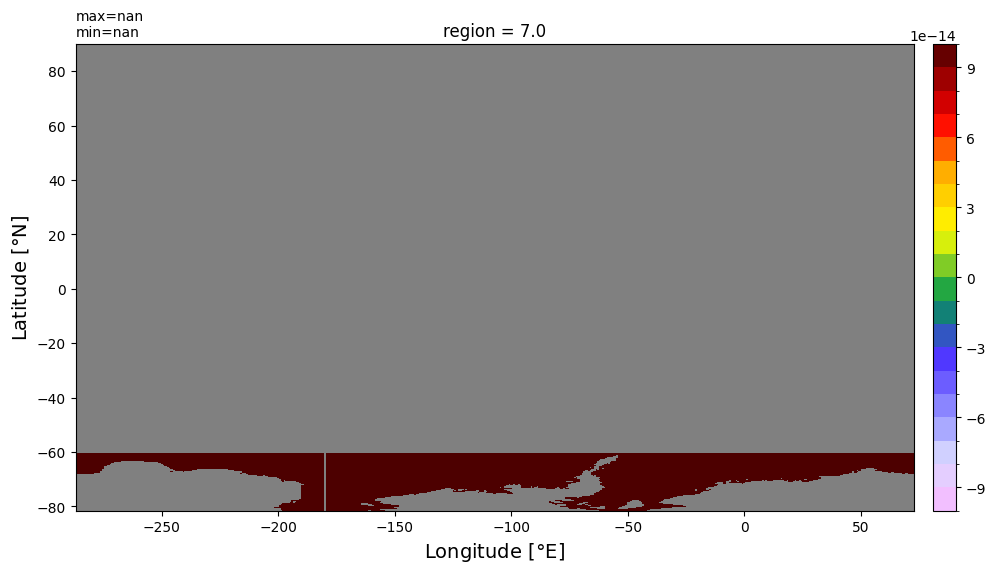

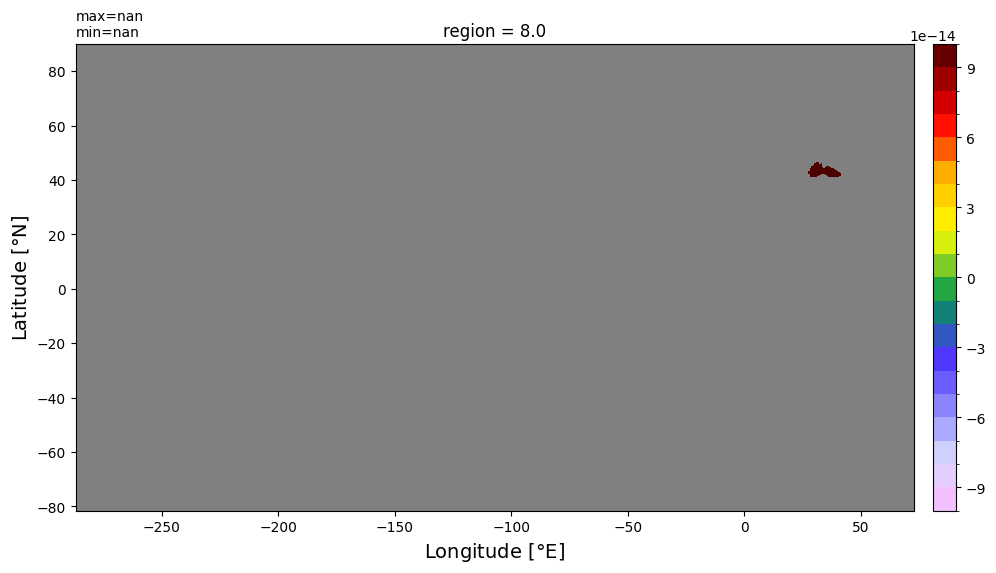

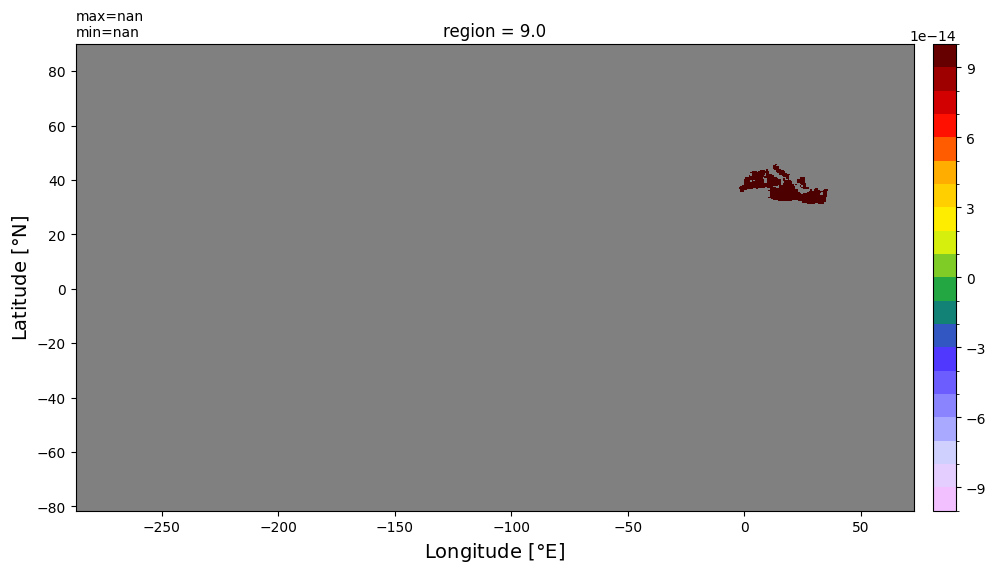

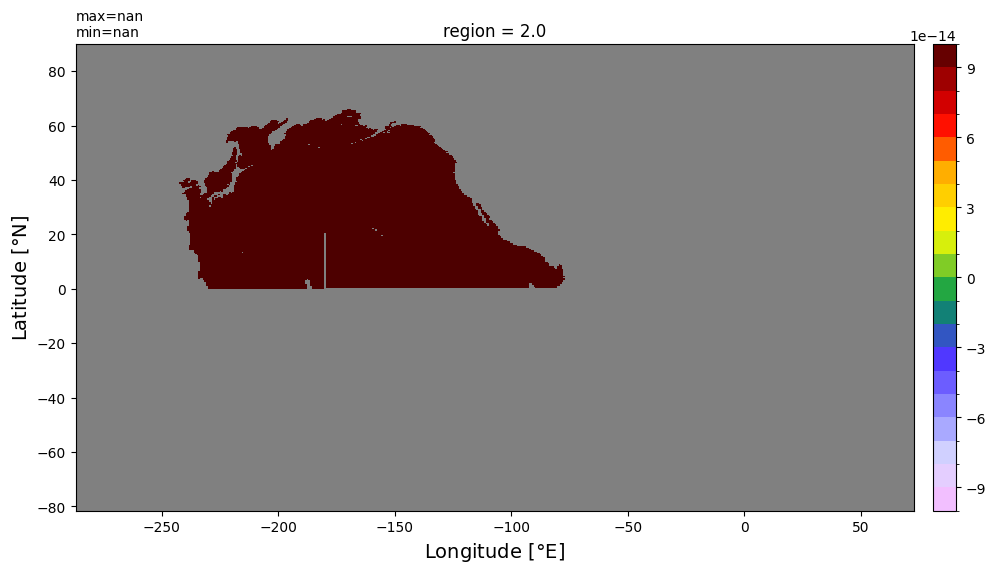

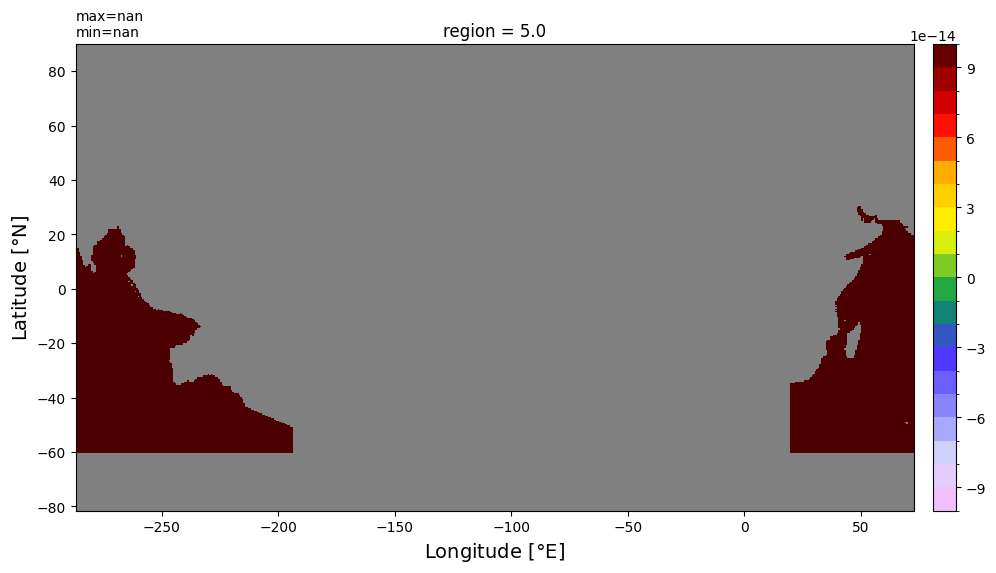

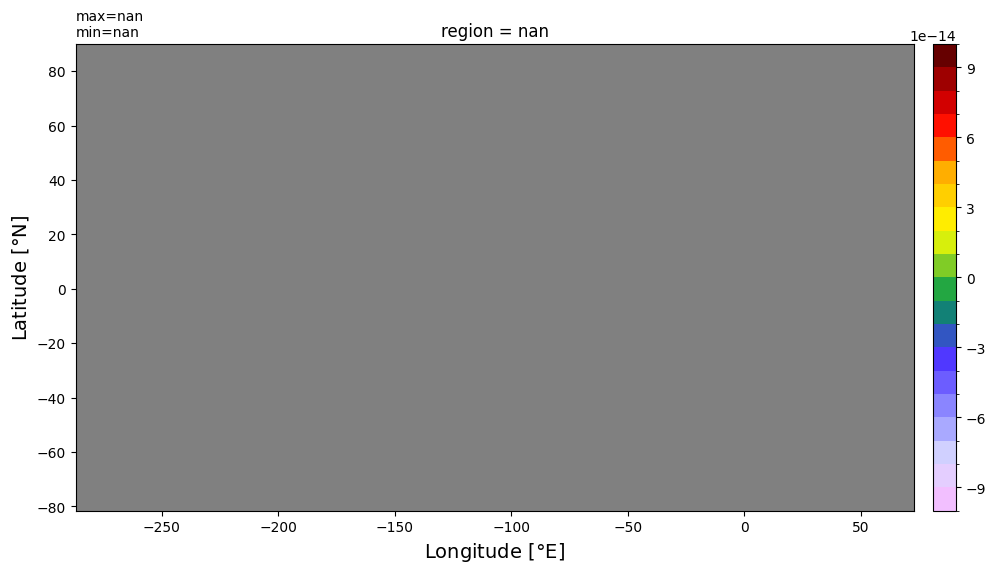

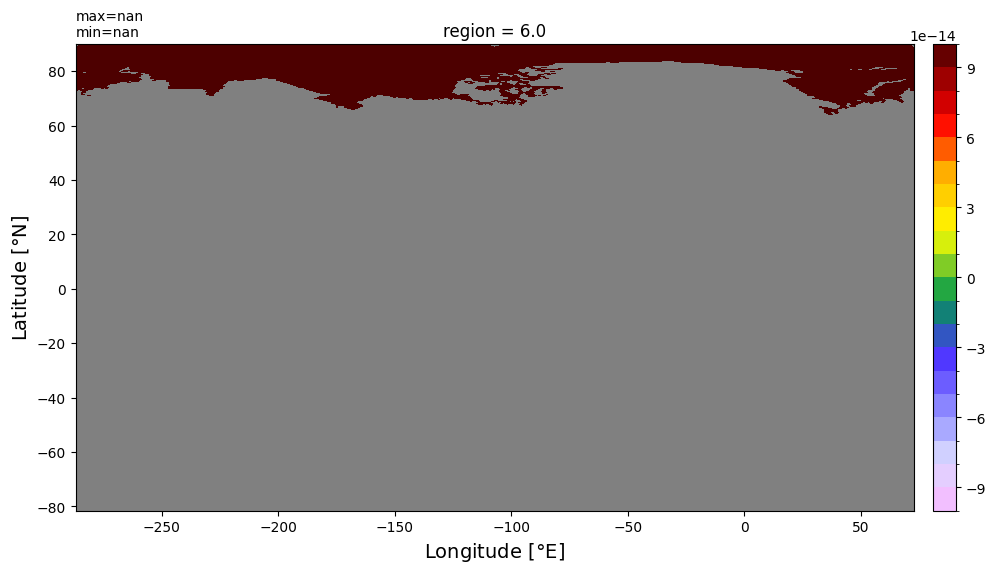

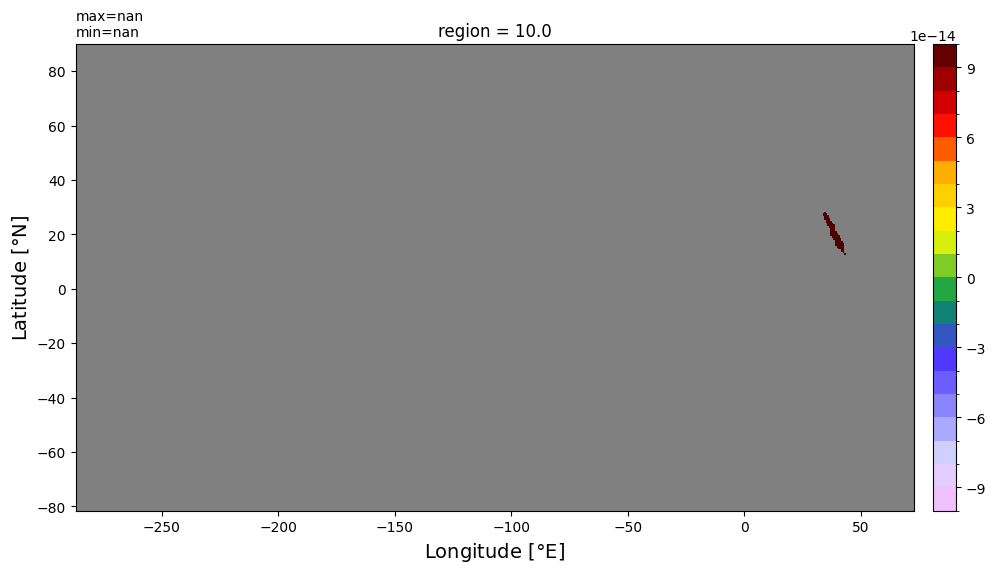

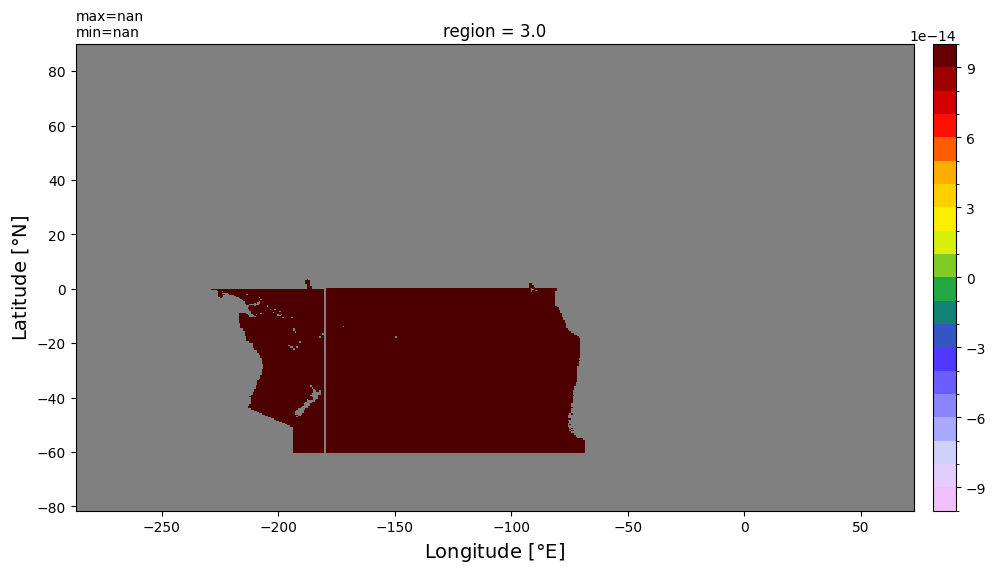

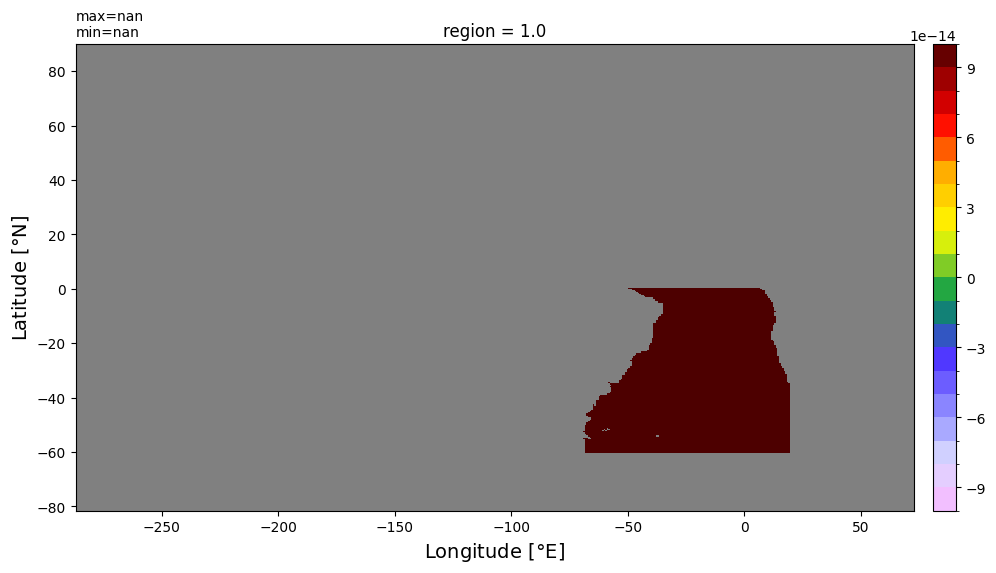

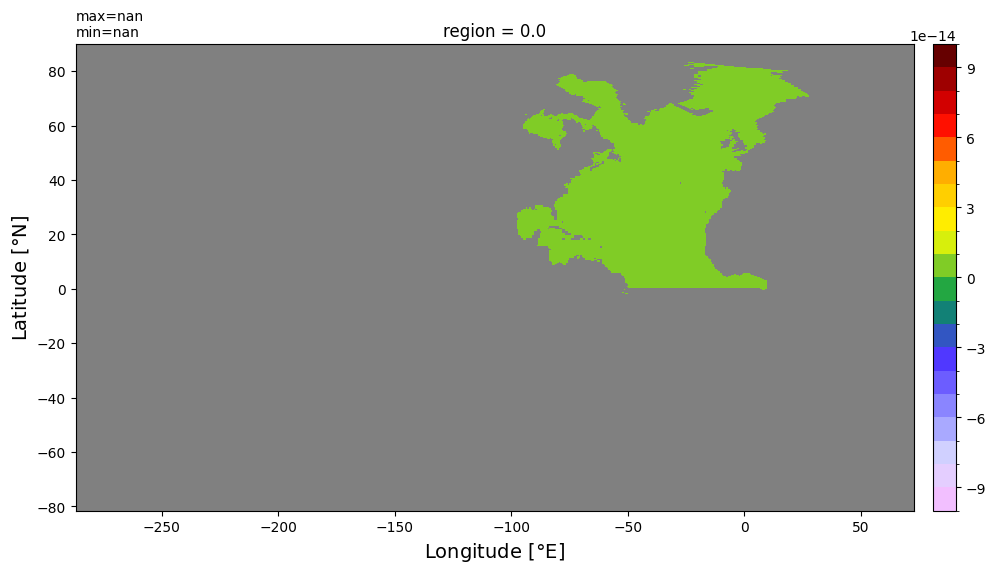

Check mask for all the regions

for r in unique_values:
    xyplot((mask.where(mask == r)).values, grd.tlon, grd.tlat,
          title='region = {}'.format(str(r)))

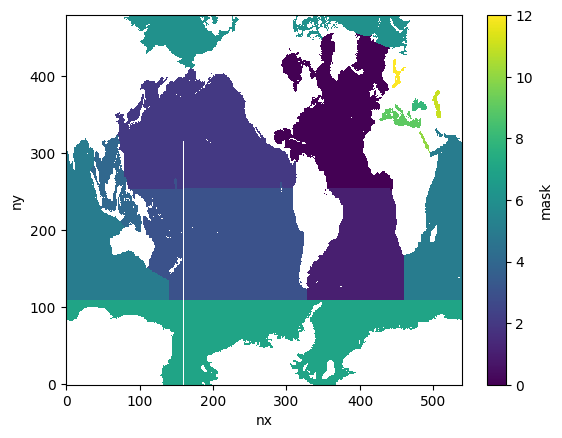

Plot all masks in a single map

mask.plot()

<matplotlib.collections.QuadMesh at 0x145a537a4450>

Add new basins into basin_code

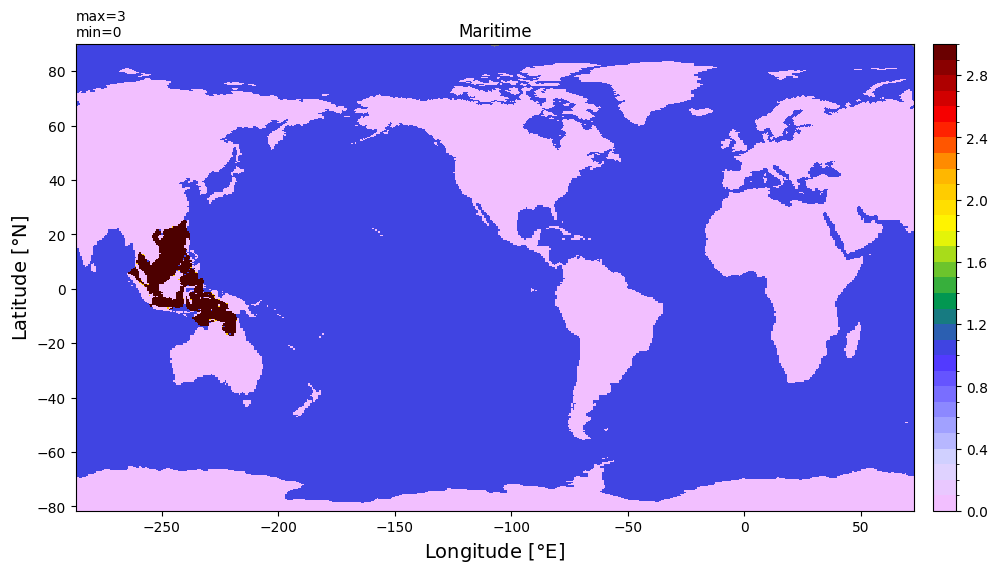

Maritime

# Expand dimensions to match `region` dimension
new_region_mask = xr.where(mask == 4, 1, 0).rename({'ny':'yh', 'nx':'xh'}).fillna(0)

# Assign a new region index (e.g., 14 if original regions are indexed 0-13)
new_region_mask = new_region_mask.expand_dims(dim={"region": [len(basin_code.region)]})  # Change to the appropriate index

# Concatenate with the existing `basin_masks`
basin_code = xr.concat([basin_code, new_region_mask], dim="region")

# Update region name

# Convert region names to a list, modify the last element, and reassign
region_names = basin_code.region.values.tolist()
region_names[-1] = 'Maritime'  # Replace last region name

# Reassign the modified region names to the dataset
basin_code = basin_code.assign_coords(region=("region", region_names))

r = len(basin_code.region)-1
(basin_code[0,:]+basin_code[r,:]*2).values
xyplot((basin_code[0,:]+basin_code[r,:]*2).values, grd.tlon, grd.tlat,
          title=str(basin_code['region'][r].values))

SouthernOcean60S

# Expand dimensions to match `region` dimension
new_region_mask = xr.where(basin_code.sel(region='SouthernOcean') == 1, 1, 0).where(grd.tlat.rename({'ny':'yh','nx':'xh'})<=-60).fillna(0)

# Assign a new region index (e.g., 14 if original regions are indexed 0-13)
new_region_mask = new_region_mask.expand_dims(dim={"region": [len(basin_code.region)]})  # Change to the appropriate index

# Concatenate with the existing `basin_masks`
basin_code = xr.concat([basin_code, new_region_mask], dim="region")

# Update region name

# Convert region names to a list, modify the last element, and reassign
region_names = basin_code.region.values.tolist()
region_names[-1] = 'SouthernOcean60S'  # Replace last region name

# Reassign the modified region names to the dataset
basin_code = basin_code.assign_coords(region=("region", region_names))

r = len(basin_code.region)-1
(basin_code[0,:]+basin_code[r,:]*2).values
xyplot((basin_code[0,:]+basin_code[r,:]*2).values, grd.tlon, grd.tlat,
          title=str(basin_code['region'][r].values))

Save as netCDF

# Global attrs
basin_code.attrs['description'] = 'Basin masks for ' + grid_name
basin_code.attrs['author'] = author
basin_code.attrs['date'] = today
basin_code.attrs['infile'] = grd_path
basin_code.attrs['url'] = 'https://github.com/NCAR/tx2_3/basin_masks'
# save
fname = 'basin_masks_{}_{}.nc'.format(grid_name, today)

basin_code.to_netcdf(fname, encoding={'basin_masks': {'_FillValue': None}})
