Equilibrium Climate Sensitivity from CMIP6

from matplotlib import pyplot as plt
import xarray as xr
import numpy as np
import dask
from dask.diagnostics import progress
from tqdm.autonotebook import tqdm
import intake
import fsspec
import seaborn as sns
import re
import aiohttp
import pandas as pd

# import fsspec.implementations.http as fshttp
from pelicanfs.core import OSDFFileSystem,PelicanMap

import os
# Local scratch on the EC2 instance (replaces the Casper /lustre path)
scratch_dir = os.path.expanduser("~/scratch")
os.makedirs(scratch_dir, exist_ok=True)
#
osdf_catalog       = 'https://data.gdex.ucar.edu/d850001/catalogs/cmip6-osdf-zarr.json'

#Create a LocalCluster using this EC2 instance's own CPU/RAM
from dask.distributed import Client, LocalCluster

cluster = LocalCluster(local_directory=scratch_dir)   # auto-sizes to the instance
client = Client(cluster)
client

# Scale the cluster and display cluster dashboard URL
n_workers =6
cluster.scale(n_workers)
client.wait_for_workers(n_workers = n_workers)
cluster

col = intake.open_esm_datastore(osdf_catalog)
col

[eid for eid in col.df['experiment_id'].unique() if 'ssp' in eid]

query = dict(
    experiment_id=['abrupt-4xCO2','piControl'], # pick the `abrupt-4xCO2` and `piControl` forcing experiments
    table_id='Amon',                            # choose to look at atmospheric variables (A) saved at monthly resolution (mon)
    variable_id=['tas', 'rsut','rsdt','rlut'],  # choose to look at near-surface air temperature (tas) as our variable
    member_id = 'r1i1p1f1',                     # arbitrarily pick one realization for each model (i.e. just one set of initial conditions)
)

col_subset = col.search(require_all_on=["source_id"], **query)
col_subset.df.groupby("source_id")[
    ["experiment_id", "variable_id", "table_id"]
].nunique()

def drop_all_bounds(ds):
    """Drop coordinates like 'time_bounds' from datasets,
    which can lead to issues when merging."""
    drop_vars = [vname for vname in ds.coords
                 if (('_bounds') in vname ) or ('_bnds') in vname]
    return ds.drop_vars(drop_vars)

def open_dsets(df):
    """Open datasets from cloud storage and return an xarray dataset."""
    time_coder = xr.coders.CFDatetimeCoder(use_cftime=True)
    dsets = [xr.open_zarr(fsspec.get_mapper(ds_url), consolidated=True,
                          zarr_format=2, decode_times=time_coder)
             .pipe(drop_all_bounds)
             for ds_url in df.zstore]
    try:
        return xr.merge(dsets, join='exact')
    except ValueError:
        return None

def open_delayed(df):
    """A dask.delayed wrapper around `open_dsets`.
    Allows us to open many datasets in parallel."""
    return dask.delayed(open_dsets)(df)

from collections import defaultdict

dsets = defaultdict(dict)
for group, df in col_subset.df.groupby(by=['source_id', 'experiment_id']):
    dsets[group[0]][group[1]] = open_delayed(df)

dsets_ = dask.compute(dict(dsets))[0]

def get_lat_name(ds):
    """Figure out what is the latitude coordinate for each dataset."""
    for lat_name in ['lat', 'latitude']:
        if lat_name in ds.coords:
            return lat_name
    raise RuntimeError("Couldn't find a latitude coordinate")

def global_mean(ds):
    """Return global mean of a whole dataset."""
    lat = ds[get_lat_name(ds)]
    weight = np.cos(np.deg2rad(lat))
    weight /= weight.mean()
    other_dims = set(ds.dims) - {'time'}
    return (ds * weight).mean(other_dims)

expts = ['piControl', 'abrupt-4xCO2']
expt_da = xr.DataArray(expts, dims='experiment_id',
                       coords={'experiment_id': expts})

dsets_aligned = {}

for k, v in tqdm(dsets_.items()):
    expt_dsets = v.values()
    if any([d is None for d in expt_dsets]):
        print(f"Missing experiment for {k}")
        continue

    for ds in expt_dsets:
        ds.coords['year'] = ds.time.dt.year - ds.time.dt.year[0]

    # workaround for
    # https://github.com/pydata/xarray/issues/2237#issuecomment-620961663
    dsets_ann_mean = [v[expt].pipe(global_mean).swap_dims({'time': 'year'}).drop_vars('time').coarsen(year=12).mean()
                      for expt in expts]

    # align everything with the 4xCO2 experiment
    dsets_aligned[k] = xr.concat(dsets_ann_mean, join='right',dim=expt_da)

%%time
dsets_aligned_ = dask.compute(dsets_aligned)[0]

source_ids = list(dsets_aligned_.keys())
source_da = xr.DataArray(source_ids, dims='source_id',coords={'source_id': source_ids})

big_ds = xr.concat([ds.reset_coords(drop=True) for ds in dsets_aligned_.values()],
                   dim=source_da)
big_ds

big_ds['imbalance'] = big_ds['rsdt'] - big_ds['rsut'] - big_ds['rlut']

ds_mean = big_ds[['tas', 'imbalance']].sel(experiment_id='piControl').mean(dim='year')
ds_anom = big_ds[['tas', 'imbalance']] - ds_mean

# add some metadata
ds_anom.tas.attrs['long_name'] = 'Global Mean Surface Temp Anom'
ds_anom.tas.attrs['units'] = 'K'
ds_anom.imbalance.attrs['long_name'] = 'Global Mean Radiative Imbalance'
ds_anom.imbalance.attrs['units'] = 'W m$^{-2}$'

ds_anom

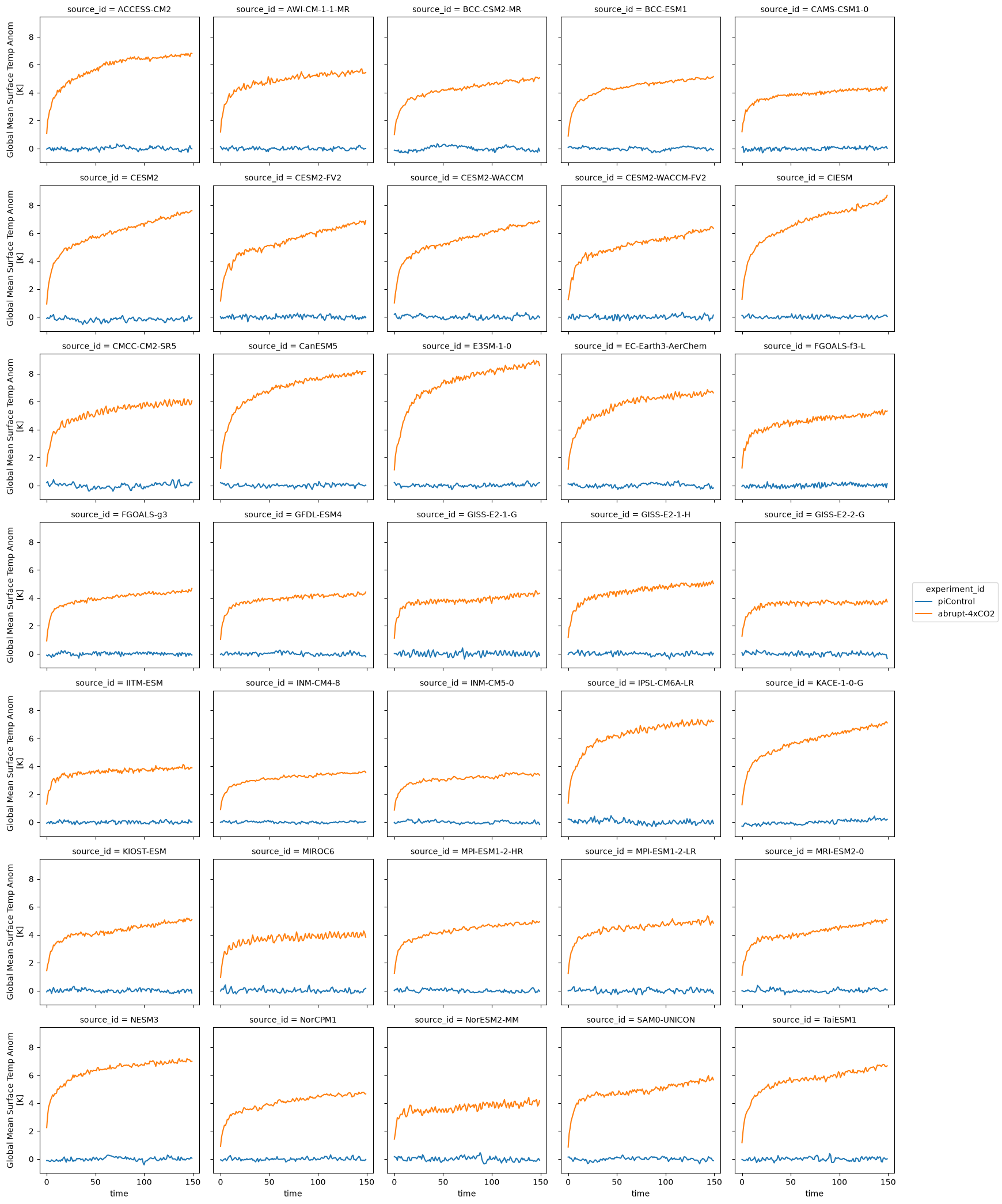

# limit to the gregory 150-year period
first_150_years = slice(0, 149)
ds_anom.tas.sel(year=first_150_years).plot.line(col='source_id', x='year', col_wrap=5)

ds_abrupt = ds_anom.sel(year=first_150_years, experiment_id='abrupt-4xCO2').reset_coords(drop=True)

def calc_ecs(ds):
    tas_1d = ds.tas.squeeze()
    imbalance_1d = ds.imbalance.squeeze()

    # Align and drop NaNs
    tas_1d, imbalance_1d = xr.align(tas_1d.dropna('year'), imbalance_1d.dropna('year'), join='inner')

    a, b = np.polyfit(tas_1d.values, imbalance_1d.values, 1)
    ecs = -0.5 * (b / a)
    return xr.DataArray(ecs, attrs={'units': 'K'})

ds_abrupt['ecs'] = ds_abrupt.groupby('source_id').map(calc_ecs)
ds_abrupt

%%time
# Convert to DataFrame
df = ds_abrupt.to_dataframe().reset_index()

# Drop NaNs
df = df.dropna(subset=['tas', 'imbalance'])

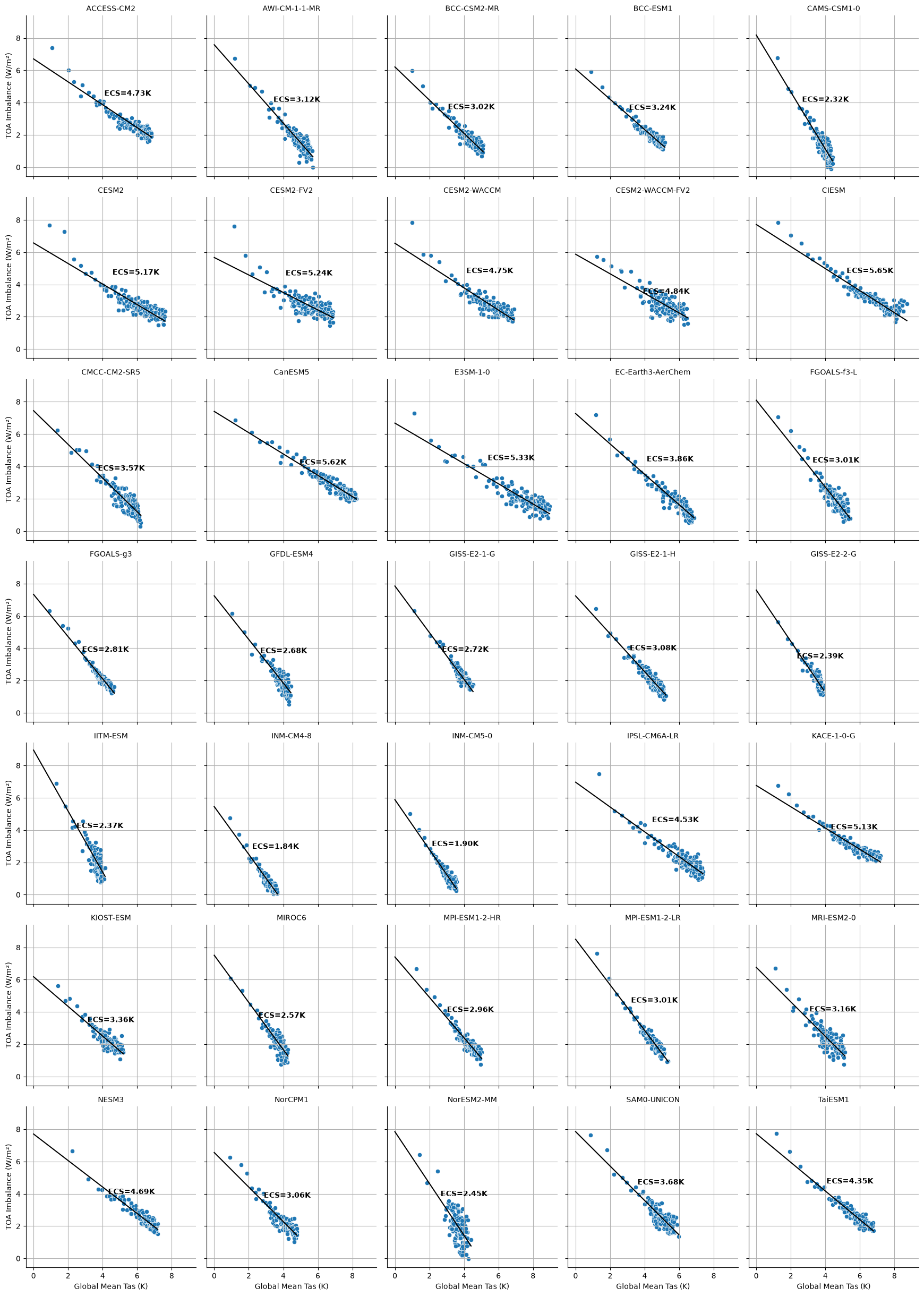

# Set up FacetGrid
g = sns.FacetGrid(df, col="source_id", col_wrap=5, height=3.5)
g.map_dataframe(sns.scatterplot, x="tas", y="imbalance")

# Add Gregory fit line and ECS text
def plot_ecs(data, color, **kwargs):
    x = data['tas'].values
    y = data['imbalance'].values
    mask = ~np.isnan(x) & ~np.isnan(y)
    x, y = x[mask], y[mask]

    if len(x) < 2:
        return  # skip underpopulated panels

    a, b = np.polyfit(x, y, 1)
    ecs = -0.5 * b / a

    x_line = np.array([0, x.max()])
    y_line = np.polyval([a, b], x_line)

    plt.plot(x_line, y_line, 'k')
    plt.text(0.6 * x.max(), 0.6 * y.max(), f'ECS={ecs:2.2f}K', fontsize=10, weight='bold')
    plt.grid(True)

g.map_dataframe(plot_ecs)

# Optional: adjust layout
g.set_titles("{col_name}")
g.set_axis_labels("Global Mean Tas (K)", "TOA Imbalance (W/m²)")
plt.tight_layout()
plt.show()

cluster.close()
