Simplified NCAR-origin benchmark

# Display output of plots directly in Notebook
import intake
import numpy as np
import pandas as pd
import xarray as xr
import re
import aiohttp
import time
from contextlib import contextmanager
import matplotlib.pyplot as plt
import requests
import time

import fsspec
import fsspec.implementations.http as fshttp
from pelicanfs.core import PelicanFileSystem, PelicanMap, OSDFFileSystem

def convert_to_speed(times,size):
    return [size/x for x in times]

https_url_500 = 'https://data.rda.ucar.edu/d084001/2024/20241109/gfs.0p25.2024110900.f000.grib2' # ~ 500 MB
https_url = 'https://data.rda.ucar.edu/d083002/grib2/2016/2016.01/fnl_20160102_00_00.grib2' # ~ 17 MB
osdf_url_500 =  'osdf:///ncar/rda/d084001/2024/20241109/gfs.0p25.2024110900.f000.grib2'
osdf_url = 'osdf:///ncar/rda/d083002/grib2/2016/2016.01/fnl_20160102_00_00.grib2'

%%timeit -r10 -n1 -o
https_file = fsspec.open(https_url)
test = https_file.open().read()

http_benchmark = _
http_benchmark.all_runs = convert_to_speed(http_benchmark.all_runs, 17)

%%timeit -r10 -n1 -o
https_file = fsspec.open(https_url_500)
test = https_file.open().read()

http_benchmark_500 = _
http_benchmark_500.all_runs = convert_to_speed(http_benchmark_500.all_runs, 500)

http_benchmark.all_runs

%%timeit -r10 -n1 -o
osdf_file = fsspec.open(osdf_url)
test = osdf_file.open().read()

osdf_benchmark = _
osdf_benchmark.all_runs = convert_to_speed(osdf_benchmark.all_runs, 17)

%%timeit -r10 -n1 -o
osdf_file = fsspec.open(osdf_url_500)
test = osdf_file.open().read()

osdf_benchmark_500 = _
osdf_benchmark_500.all_runs = convert_to_speed(osdf_benchmark_500.all_runs, 500)

reps = 11
osdf_500_first = []
for i in range(1,reps):
    new_url = osdf_url_500.replace('f000','f'+f'{i*3}'.zfill(3))
    print(new_url)
    start = time.time()
    osdf_file = fsspec.open(new_url)
    test = osdf_file.open().read()
    end = time.time()
    osdf_500_first.append(end-start)
    print(end-start)

osdf_500_first = convert_to_speed(osdf_500_first, 500)

reps = 12
osdf_20_first = []
for i in range(2,reps):
    new_url = osdf_url.replace('20160101','201601'+f'{i}'.zfill(2))
    print(new_url)
    start = time.time()
    osdf_file = fsspec.open(new_url)
    #test = osdf_file.open().read()
    end = time.time()
    osdf_20_first.append(end-start)

osdf_20_first = convert_to_speed(osdf_20_first, 17)

ds_osdf_1Mb  = ds_osdf.isel(time=0).isel(member_id =1+ np.arange(3))
ds_https_1Mb = ds_https.isel(time=0).isel(member_id =1+ np.arange(3))
ds_osdf_1Mb

ds_osdf_10Mb  = ds_osdf.isel(member_id =4).isel(time=np.arange(24))
ds_https_10Mb = ds_https.isel(member_id =4).isel(time=np.arange(24))
ds_osdf_10Mb

ds_osdf_100Mb  = ds_osdf.isel(member_id =5).isel(time=np.arange(238))
ds_https_100Mb = ds_https.isel(member_id =5).isel(time=np.arange(238))
ds_osdf_100Mb

ds_osdf_1Gb  = ds_osdf.isel(member_id  = 6 + np.arange(6)).isel(time = np.arange(410))
ds_https_1Gb = ds_https.isel(member_id = 6 + np.arange(6)).isel(time = np.arange(410))
ds_osdf_1Gb

ds_osdf_10Gb  = ds_osdf.isel(member_id  = 12 + np.arange(52))
ds_https_10Gb = ds_https.isel(member_id = 12 + np.arange(52))
ds_osdf_10Gb

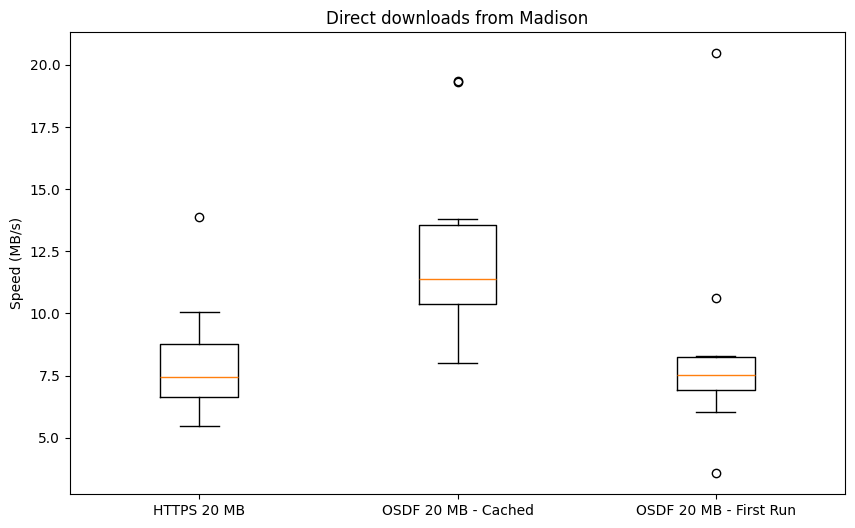

fig, ax = plt.subplots(figsize=(10, 6))
ax.set_title("Direct downloads from Madison")
ax.set_xticklabels(['HTTPS 20 MB','OSDF 20 MB - Cached', 'OSDF 20 MB - First Run'])
ax.set_ylabel('Speed (MB/s)')
ax.boxplot([http_benchmark.all_runs,osdf_benchmark.all_runs,osdf_20_first])
ax.plot()

fig.savefig('test.png')

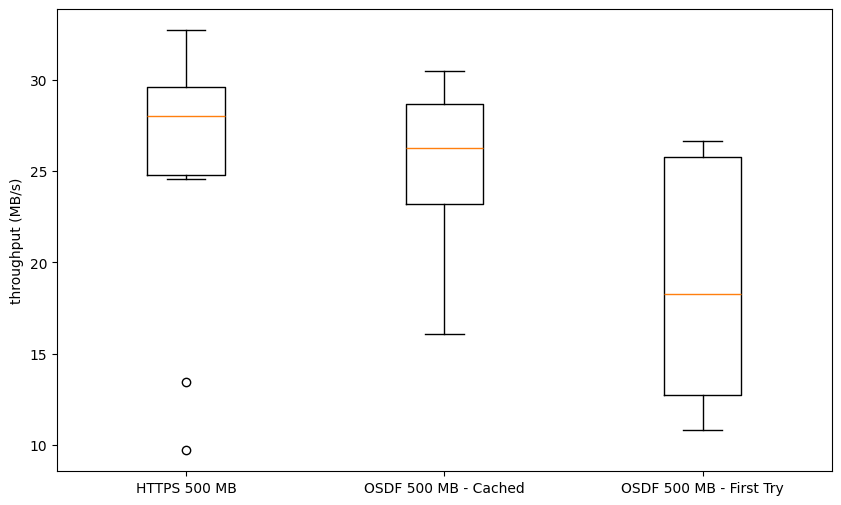

fig, ax = plt.subplots(figsize=(10, 6))
ax.set_xticklabels(['HTTPS 500 MB','OSDF 500 MB - Cached','OSDF 500 MB - First Try'])
ax.set_ylabel('Speed (MB/s)')
ax.set_title("Direct downloads from Madison")
ax.boxplot([http_benchmark_500.all_runs,osdf_benchmark_500.all_runs,osdf_500_first])
ax.plot()

http_benchmark_500.all_runs
