Timeseries.quickview() computes and lays out a standard panel set, which is usually
the first thing you want when looking at a new run.
import os
import numpy as np
import xarray as xr
import matplotlib.pyplot as plt
import nc_time_axis # registers the cftime axis converter for matplotlib
import x4c
x4c.set_style('journal')
# after set_style: it resets rcParams from matplotlibrc defaults, which includes the
# backend, so assert the inline backend last or figures are never captured
%matplotlib inline
# The tutorial runs against a reduced copy of a real CESM case. It is published as a
# GitHub Release asset rather than committed, so the first call downloads it into
# ~/.cache/x4c (override with $X4C_CACHE_DIR) and later calls reuse it. Set
# $X4C_SAMPLE_DIR to point at a copy you already have.
case_dir = x4c.fetch_sample_data(case='cesm1', verbose=False)
casename = os.path.basename(case_dir)
print('x4c', x4c.__version__)x4c 2026.6.11
case = x4c.Timeseries(case_dir, grid_dict={'atm': 'ne16np4', 'ocn': 'g16'}, cesm_ver=1)>>> case.root_dir: /glade/u/home/fengzhu/.cache/x4c/sample_data/cesm1_sample_data/b.e13.B1850C5.ne16_g16.icesm131_d18O_fixer.Miocene.3xCO2.005
>>> case.path_pattern: comp/proc/tseries/*/casename.hstr.vn.timespan.nc
>>> case.grid_dict: {'atm': 'ne16np4', 'ocn': 'g16', 'lnd': 'ne16np4', 'rof': 'ne16np4', 'ice': 'g16'}
>>> case.casename: b.e13.B1850C5.ne16_g16.icesm131_d18O_fixer.Miocene.3xCO2.005
>>> case.paths["atm"]["cam.h0"] created
>>> case.paths["ocn"]["pop.h"] created
>>> case.paths["lnd"]["clm2.h0"] created
>>> case.paths["ice"]["cice.h"] created
>>> case.vns["atm"]["cam.h0"] created
>>> case.vns["ocn"]["pop.h"] created
>>> case.vns["lnd"]["clm2.h0"] created
>>> case.vns["ice"]["cice.h"] created

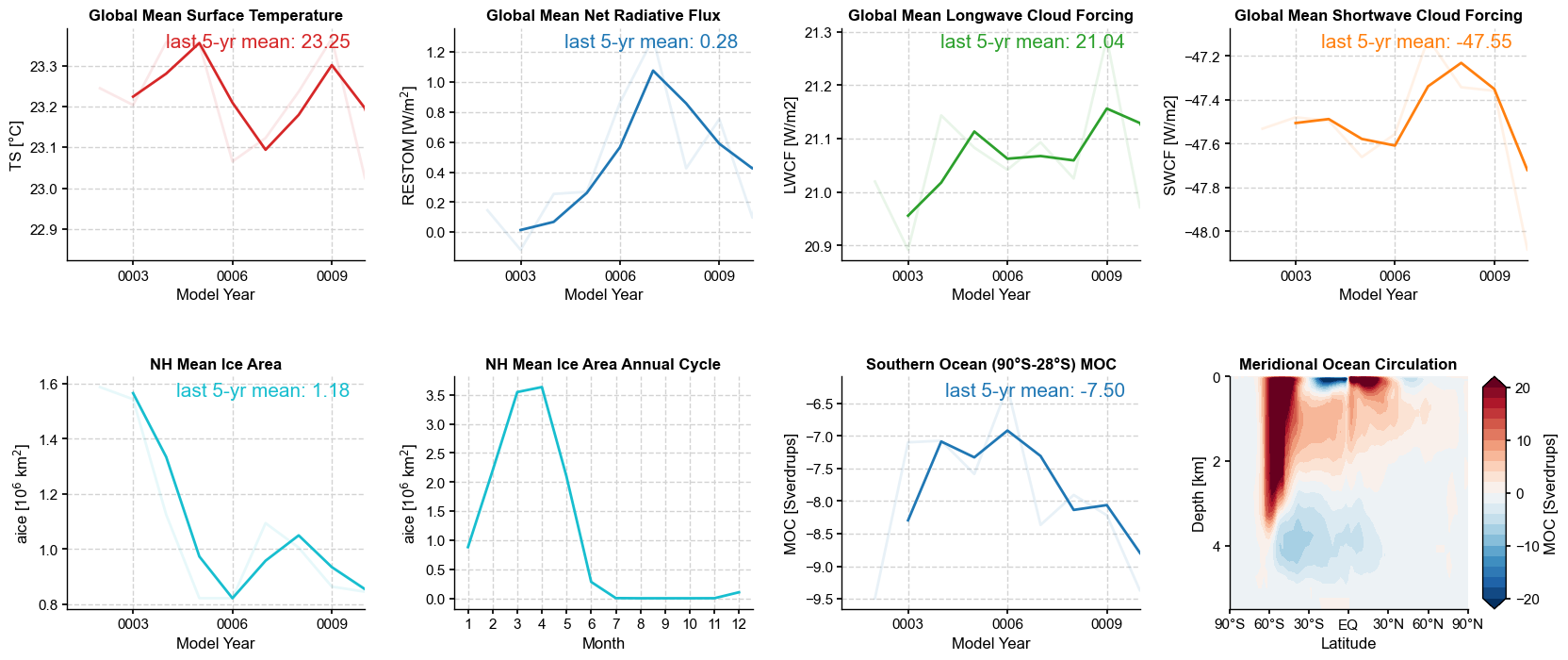

The default panel set¶
With no arguments beyond a timespan, quickview computes eight standard diagnostics:
global-mean surface temperature, net radiative flux at the top of atmosphere, the
longwave and shortwave cloud forcings, NH sea-ice area and its annual cycle, the
Southern Ocean overturning minimum, and the meridional overturning streamfunction.
Each panel is a spell, so nothing here is special-cased — it is the same machinery as
case.calc().
fig, ax = case.quickview(timespan=(1, 10), roll_int=2, stat_period=-5)
x4c.showfig(fig)>>> Plotting 8 subplots
>>> nrow = 2, ncol = np.int64(4)
>>> Spell `TS:ann:gm` is already calculated and the calculation is skipped.
>>> Spell `RESTOM:ann:gm` is already calculated and the calculation is skipped.
>>> Spell `LWCF:ann:gm` is already calculated and the calculation is skipped.
>>> Spell `SWCF:ann:gm` is already calculated and the calculation is skipped.
>>> Spell `ICEFRAC:ann:nhs` is already calculated and the calculation is skipped.
>>> Spell `ICEFRAC:climo:nhs` is already calculated and the calculation is skipped.
>>> Spell `MOC:ann:somin` is already calculated and the calculation is skipped.
>>> Spell `MOC:ann:yz` is already calculated and the calculation is skipped.
>>> Plotting GMST
>>> Plotting GMRESTOM
>>> Plotting GMLWCF
>>> Plotting GMSWCF
>>> Plotting NHICEFRAC
>>> Plotting NHICEFRAC_clim
>>> Plotting SOMOC
>>> Plotting MOC
ax is a dict keyed by panel name, so anything matplotlib can do to an axis is
available afterwards.
print('panels:', list(ax))panels: ['GMST', 'GMRESTOM', 'GMLWCF', 'GMSWCF', 'NHICEFRAC', 'NHICEFRAC_clim', 'SOMOC', 'MOC']
somin: the Southern Ocean overturning minimum¶
The SOMOC panel uses .x.somin, which takes the minimum of a latitude-by-depth field
over 90S-28S. It is a common single-number summary of Southern Ocean ventilation.
somoc = case.calc('MOC:ann:somin', timespan=(1, 10), verbose=False)
print('Southern Ocean MOC minimum (Sv):')
print(np.round(somoc.values, 3))>>> Spell `MOC:ann:somin` is already calculated and the calculation is skipped.
Southern Ocean MOC minimum (Sv):
[-9.493 -7.098 -7.073 -7.584 -6.249 -8.366 -7.906 -8.218 -9.373 -9.421]

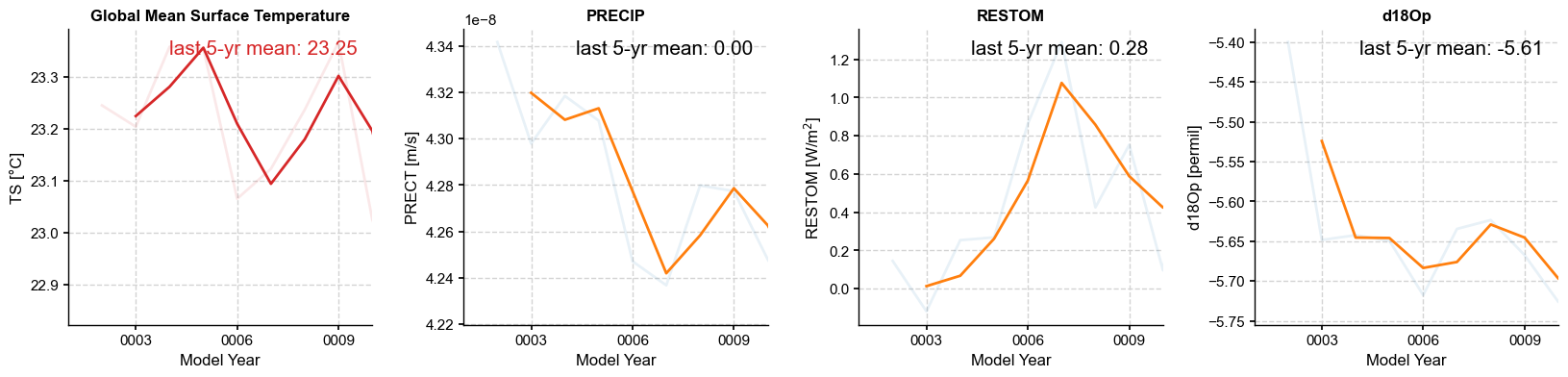

A custom panel set¶
Pass your own spells dict to replace the defaults. The layout is derived from the
keys, so you do not have to supply ax_loc as well.
spells = {
'GMST': 'TS:ann:gm',
'PRECIP': 'PRECT:ann:gm',
'RESTOM': 'RESTOM:ann:gm',
'd18Op': 'd18Op:ann:gm',
}
fig, ax = case.quickview(spells=spells, timespan=(1, 10), roll_int=2, stat_period=-5)
x4c.showfig(fig)>>> Plotting 4 subplots
>>> nrow = 1, ncol = np.int64(4)
>>> Spell `TS:ann:gm` is already calculated and the calculation is skipped.
>>> Spell `PRECT:ann:gm` is already calculated and the calculation is skipped.
>>> Spell `RESTOM:ann:gm` is already calculated and the calculation is skipped.
>>> Spell `d18Op:ann:gm` is already calculated and the calculation is skipped.
>>> Plotting GMST
>>> Plotting PRECIP
>>> Plotting RESTOM
>>> Plotting d18Op
roll_int sets the width of the smoothing line drawn over each timeseries. It is
clamped to the length of the record, so a short run does not fail — the default (50
years) is longer than this ten-year sample.
stat_period is not clamped: it is the negative time index passed straight to
isel(time=slice(stat_period,)), and the panel label always reads last {abs(stat_period)}-yr mean. On a record shorter than 50 years the default still
“works” (the slice just returns everything available), but the label would claim a
50-year mean over a 10-year sample, so both calls above pass stat_period=-10 to keep
the label honest.
Colormap inference¶
When you do not name a colormap, x4c picks one from the variable’s long_name. That
is why a temperature map comes out diverging and a precipitation map comes out
BrBG without being told.
from x4c.visual import infer_cmap
for long_name in ['Surface Temperature', 'Total precipitation rate',
'Sea Surface Salinity', 'Meridional Ocean Circulation',
'Mixed Layer Depth', 'something unrecognised']:
da = xr.DataArray([0.0])
da.attrs['long_name'] = long_name
print(f' {long_name:32s} -> {infer_cmap(da)}') Surface Temperature -> RdBu_r
Total precipitation rate -> BrBG
Sea Surface Salinity -> PiYG
Meridional Ocean Circulation -> RdBu_r
Mixed Layer Depth -> GnBu
something unrecognised -> viridis
