Climatological Average using GeoCAT comp

Access CESM2 data from GDEX and compute climatology average¶

Table of Contents¶

Introduction¶

You need to install the geocat-comp package >= v2026.03.0 to run this notebook

import geocat.comp as gc
import intake
import numpy as np
import pandas as pd
import xarray as xr
import re
import aiohttp
import dask
from dask_jobqueue import PBSCluster
from dask.distributed import Client, LocalCluster
import os
import shutil

/glade/u/home/harshah/.conda/envs/osdf/lib/python3.11/site-packages/tqdm/auto.py:21: TqdmWarning: IProgress not found. Please update jupyter and ipywidgets. See https://ipywidgets.readthedocs.io/en/stable/user_install.html
  from .autonotebook import tqdm as notebook_tqdm

year0  = '1991'
year1  = '2020'
year0_str = str(year0)
year1_str = str(year1)

#Boulder coordinates
boulder_lat = 40.0150
boulder_lon = (360-105.2705)%360
print(boulder_lat,boulder_lon)

40.015 254.7295

# Set up your sratch folder path
username       = os.environ["USER"]
glade_scratch  = "/glade/derecho/scratch/" + username
print(glade_scratch)
#

/glade/derecho/scratch/harshah

# Auto-select the intake-ESM catalog: POSIX where /gdex/data is mounted (NCAR
# HPC, CIRRUS Binder), otherwise the OSDF catalog over the network.
posix_catalog = "/gdex/data/d010092/catalogs/d010092-posix.json"
catalog_url = posix_catalog if os.path.exists(posix_catalog) else "https://osdata.gdex.ucar.edu/d010092/catalogs/d010092-osdf.json"
print(catalog_url)

Set up Dask Cluster¶

Setting up a dask cluster
Since we plan to run this noteook on NCAR’s HPC i.e, Casper, we will use a PBS Scheduler

def get_pbs_cluster(n_workers=5):
    """PBSCluster on NCAR HPC (Casper/Derecho)."""
    scratch = f"/glade/derecho/scratch/{os.environ.get('USER', '')}"
    cluster = PBSCluster(
        job_name        = "dask-wk26-hpc",
        cores           = 1,
        memory          = "8GiB",
        processes       = 1,
        local_directory = f"{scratch}/dask/spill/",
        log_directory   = f"{scratch}/dask/logs/",
        resource_spec   = "select=1:ncpus=1:mem=8GB",
        queue           = "casper",
        walltime        = "5:00:00",
        interface       = "ext",
    )
    cluster.scale(n_workers)
    return cluster


def get_local_cluster():
    """LocalCluster for a laptop or a CIRRUS Binder pod (no PBS scheduler)."""
    return LocalCluster()

# Auto-detect the environment: a `qsub` on PATH means a PBS scheduler is present
# (Casper/Derecho) -> PBSCluster; otherwise fall back to LocalCluster (CIRRUS
# Binder or a laptop). No editing needed to move between environments.
on_hpc  = bool(shutil.which("qsub"))
cluster = get_pbs_cluster() if on_hpc else get_local_cluster()
client  = Client(cluster)
if on_hpc:
    client.wait_for_workers(n_workers=5)

print(f"Detected {'NCAR HPC -> PBSCluster' if on_hpc else 'no PBS -> LocalCluster'}")
cluster

Data Loading¶

Load CESM2 temperature data and apply geocat-comp’s climatology average

osdf_catalog = intake.open_esm_datastore(catalog_url)
osdf_catalog

Loading...

osdf_catalog.df['path'].head().values

<ArrowExtensionArray>
[ 'osdf:///ncar-gdex/d010092/atm/daily/cesm2LE-historical-cmip6-FLNS.zarr',
 'osdf:///ncar-gdex/d010092/atm/daily/cesm2LE-historical-cmip6-FLNSC.zarr',
  'osdf:///ncar-gdex/d010092/atm/daily/cesm2LE-historical-cmip6-FLUT.zarr',
  'osdf:///ncar-gdex/d010092/atm/daily/cesm2LE-historical-cmip6-FSNS.zarr',
 'osdf:///ncar-gdex/d010092/atm/daily/cesm2LE-historical-cmip6-FSNSC.zarr']
Length: 5, dtype: large_string[pyarrow]

osdf_catalog_temp = osdf_catalog.search(variable ='TREFHT', frequency ='daily',forcing_variant='cmip6')
osdf_catalog_temp

Loading...

%%time
dsets = osdf_catalog_temp.to_dataset_dict(xarray_open_kwargs={'engine':'zarr','backend_kwargs':{'consolidated': True,'zarr_format': 2}})


--> The keys in the returned dictionary of datasets are constructed as follows:
	'component.experiment.frequency.forcing_variant'

Loading...

CPU times: user 554 ms, sys: 46.6 ms, total: 601 ms
Wall time: 3.55 s

%%time
dsets.keys()

CPU times: user 3 μs, sys: 0 ns, total: 3 μs
Wall time: 6.44 μs

dict_keys(['atm.historical.daily.cmip6', 'atm.ssp370.daily.cmip6'])

historical_cmip6 = dsets['atm.historical.daily.cmip6']
historical_cmip6 = historical_cmip6.TREFHT
historical_cmip6

Loading...

Data Analysis¶

To illustrate how the function works select small subset¶

Choose data between year0 and year1
Choose data from only one member
Choose data for Boulder

%%time
historical_cmip6_30years = historical_cmip6.isel(member_id=0).sel(lat =boulder_lat,lon=boulder_lon,method='nearest').\
                             sel(time = slice(f'{year0_str}-01-01', f'{year1_str}-12-31'))
historical_cmip6_30years

CPU times: user 66.7 ms, sys: 5.38 ms, total: 72.1 ms
Wall time: 85 ms

Loading...

%%time

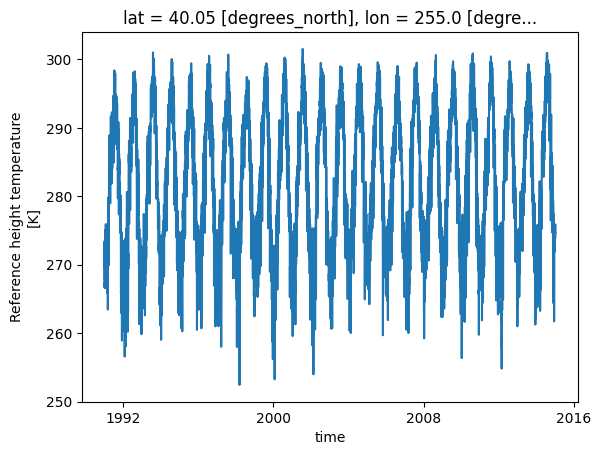

# Plot raw data
historical_cmip6_30years.plot()

CPU times: user 181 ms, sys: 12.5 ms, total: 194 ms
Wall time: 6.22 s

# historical_cmip6_30years.values

%%time
hist_cmip6_monthly = gc.climatology_average(historical_cmip6_30years,freq='month')
hist_cmip6_monthly

CPU times: user 107 ms, sys: 6.7 ms, total: 114 ms
Wall time: 197 ms

Loading...

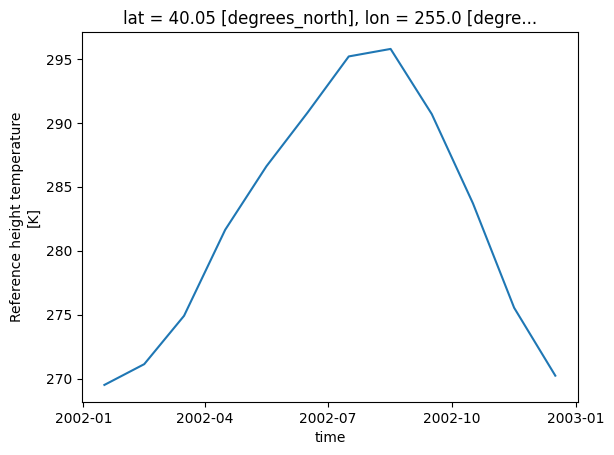

%%time
hist_cmip6_monthly.plot()

CPU times: user 125 ms, sys: 11.2 ms, total: 137 ms
Wall time: 3.6 s

cluster.close()
