Sea Surface Temperature data from MESACLIP historical run

#campaign_store_posix = "/gdex/data/d651007/kerchunk/b.e13.BHISTC5.ne120_t12.cesm-ihesp-hires1.0.46-1920-2005.010.ocn.day_1.parq"
campaign_store_remote = "https://data.gdex.ucar.edu/d651007/kerchunk/b.e13.BHISTC5.ne120_t12.cesm-ihesp-hires1.0.46-1920-2005.010.ocn.day_1-remote-https.parq"

import os
import psutil
# check the memory usage of the current notebook process only
process = psutil.Process(os.getpid())
mem_info = process.memory_info()
print(f"Notebook process memory usage: {mem_info.rss / (1024 ** 3):.2f} GB (RSS)")

import xarray as xr
ds = xr.open_dataset(campaign_store_remote, engine="kerchunk",decode_timedelta=False, chunks={})

import os
import psutil
# check the memory usage of the current notebook process only
process = psutil.Process(os.getpid())
mem_info = process.memory_info()
print(f"Notebook process memory usage: {mem_info.rss / (1024 ** 3):.2f} GB (RSS)")

print(ds.nbytes / 1024**4, "TB")

da_sst = ds['SST'].isel(time=1030).load()

# the grid is assumed unchanged and can be loaded in the first time step and reused for all time steps
da_lat = ds['TLAT'].isel(time=0).load()
da_lon = ds['TLONG'].isel(time=0).load()

import os
import psutil
# check the memory usage of the current notebook process only
process = psutil.Process(os.getpid())
mem_info = process.memory_info()
print(f"Notebook process memory usage: {mem_info.rss / (1024 ** 3):.2f} GB (RSS)")

ds_sst = xr.Dataset()
ds_sst['SST'] = da_sst
ds_sst['TLONG']= da_lon
ds_sst['TLAT'] = da_lat

ds_sst = ds_sst.expand_dims('time')

ds_sst

ds_sst['SST'] = ds_sst['SST'].where(ds_sst['SST'].compute()>-1)

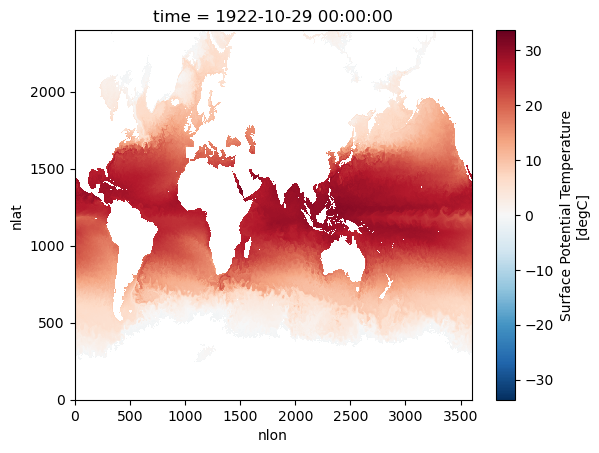

ds_sst['SST'].plot()

import os
import psutil
# check the memory usage of the current notebook process only
process = psutil.Process(os.getpid())
mem_info = process.memory_info()
print(f"Notebook process memory usage: {mem_info.rss / (1024 ** 3):.2f} GB (RSS)")

import fsspec
import xarray as xr

# the netcdf file is available to download at this URL, but xarray cannot read it directly.
# So we use fsspec to open the file as a binary stream through https, and then pass that stream to xarray.
# This works because the xarray can read from file-like objects created by the fsspec library.
wgtfile_url = "https://data.gdex.ucar.edu/d651007/remap/POP_tx0.1v2_to_latlon_1x1_0E_bilinear_20251113.nc"
f = fsspec.open(wgtfile_url, mode="rb").open()
dsw = xr.open_dataset(f)

import numpy as np
import scipy.sparse as sps
from netCDF4 import default_fillvals

def remap_pop(ds, dsw, varlst):
    """Remap variables from the POP curvilinear ocean grid to a regular lat/lon grid.

    Caution!!!
    current version of ds assume the time dimension exists. (sometime xarray .isel(time=0) will drop the time dimension)

    Uses precomputed ESMF bilinear weights (dsw) via sparse matrix multiplication,
    then corrects remapped values for partial land coverage near coastlines.

    Parameters
    ----------
    ds : xarray.Dataset
        xarray.Dataset on the source POP grid (nlat x nlon)
    dsw : xarray.Dataset
        xarray.Dataset containing ESMF regridding weights (row, col, S)
    varlst : list
        list of variable names in ds to remap

    Returns
    -------
    dso : xarray.Dataset
        xarray.Dataset on a regular lat/lon grid
    """
    # Initialize the output dataset with NaN
    dso = xr.full_like(ds.drop_dims('nlat'), np.nan)

    # Extract source and destination grid coordinates from the weight file
    # srclon/srclat are kept for reference but not used in the sparse multiply
    srclon = dsw.xc_a.values.reshape([dsw.src_grid_dims[1].values, dsw.src_grid_dims[0].values])
    srclat = dsw.yc_a.values.reshape([dsw.src_grid_dims[1].values, dsw.src_grid_dims[0].values])
    dstlon = dsw.xc_b.values.reshape([dsw.dst_grid_dims[1].values, dsw.dst_grid_dims[0].values])[0]
    dstlat = dsw.yc_b.values.reshape([dsw.dst_grid_dims[1].values, dsw.dst_grid_dims[0].values])[:,0]

    # Build the sparse weight matrix (n_dst × n_src); ESMF row/col indices are 1-based
    weights = sps.coo_matrix((dsw.S, (dsw.row-1, dsw.col-1)), shape=[dsw.sizes['n_b'], dsw.sizes['n_a']])

    for varname in varlst:
        shape_in = ds[varname].shape
        shape_out = dsw.dst_grid_dims.values[1], dsw.dst_grid_dims.values[0]

        # Derive the ocean/land mask from the first time slice (True = land/missing)
        srcmask = np.isnan(ds[varname].isel(time=0))

        # Flatten source data to (n_time, n_src) for the sparse multiply; NaNs replaced with 0
        srcvar_flat = ds.fillna(0)[varname].values.reshape(-1, shape_in[-2]*shape_in[-1])
        # Flatten the valid-ocean boolean mask to (n_src,) (True = ocean)
        srcmask_flat = np.invert(srcmask).values.reshape(shape_in[-2]*shape_in[-1])

        # Apply bilinear weights to the data → (n_time, n_dst)
        remapped_flat = weights.dot(srcvar_flat.T).T
        # Apply the same weights to the mask to track fractional ocean coverage per destination cell
        remapped_mask_flat = weights.dot(srcmask_flat.T).T

        remapped = remapped_flat.reshape([*shape_in[0:-2], shape_out[0], shape_out[1]])
        remapped_mask = remapped_mask_flat.reshape([shape_out[0], shape_out[1]])

        # Clamp zero-coverage cells to 1 to avoid division by zero for fully-land destinations
        remapped_mask[np.where(remapped_mask==0)] = 1
        # Normalize by fractional ocean coverage to remove land contamination near coastlines
        remapped = remapped / remapped_mask[None,:,:]
        # Mark fully-land destination cells as the standard fill value
        remapped[np.where(remapped==0)] = default_fillvals['f8']

        # Rebuild dimension and coordinate mappings for the output DataArray
        dimlst = list(ds[varname].dims[0:-2])
        dims={}
        coords={}
        for it in dimlst:
            dims[it] = dso.dims[it]
            coords[it] = dso.coords[it]
        dims['lat'] = int(dsw.dst_grid_dims[1])
        dims['lon'] = int(dsw.dst_grid_dims[0])
        coords['lat'] = (['lat'], dstlat)
        coords['lon'] = (['lon'], dstlon)
        remapped = xr.DataArray(remapped, coords=coords, dims=dims, attrs=ds[varname].attrs)
        remapped['lat'].attrs = {'units':'degrees_north'}
        remapped['lon'].attrs = {'units':'degrees_east'}
        dso = xr.merge([dso, remapped.to_dataset(name=varname)])
    return dso

%%time
dso = remap_pop(ds_sst, dsw, ['SST'])

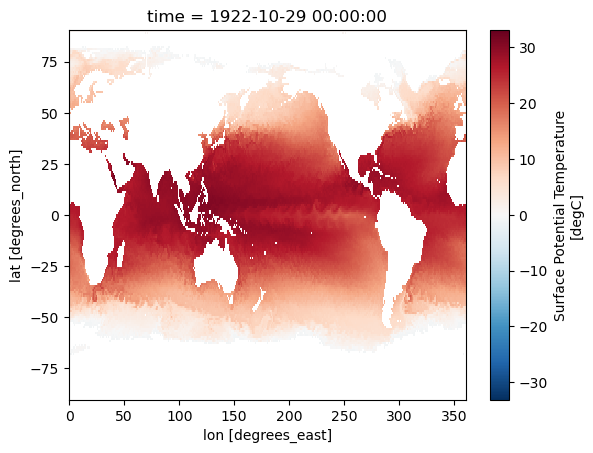

dso['SST'].where(dso['SST']!=default_fillvals['f8']).isel(time=0).plot()

# Reorder the longitude to be in the range of [-180, 180] for rioxarray and folium compatibility
dso = dso.assign_coords(lon=(((dso.lon + 180) % 360) - 180)).sortby("lon")

# Use the .rio accessor to set spatial dimensions and CRS for reprojection to Web Mercator (EPSG:3857)
import rioxarray  # must import to activate .rio accessor
da = dso["SST"]

# Check actual dimension names
lon_dim = [d for d in da.dims if "lon" in d.lower() or d.lower() == "x"][0]
lat_dim = [d for d in da.dims if "lat" in d.lower() or d.lower() == "y"][0]

# Set spatial dims
da = da.rio.set_spatial_dims(x_dim=lon_dim, y_dim=lat_dim)

# Assigne the original CRS (original data is in WGS84 lat/lon)
da = da.rio.write_crs("EPSG:4326")

# Verify CRS was set
print("original CRS:", da.rio.crs)

# Now reproject
da_sst_merc = da.rio.reproject("EPSG:3857",shape=(da.shape[-2], da.shape[-1]))

import matplotlib.pyplot as plt
import numpy as np
import folium
import branca.colormap as cm
from branca.element import Template, MacroElement

# figure setting
colormap_name = 'RdBu_r'              # colormap name in matplotlib colormap blue to red
n_increments = 33                     # number of increment in the colormap
varmin = 0                           # minimum value on the colorbar
varmax = 32                            # maximum value on the colorbar
varname = 'SST (sea surface temperature)'        # legend show on map
da_regrid_data = da_sst_merc.isel(time=0) # Xarray DataArray object used to plot the map
da_regrid_data = da_regrid_data.where(da_regrid_data!=default_fillvals['f8'], np.nan) # make sure NaN values are properly set for plotting


# setup the colormap from matplotlib
picked_cm = plt.get_cmap(colormap_name, n_increments)
# normalized data (0,1) for colormap to applied on
normed_data = (da_regrid_data - varmin) / (varmax - varmin)
colored_data = picked_cm(normed_data.data)

# folium map base map
fm = folium.Map(
    location=[float(dso.lat.mean().data), float(dso.lon.mean().data)],
    tiles="Cartodb Positron",
    zoom_start=2
)

folium.raster_layers.ImageOverlay(
    image=colored_data,
    bounds=[[float(dso.lat.min().data),
             float(dso.lon.min().data)],
            [float(dso.lat.max().data),
             float(dso.lon.max().data)]],
    mercator_project=False,   # applied data to web mercator projection (essential)
    origin="upper",          # plot data from lower bound (essential)
    opacity=0.7,
    zindex=1
).add_to(fm)


tick_inc = np.abs(varmax-varmin)/10.

# start constructing the branca colormap to put on folium map
index_list = range(0,n_increments)
cmap_list = picked_cm(range(n_increments)).tolist()
# cmap_foliump = cm.LinearColormap(
#     colors=cmap_list,
#     vmin=varmin,
#     vmax=varmax,
#     caption='fcmap',
#     max_labels=n_increments+1,
#     tick_labels=list(np.arange(varmin,varmax+tick_inc*0.000001,tick_inc))
# ).to_step(n_increments)

# Replace the complex colormap with this
cmap_foliump = cm.LinearColormap(
    colors=cmap_list,
    vmin=varmin,
    vmax=varmax,
    caption=varname
)


# Add colormap to map
cmap_foliump.add_to(fm)
# Add title to map
title_html = '''
             <h1 align="center" style="font-size:30px"><b>{} {}</b></h1>
             '''.format(varname, "From MESACLIP-HIST")
fm.get_root().html.add_child(folium.Element(title_html))

fm
