Unstructured-grid access via UXarray

Test UX array¶

origin:ncar-posix platform:casper task:visualization level:advanced

Data Access¶

import warnings
warnings.filterwarnings("ignore")
import intake
import numpy as np
import pandas as pd
import xarray as xr
import seaborn as sns
import matplotlib.pyplot as plt
import os
import uxarray

import dask
from dask_jobqueue import PBSCluster
from dask.distributed import Client
from dask.distributed import performance_report

# cat_url     = '/gdex/data/d616000/catalogs/d616000_catalog.json' #POSIX access on NCAR
# print(cat_url)

/glade/campaign/collections/rda/data/d616000/catalogs/d616000_catalog.json

# Get your scratch folder
scratch = os.environ.get("SCRATCH") or getuser()
print(scratch)

/glade/derecho/scratch/harshah

Create a PBS cluster¶

# Create a PBS cluster object
cluster = PBSCluster(
    job_name = 'wcrp-hackathon25',
    account= 'UCIS0005',
    cores = 1,
    memory = '10GiB',
    processes = 1,
    local_directory = scratch,
    log_directory = scratch,
    resource_spec = 'select=1:ncpus=1:mem=10GB',
    queue = 'casper',
    walltime = '5:00:00',
    interface = 'ext'
)

client = Client(cluster)

# Scale the cluster and display cluster dashboard URL
n_workers = 5
cluster.scale(n_workers)
client.wait_for_workers(n_workers = n_workers)
cluster

Load ... data and open with uxarray¶

cat_url = "https://digital-earths-global-hackathon.github.io/catalog/catalog.yaml"
cat_master = intake.open_catalog(cat_url)
cat_master

# Hackathon data catalogs
cat_url = "https://digital-earths-global-hackathon.github.io/catalog/catalog.yaml"
cat = intake.open_catalog(cat_url).NCAR
# model_run = cat.icon_ngc4008
cat

cat

list(cat)

['CERES_EBAF',
 'ERA5',
 'IR_IMERG',
 'JRA3Q',
 'MERRA2',
 'arp-gem-1p3km',
 'arp-gem-2p6km',
 'casesm2_10km_nocumulus',
 'ew_dyamond3_2D',
 'icon_d3hp003',
 'icon_d3hp003aug',
 'icon_d3hp003feb',
 'icon_ngc4008',
 'ifs_tco3999-ng5_deepoff',
 'ifs_tco3999-ng5_rcbmf',
 'ifs_tco3999-ng5_rcbmf_cf',
 'ifs_tco3999_rcbmf',
 'mpas_dyamond1',
 'mpas_dyamond2',
 'mpas_dyamond3',
 'nicam_220m_test',
 'nicam_gl11',
 'scream-dkrz',
 'scream2D_hrly',
 'scream_lnd',
 'scream_ne120',
 'tracking-d3hp003',
 'um_Africa_km4p4_RAL3P3_n1280_GAL9_nest',
 'um_CTC_km4p4_RAL3P3_n1280_GAL9_nest',
 'um_SAmer_km4p4_RAL3P3_n1280_GAL9_nest',
 'um_SEA_km4p4_RAL3P3_n1280_GAL9_nest',
 'um_glm_n1280_CoMA9_TBv1p2',
 'um_glm_n1280_GAL9',
 'um_glm_n2560_RAL3p3',
 'wrf_conus',
 'wrf_samerica']

col.df turns the catalog object into a pandas dataframe!
(Actually, it accesses the dataframe attribute of the catalog)

Select data and plot¶

What if you don’t know the variable names ?¶

Use pandas logic to print out the short_name and long_name

We notice that long_name is not available for some variables like ‘V’
In such cases, please look at the dataset documentation for additional information: https://gdex.ucar.edu/datasets/d616000/documentation/#

Temperature¶

Plot temperature for a random date

The data is organized in (virtual) zarr stores with one year’s worth of data in one file
Select a year. This is done by selcting the start time to be Jan 1st of that year or the end time to be Dec 31st of the same year
This also means that if you want to request data for other days, say Oct 1 for the year YYYY, you first have to load the data for one year YYYY and then select the data for that particular day. This example is discussed below.

Load data into xarray¶

# Load catalog entries for subset into a dictionary of xarray datasets, and open the first one.
dsets = cat_temp_subset.to_dataset_dict(zarr_kwargs={"consolidated": True})
print(f"\nDataset dictionary keys:\n {dsets.keys()}")


--> The keys in the returned dictionary of datasets are constructed as follows:
	'variable.short_name'


Dataset dictionary keys:
 dict_keys(['T2.T2'])

# Load the first dataset and display a summary.
dataset_key = list(dsets.keys())[0]
# store_name = dataset_key + ".zarr"
print(dsets.keys())
ds = dsets[dataset_key]
ds = ds.T2
ds

dict_keys(['T2.T2'])

%%time
desired_date = "2020-10-01"
ds_subset = ds.sel(Time=desired_date,method='nearest')
ds_subset

CPU times: user 7.25 ms, sys: 4.22 ms, total: 11.5 ms
Wall time: 20.8 ms

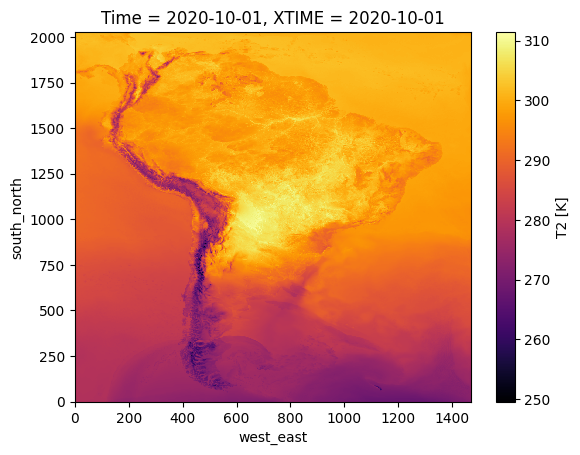

%%time
ds_subset.plot(cmap='inferno')

CPU times: user 23.8 s, sys: 17.5 s, total: 41.3 s
Wall time: 3min 14s

cluster.close()
